JS330 NLC JCB excavator specs & Dimensions (2010 - 2017)

Model rating
6,60 / 10

JCB JS330 NLC is a crawler excavator manufactured from 2010 to 2017. It has a weight of 32.03 tons and a track width of 600 mm. Th…

JCB JS330 NLC is a crawler excavator manufactured from 2010 to 2017. It has a weight of 32.03 tons and a track width of 600 mm. The transport dimensions are 11.1 meters in length, 2.99 meters in width, and 3.36 meters in height. The machine features a tear-out force of 151.52 kN, a dredging depth of 7.39 meters, and a maximum horizontal reach of 11.13 meters.

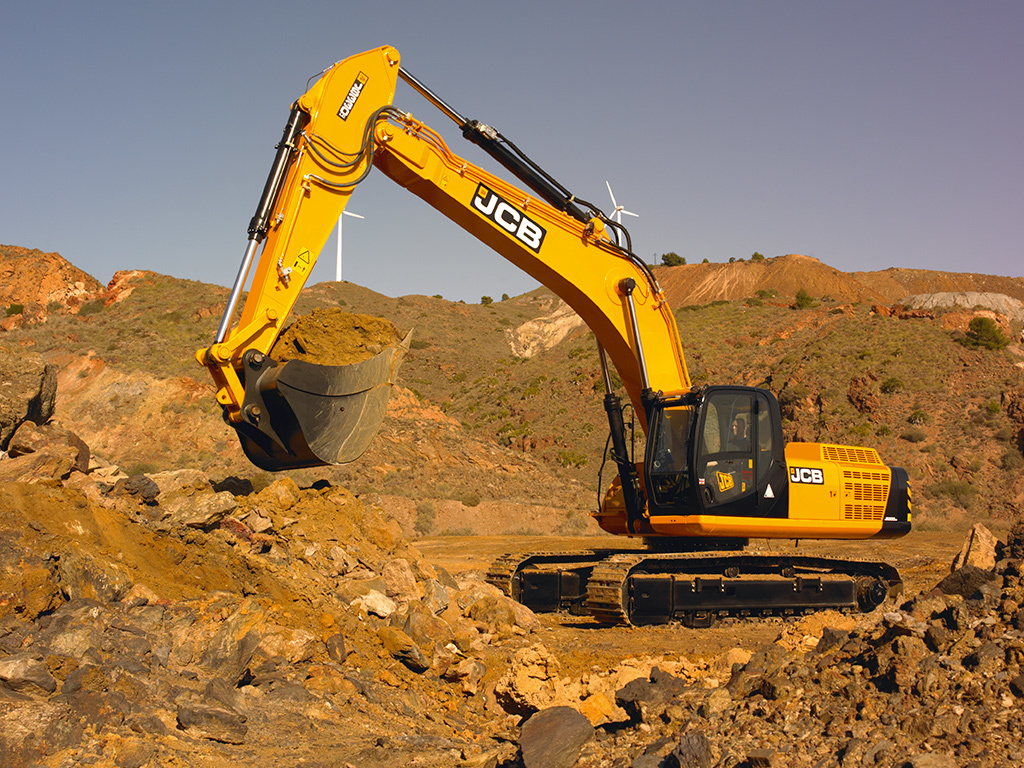

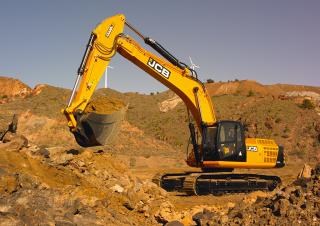

Crawler Excavators JCB JS330 NLC
Crawler Excavators JCB JS330 NLC
Crawler Excavators JCB JS330 NLC
Crawler Excavators JCB JS330 NLC
Crawler Excavators JCB JS330 NLC
Crawler Excavators JCB JS330 NLC

Visit JCB live at

Technical specs - JS330 NLC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
32.03 t
Transport length
11.1 m
Transport width
2.99 m
Transport height
3.36 m
Bucket capacity
1.61 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.13 m
Dredging depth
7.39 m
Tear-out force
151.52 kN
Bucket width
1.6 m
Model series
JS
Engine manuf.
Isuzu
Engine type
6 HKIX
Engine power
210 kW
Displacement
7.8 l
Emission level
4i/3b

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS330 NLC FAQ

When was the JCB JS330 NLC manufactured?

The JCB JS330 NLC was manufactured from 2010 to 2017.

How much does the JCB JS330 NLC weigh?

The JCB JS330 NLC weighs 32.03 tons.

What are the transport dimensions of the JCB JS330 NLC crawler excavator?

The JCB JS330 NLC has a transport length of 11.1 meters, a transport width of 2.99 meters, and a transport height of 3.36 meters.

What are the undercarriage specifications of the JCB JS330 NLC?

The JCB JS330 NLC has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB JS330 NLC?

The JCB JS330 NLC has a dredging depth of 7.39 meters, a maximum horizontal reach of 11.13 meters, and is equipped with a monobloc boom.

What are the power ratings of the JCB JS330 NLC?

There are no power rating specifications available for the JCB JS330 NLC in the provided data.

What are the specifications of the primary work tool on the JCB JS330 NLC?

The JCB JS330 NLC has a bucket with a capacity of 1.61 cubic meters and a width of 1.6 meters.

How much is a JCB JS330 NLC Crawler excavator (2010u20132017) worth?

The residual value of the JCB JS330 NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
