JS190 LC JCB excavator specs & Dimensions (2012 - 2017)

JCB JS190 LC is a crawler excavator manufactured from 2012 to 2017, with a weight of 19.96 tons. It features a track width of 600 …

JCB JS190 LC is a crawler excavator manufactured from 2012 to 2017, with a weight of 19.96 tons. It features a track width of 600 mm, a transport length of 8.42 meters, a transport width of 2.8 meters, and a transport height of 3.02 meters. The machine has a tear-out force of 68 kN.

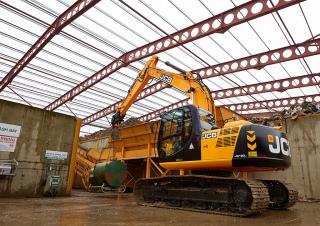

Crawler Excavators JCB JS190 LC
Crawler Excavators JCB JS190 LC
Crawler Excavators JCB JS190 LC
Crawler Excavators JCB JS190 LC
Crawler Excavators JCB JS190 LC
Crawler Excavators JCB JS190 LC

Visit JCB live at

Technical specs - JS190 LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.96 t
Transport length
8.42 m
Transport width
2.8 m
Transport height
3.02 m
Bucket capacity
0.49 m³
Undercarriage
LC
Track width
600 mm
Boom
MB/VA
Max. Reach horizontal
9.223 m
Dredging depth
6.598 m
Tear-out force
68 kN
Bucket width
0.75 m
Model series
JS
Engine manuf.
JCB
Engine type
444 TCA
Engine power
93 kW
Displacement
4.4 l
Emission level
Tier 4i/3b

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS190 LC FAQ

When was the JCB JS190 LC manufactured?

The JCB JS190 LC was manufactured from 2012 to 2017.

How much does the JCB JS190 LC weigh?

The JCB JS190 LC weighs 19.96 tons.

What are the transport dimensions of the JCB JS190 LC crawler excavator?

The JCB JS190 LC has a transport length of 8.42 meters, a transport width of 2.8 meters, and a transport height of 3.02 meters.

What are the undercarriage specifications of the JCB JS190 LC?

The JCB JS190 LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB JS190 LC?

The JCB JS190 LC has a dredging depth of 6.598 meters, a maximum horizontal reach of 9.223 meters, and features a Monobloc boom and an Adjustable boom.

What is the tear-out force of the JCB JS190 LC, and does the data provide any power ratings?

The JCB JS190 LC has a tear-out force of 68 kN. The available data does not include any power ratings for this machine.

What are the specifications of the primary work tool bucket on the JCB JS190 LC?

The primary work tool bucket of the JCB JS190 LC has a capacity of 0.49 cubic meters and a width of 0.75 meters.

How much is a JCB JS190 LC Crawler excavator (2012u20132017) worth?

The residual value of the JCB JS190 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
