JS180LC JCB excavator specs & Dimensions (2017 - 2021)

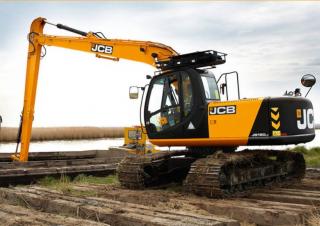

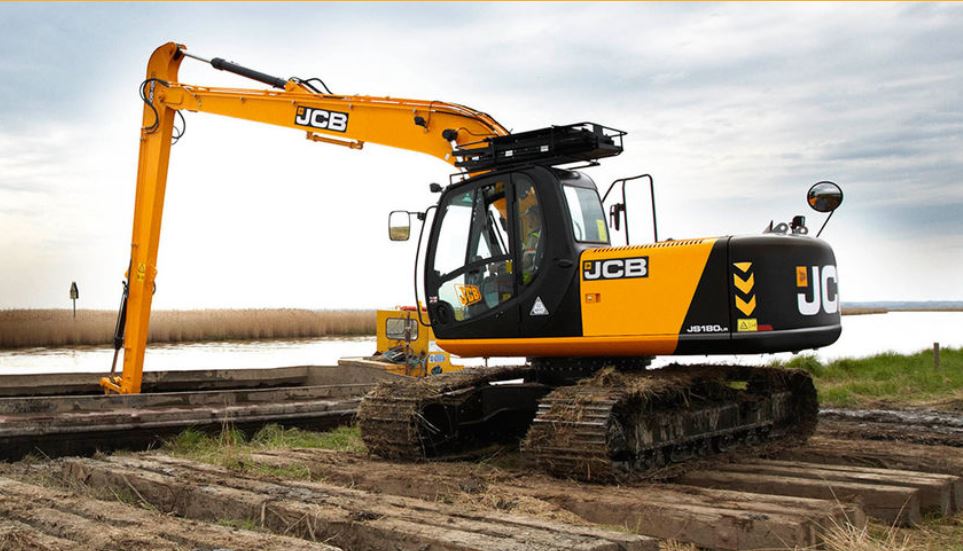

JCB JS180LC is a Crawler Excavator manufactured from 2017 to 2021, with a weight of 18.33 tons. It features a track width of 600 m…

JCB JS180LC is a Crawler Excavator manufactured from 2017 to 2021, with a weight of 18.33 tons. It features a track width of 600 mm, a transport length of 8.366 meters, a transport width of 2.59 meters, and a transport height of 3.162 meters. The excavator has a tear-out force of 116.1 kN, a dredging depth of 5.94 meters, and a maximum horizontal reach of 8.735 meters. It comes with a bucket width of 1.067 meters and a bucket capacity of 0.72 cubic meters. The machine is equipped with air conditioning.

Crawler Excavators JCB JS180LC

Visit JCB live at

Technical specs - JS180LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.33 t
Transport length
8.366 m
Transport width
2.59 m
Transport height
3.162 m
Bucket capacity
0.72 m³
Undercarriage
LC
Track width
600 mm
Boom
VA
Max. Reach horizontal
8.735 m
Dredging depth
5.94 m
Tear-out force
116.1 kN
Bucket width
1.067 m
Model series
JS
Engine manuf.
JCB
Engine type
EcoMax
Engine power
93 kW
Displacement
5.193 l
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS180LC FAQ

When was the JCB JS180LC manufactured?

The JCB JS180LC was manufactured from 2017 to 2021.

How much does the JCB JS180LC weigh?

The JCB JS180LC weighs 18.33 tons.

What are the transport dimensions of the JCB JS180LC crawler excavator?

The JCB JS180LC has a transport length of 8.37 meters, a transport width of 2.59 meters, and a transport height of 3.16 meters.

What are the undercarriage specifications of the JCB JS180LC?

The JCB JS180LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB JS180LC?

The JCB JS180LC has an adjustable boom, a dredging depth of 5.94 meters, and a maximum horizontal reach of 8.735 meters.

What is the tear-out force of the JCB JS180LC?

The JCB JS180LC has a tear-out force of 116.1 kN.

What are the specifications of the primary work tool on the JCB JS180LC?

The primary work tool of the JCB JS180LC has a bucket capacity of 0.72 cubic meters and a bucket width of 1.067 meters.

How much is a JCB JS180LC Crawler excavator (2017u20132021) worth?

The residual value of the JCB JS180LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
