JS160W JCB excavator specs & Dimensions (2021 - 2026)

Weight: 17.44t – Transport length: 8.275m – Transport width: 2.49m – Transport height: 3.195m – Bucket capacity: 0.34m³ – Bucket c…

Weight: 17.44t – Transport length: 8.275m – Transport width: 2.49m – Transport height: 3.195m – Bucket capacity: 0.34m³ – Bucket capacity min.: 0.265m³

Check out detailed specifications, information and technical data for JCB JS160W excavator manufactured between 2021 - 2026. Get more in-depth insight with JCB JS160W digger specifications. See information, like: Weight: 17.44t – Transport length: 8.275m – Transport width: 2.49m – Transport height: 3.195m – Bucket capacity: 0.34m³ – Bucket capacity min.: 0.265m³ and more.

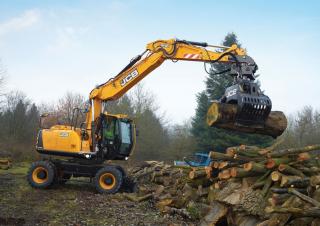

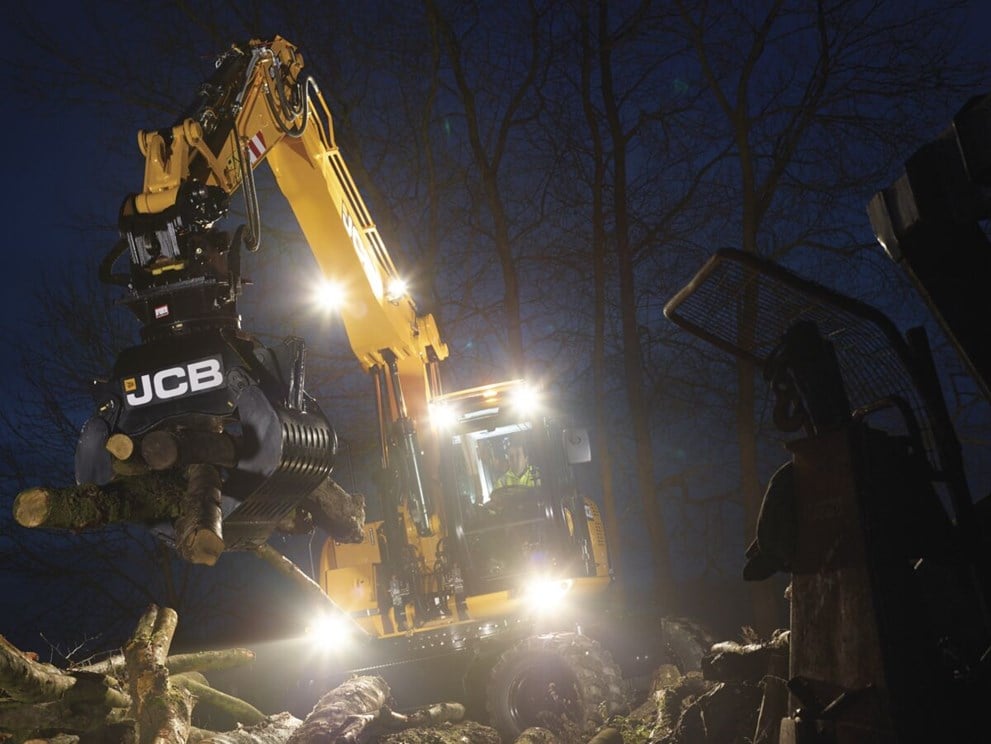

Crawler Excavators JCB JS160W
Crawler Excavators JCB JS160W
Crawler Excavators JCB JS160W
Crawler Excavators JCB JS160W
Crawler Excavators JCB JS160W
Crawler Excavators JCB JS160W

Visit JCB live at

Technical specs - JS160W JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.44 t
Transport length
8.275 m
Transport width
2.49 m
Transport height
3.195 m
Bucket capacity
0.34 m³
Bucket capacity min.
0.265 m³
Bucket capacity max.
0.995 m³
Boom
MB
Max. Reach horizontal
9.025 m
Dredging depth
5.75 m
Tear-out force
102 kN
Bucket width
0.61 m
Model series
JS
Engine manuf.
JCB
Engine type
DieselMax
Engine power
97 kW
Displacement
4.8 l
No. of cylinders
4
Emission level
V

More technical details, like: undercarriage, track width, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

JCB JS160W FAQ

When was the JCB JS160W manufactured?

The JCB JS160W was first produced in 2021.

How much does the JCB JS160W weigh?

The JCB JS160W weighs 17.44 tons.

What are the transport dimensions of the JCB JS160W crawler excavator?

The JCB JS160W crawler excavator has a transport length of 8.28 meters, a transport width of 2.49 meters, and a transport height of 3.2 meters.

What are the excavation performance specifications of the JCB JS160W?

The JCB JS160W has a dredging depth of 5.75 meters, a maximum horizontal reach of 9.025 meters, and is equipped with a monobloc boom.

What is the power rating of the JCB JS160W?

The source data does not provide power rating information for the JCB JS160W.

What are the specifications of the primary work tool bucket on the JCB JS160W?

The JCB JS160W's bucket has a capacity of 0.34 mu00b3, with a minimum capacity of 0.27 mu00b3 and a maximum capacity of 1 mu00b3, and a bucket width of 0.61 meters.

How much is a JCB JS160W Crawler excavator (2021u20132025) worth?

The residual value of the JCB JS160W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
