JS160NLC JCB excavator specs & Dimensions (2017 - 2019)

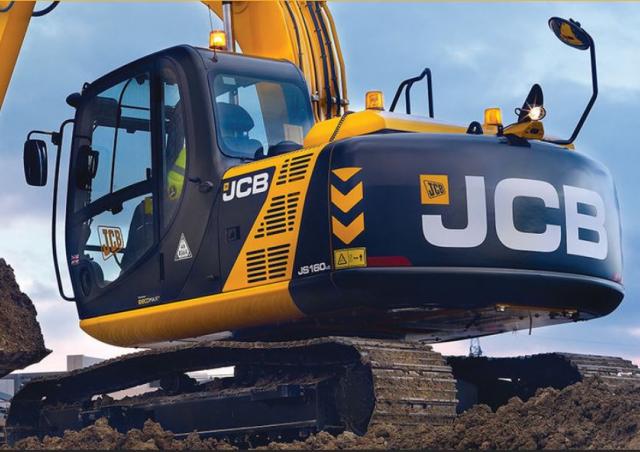

JCB JS160NLC is a crawler excavator manufactured from 2017 to 2019. It has a weight of 17.53 tons and a track width of 600 mm. The…

JCB JS160NLC is a crawler excavator manufactured from 2017 to 2019. It has a weight of 17.53 tons and a track width of 600 mm. The transport dimensions are 8.338 meters in length, 2.59 meters in width, and 3.14 meters in height. The machine features a tear-out force of 116.1 kN, a dredging depth of 5.482 meters, and a maximum horizontal reach of 8.326 meters. The bucket width is 1.3 meters with a capacity of 0.99 cubic meters.

Crawler Excavators JCB JS160NLC

Visit JCB live at

Technical specs - JS160NLC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.53 t
Transport length
8.338 m
Transport width
2.59 m
Transport height
3.14 m
Bucket capacity
0.99 m³
Track width
600 mm
Max. Reach horizontal
8.326 m
Dredging depth
5.482 m
Tear-out force
116.1 kN
Bucket width
1.3 m
Model series
JS
Engine manuf.
JCB
Engine type
EcoMax 444 TCA-99
Engine power
93 kW
Displacement
5.193 l
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS160NLC FAQ

When was the JCB JS160NLC manufactured?

The JCB JS160NLC was manufactured from 2017 to 2019.

How much does the JCB JS160NLC weigh?

The JCB JS160NLC weighs 17.53 tons.

What are the transport dimensions of the JCB JS160NLC crawler excavator?

The JCB JS160NLC has a transport length of 8.34 meters, a transport width of 2.59 meters, and a transport height of 3.14 meters.

What is the track width of the JCB JS160NLC's undercarriage?

The JCB JS160NLC has a track width of 600 mm.

What are the excavation performance specifications of the JCB JS160NLC?

The JCB JS160NLC has a dredging depth of 5.482 meters and a maximum horizontal reach of 8.326 meters.

What is the power rating of the JCB JS160NLC?

Power rating data for the JCB JS160NLC is not available in the provided information.

What are the bucket specifications of the JCB JS160NLC crawler excavator?

The JCB JS160NLC crawler excavator has a bucket capacity of 0.99 cubic meters and a bucket width of 1.3 meters.

How much is a JCB JS160NLC Crawler excavator (2017u20132019) worth?

The residual value of the JCB JS160NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
