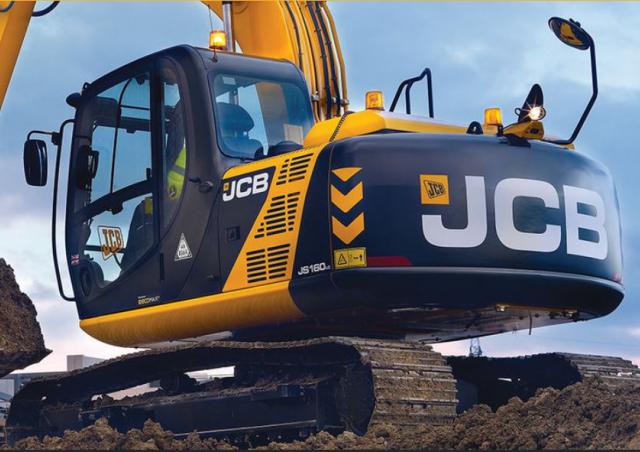

JS160LC JCB excavator specs & Dimensions (2017 - 2019)

JCB JS160LC is a Crawler Excavator manufactured from 2017 to 2019, with a weight of 18.3 tons. It features a track width of 600 mm…

JCB JS160LC is a Crawler Excavator manufactured from 2017 to 2019, with a weight of 18.3 tons. It features a track width of 600 mm, a transport length of 8.3 meters, a transport width of 2.59 meters, and a transport height of 3.14 meters. The machine has a tear-out force of 116.1 kN, a dredging depth of 5.38 meters, and a maximum horizontal reach of 8.65 meters. The bucket width is 0.91 meters, with a bucket capacity of 0.59 cubic meters. It is equipped with air conditioning.

Crawler Excavators JCB JS160LC

Visit JCB live at

Technical specs - JS160LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.3 t
Transport length
8.3 m
Transport width
2.59 m
Transport height
3.14 m
Bucket capacity
0.59 m³
Undercarriage
LC
Track width
600 mm
Boom
VA
Max. Reach horizontal
8.65 m
Dredging depth
5.38 m
Tear-out force
116.1 kN
Bucket width
0.91 m
Model series
JS
Engine manuf.
JCB
Engine type
EcoMax
Engine power
93 kW
Displacement
5.193 l
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS160LC FAQ

When was the JCB JS160LC manufactured?

The JCB JS160LC was manufactured from 2017 to 2019.

How much does the JCB JS160LC weigh?

The JCB JS160LC weighs 18.3 tons.

What are the transport dimensions of the JCB JS160LC crawler excavator?

The JCB JS160LC has a transport length of 8.3 meters, a transport width of 2.59 meters, and a transport height of 3.14 meters.

What are the undercarriage specifications of the JCB JS160LC?

The JCB JS160LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB JS160LC?

The JCB JS160LC has a dredging depth of 5.38 meters, a maximum horizontal reach of 8.65 meters, and features an adjustable boom.

What power ratings are available for the JCB JS160LC?

The source data does not provide any power ratings for the JCB JS160LC.

What are the specifications of the primary work tool on the JCB JS160LC?

The JCB JS160LC has a bucket with a capacity of 0.59 cubic meters and a width of 0.91 meters.

How much is a JCB JS160LC Crawler excavator (2017u20132019) worth?

The residual value of the JCB JS160LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
