JS141LC JCB excavator specs & Dimensions (2019 - 2020)

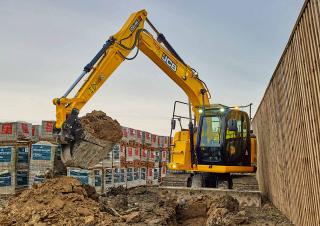

JCB JS141LC is a crawler excavator manufactured from 2019 to 2020. It has a weight of 17 tons and a track width of 600 mm. The tra…

JCB JS141LC is a crawler excavator manufactured from 2019 to 2020. It has a weight of 17 tons and a track width of 600 mm. The transport dimensions are 7.3 meters in length, 2.8 meters in width, and 2.98 meters in height. The dredging depth is 5.1 meters, with a maximum horizontal reach of 7.96 meters. The bucket capacity is 0.89 cubic meters.

Crawler Excavators JCB JS141LC

Visit JCB live at

Technical specs - JS141LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17 t
Transport length
7.3 m
Transport width
2.8 m
Transport height
2.98 m
Bucket capacity
0.89 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
7.96 m
Dredging depth
5.1 m
Model series
JS
Engine manuf.
JCB
Engine type
EcoMax
Engine power
55 kW
Displacement
4.4 l
Max. torque
400 Nm
No. of cylinders
4
Emission level
EU 3B / Tier 4 Final

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS141LC FAQ

When was the JCB JS141LC manufactured?

The JCB JS141LC was manufactured from 2019 to 2020.

How much does the JCB JS141LC weigh?

The JCB JS141LC weighs 17 tons.

What are the transport dimensions of the JCB JS141LC crawler excavator?

The JCB JS141LC has a transport length of 7.3 meters, a transport width of 2.8 meters, and a transport height of 2.98 meters.

What are the undercarriage specifications of the JCB JS141LC?

The JCB JS141LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB JS141LC?

The JCB JS141LC has a dredging depth of 5.1 meters, a maximum horizontal reach of 7.96 meters, and features a monobloc boom.

What is the bucket capacity of the JCB JS141LC excavator?

The JCB JS141LC excavator has a bucket capacity of 0.89 cubic meters.

How much is a JCB JS141LC Crawler excavator (2019u20132020) worth?

The residual value of the JCB JS141LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
