JS 290 LC JCB excavator specs & Dimensions (2008 - 2014)

Model rating
5,00 / 10

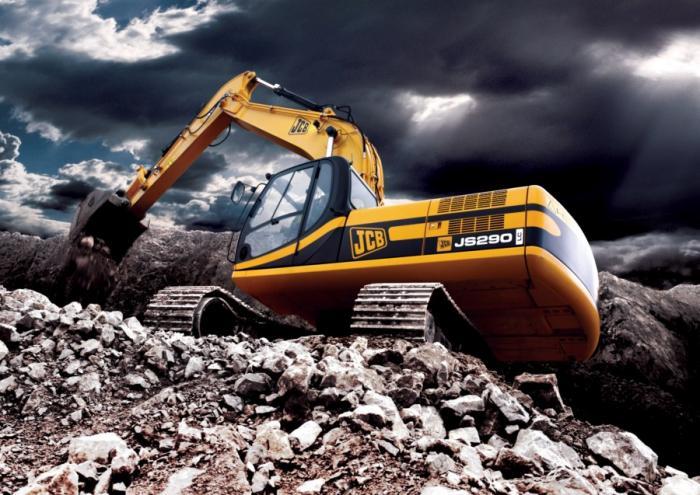

JCB JS 290 LC is a crawler excavator manufactured from 2008 to 2014, with a weight of 31.85 tons. It features a track width of 700…

JCB JS 290 LC is a crawler excavator manufactured from 2008 to 2014, with a weight of 31.85 tons. It features a track width of 700 mm, a transport length of 10.41 meters, a transport width of 3.3 meters, and a transport height of 3.25 meters.

Crawler Excavators JCB JS 290 LC

Visit JCB live at

Technical specs - JS 290 LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
31.85 t
Transport length
10.41 m
Transport width
3.3 m
Transport height
3.25 m
Bucket capacity
1.45 m³
Undercarriage
LC
Track width
700 mm
Boom
MB
Max. Reach horizontal
11.3 m
Dredging depth
7.6 m
Tear-out force
233.2 kN
Bucket width
1.35 m
Model series
JS
Engine manuf.
Isuzu
Engine type
6 HKIX
Engine power
161 kW
Displacement
7.8 l

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS 290 LC FAQ

When was the JCB JS 290 LC manufactured?

The JCB JS 290 LC was manufactured from 2008 to 2014.

How much does the JCB JS 290 LC weigh?

The JCB JS 290 LC weighs 31.85 tons.

What are the transport dimensions of the JCB JS 290 LC?

The JCB JS 290 LC has a transport length of 10.41 meters, a transport width of 3.3 meters, and a transport height of 3.25 meters.

What are the undercarriage specifications of the JCB JS 290 LC?

The JCB JS 290 LC has a long undercarriage and a track width of 700 mm.

What are the excavation performance specifications of the JCB JS 290 LC?

The JCB JS 290 LC has a dredging depth of 7.6 meters, a maximum horizontal reach of 11.3 meters, and features a monobloc boom.

What are the power ratings of the JCB JS 290 LC?

There are no power rating specifications available for the JCB JS 290 LC in the provided data.

What are the specifications of the primary work tool on the JCB JS 290 LC?

The primary work tool of the JCB JS 290 LC has a bucket capacity of 1.45 cubic meters and a bucket width of 1.35 meters.

How much is a JCB JS 290 LC Crawler excavator (2008u20132014) worth?

The residual value of the JCB JS 290 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
