JS 130 LC JCB excavator specs & Dimensions (2007 - 2013)

JCB JS 130 LC is a crawler excavator manufactured from 2007 to 2013, with a weight of 12.9 tons. It features a track width of 600 …

JCB JS 130 LC is a crawler excavator manufactured from 2007 to 2013, with a weight of 12.9 tons. It features a track width of 600 mm, a transport length of 2.87 meters, and a transport width of 7.6 meters.

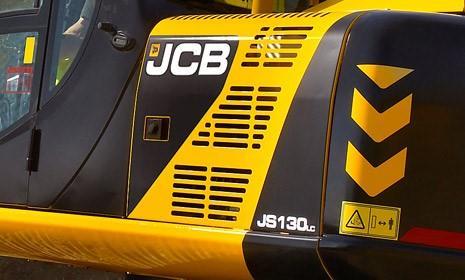

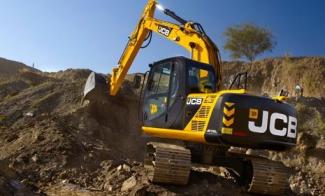

Crawler Excavators JCB JS 130 LC
Crawler Excavators JCB JS 130 LC
Crawler Excavators JCB JS 130 LC
Crawler Excavators JCB JS 130 LC

Visit JCB live at

Technical specs - JS 130 LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.9 t
Transport length
2.87 m
Transport width
7.6 m
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.79 m
Dredging depth
6.05 m
Tear-out force
93.85 kN
Model series
JZ
Engine manuf.
Isuzu
Engine type
4JJIX
Engine power
73 kW
Displacement
2.999 l
Revolutions at max torque
2200 rpm

More technical details, like: transport height, bucket capacity, bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS 130 LC FAQ

When was the JCB JS 130 LC manufactured?

The JCB JS 130 LC was manufactured from 2007 to 2013.

How much does the JCB JS 130 LC weigh?

The JCB JS 130 LC weighs 12.9 tons.

What are the transport dimensions of the JCB JS 130 LC?

The JCB JS 130 LC has a transport length of 2.87 meters and a transport width of 7.6 meters.

What are the undercarriage specifications of the JCB JS 130 LC?

The JCB JS 130 LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB JS 130 LC?

The JCB JS 130 LC has a dredging depth of 6.05 meters, a maximum horizontal reach of 8.79 meters, and is equipped with a monobloc boom.

What power ratings are available for the JCB JS 130 LC?

The source data does not provide power ratings for the JCB JS 130 LC.

How much is a JCB JS 130 LC Crawler excavator (2007u20132013) worth?

The residual value of the JCB JS 130 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
