86C-2 JCB excavator specs & Dimensions (2019 - 2026)

JCB 86C-2 is a Crawler Excavator manufactured since 2019. It has a weight of 8.6 tons and a track width of 450 mm. The transport d…

JCB 86C-2 is a Crawler Excavator manufactured since 2019. It has a weight of 8.6 tons and a track width of 450 mm. The transport dimensions are 6.435 meters in length, 2.3 meters in width, and 2.706 meters in height. The machine features a tear-out force of 57.1 kN, a dredging depth of 3.89 meters, and a maximum horizontal reach of 4.94 meters. Special equipment includes air conditioning and a diesel particulate filter.

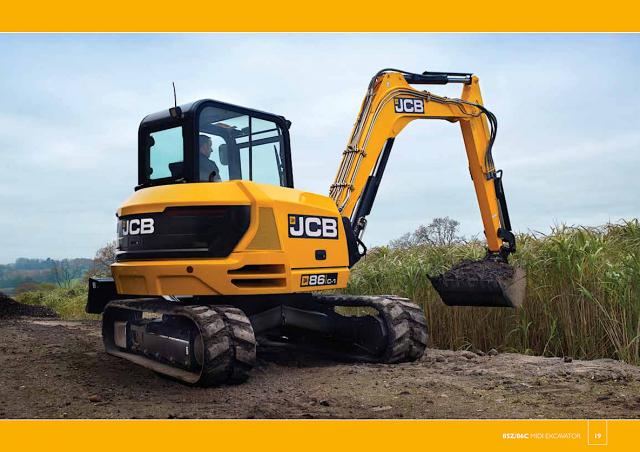

Crawler Excavators JCB 86C-2

Visit JCB live at

Technical specs - 86C-2 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.6 t
Transport length
6.435 m
Transport width
2.3 m
Transport height
2.706 m
Track width
450 mm
Boom
MB
Max. Reach horizontal
7.387 m
Dredging depth
4.522 m
Tear-out force
57.1 kN
Engine manuf.
Kohler
Engine type
KDI2504
Engine power
48 kW
Max. torque
305/1500 Nm
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 86C-2 FAQ

When was the JCB 86C-2 manufactured?

The JCB 86C-2 was first produced in 2019.

How much does the JCB 86C-2 weigh?

The JCB 86C-2 weighs 8.6 tons.

What are the transport dimensions of the JCB 86C-2 crawler excavator?

The JCB 86C-2 has a transport length of 6.44 meters, a transport width of 2.3 meters, and a transport height of 2.71 meters.

What is the track width of the JCB 86C-2's undercarriage?

The JCB 86C-2 has a track width of 450 mm on its undercarriage.

What are the excavation performance specifications of the JCB 86C-2 crawler excavator?

The JCB 86C-2 crawler excavator has a dredging depth of 4.522 meters, a maximum horizontal reach of 7.387 meters, and features a monobloc boom.

What is the tear-out force of the JCB 86C-2?

The JCB 86C-2 has a tear-out force of 57.1 kN. No power rating data is available for this model.

How much is a JCB 86C-2 Crawler excavator (2019u20132025) worth?

The residual value of the JCB 86C-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
