86C-1 TAB JCB excavator specs & Dimensions (2014 - 2020)

JCB 86C-1 TAB is a crawler excavator manufactured from 2014 to 2020. It has a weight of 9.373 tons and a track width of 450 mm. Th…

JCB 86C-1 TAB is a crawler excavator manufactured from 2014 to 2020. It has a weight of 9.373 tons and a track width of 450 mm. The transport dimensions are 6.655 meters in length, 2.3 meters in width, and 2.706 meters in height. The machine features a tear-out force of 42.3 kN, a dredging depth of 4.381 meters, and a maximum horizontal reach of 7.844 meters. Special equipment includes air conditioning and a blade.

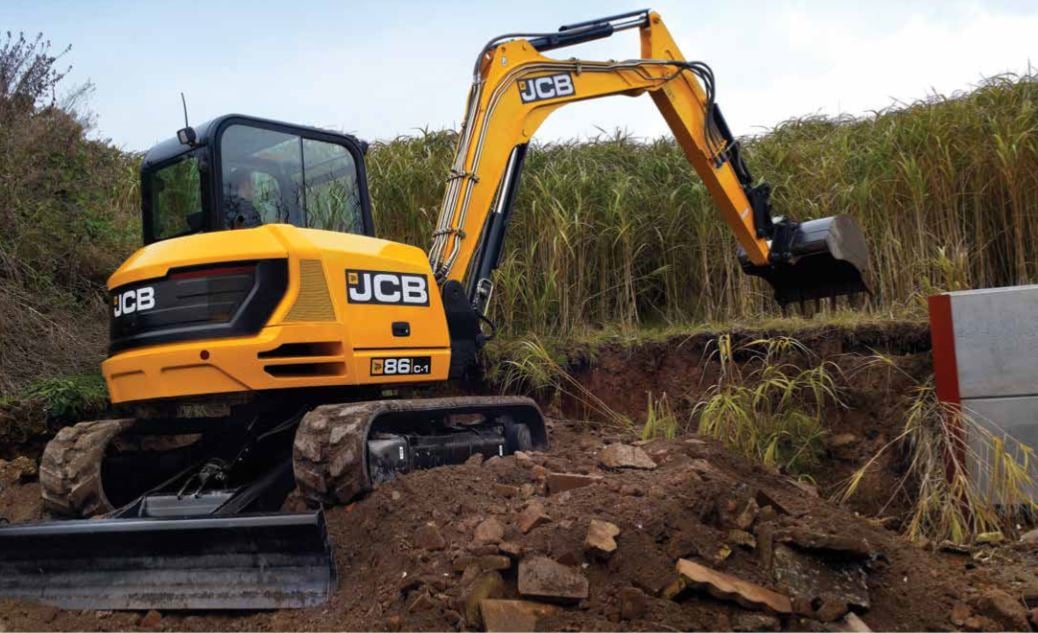

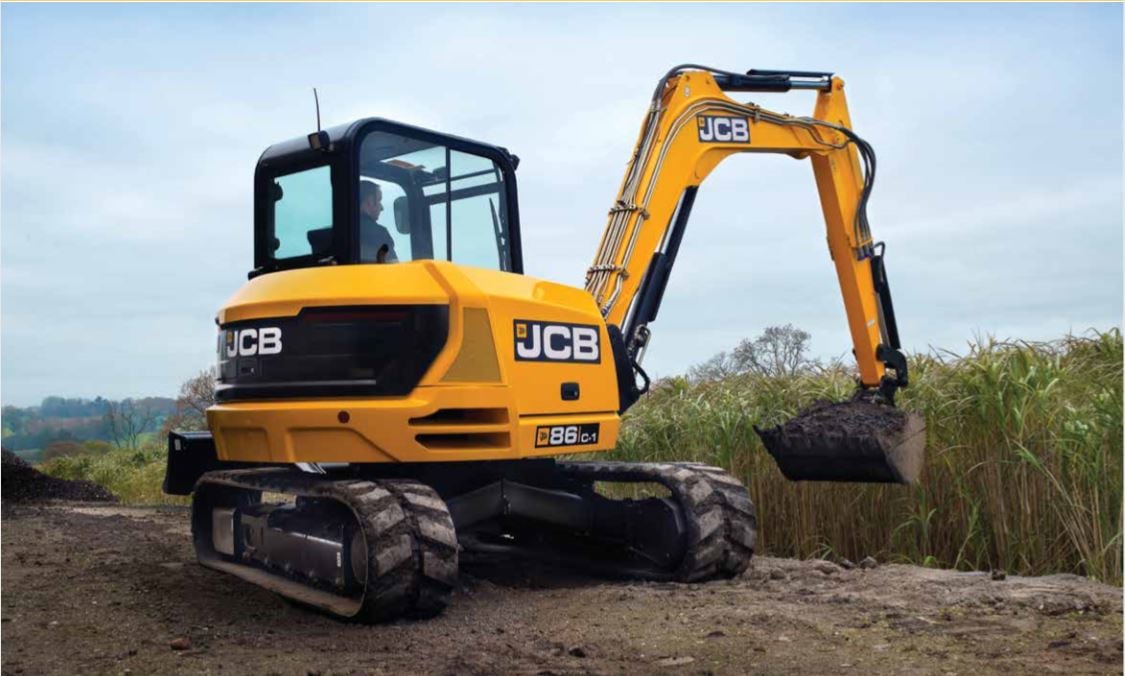

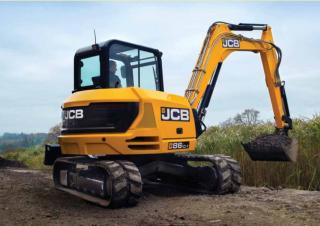

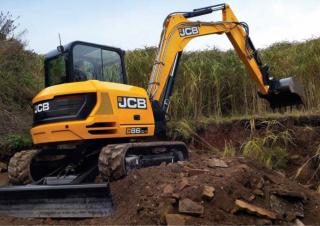

Crawler Excavators JCB 86C-1 TAB
Crawler Excavators JCB 86C-1 TAB
Crawler Excavators JCB 86C-1 TAB
Crawler Excavators JCB 86C-1 TAB

Visit JCB live at

Technical specs - 86C-1 TAB JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.373 t
Transport length
6.655 m
Transport width
2.3 m
Transport height
2.706 m
Track width
450 mm
Boom
VA
Max. Reach horizontal
7.844 m
Dredging depth
4.381 m
Tear-out force
42.3 kN
Engine manuf.
Kohler
Engine type
2504 TCR
Engine power
48 kW
Displacement
2.5 l
Revolutions at max torque
2200 rpm
Emission level
III B

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 86C-1 TAB FAQ

When was the JCB 86C-1 TAB manufactured?

The JCB 86C-1 TAB was manufactured from 2014 to 2020.

How much does the JCB 86C-1 TAB weigh?

The JCB 86C-1 TAB weighs 9.37 tons.

What are the transport dimensions of the JCB 86C-1 TAB crawler excavator?

The JCB 86C-1 TAB crawler excavator has a transport length of 6.66 meters, a transport width of 2.3 meters, and a transport height of 2.71 meters.

What is the track width of the JCB 86C-1 TAB's undercarriage?

The JCB 86C-1 TAB has a track width of 450 mm on its undercarriage.

What are the excavation performance specifications of the JCB 86C-1 TAB?

The JCB 86C-1 TAB has an adjustable boom, a dredging depth of 4.381 meters, and a maximum horizontal reach of 7.844 meters.

What are the power ratings of the JCB 86C-1 TAB?

The source data does not provide power ratings for the JCB 86C-1 TAB.

How much is a JCB 86C-1 TAB Crawler excavator (2014u20132020) worth?

The residual value of the JCB 86C-1 TAB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
