65R-1 JCB excavator specs & Dimensions (2015 - 2021)

JCB 65R-1 is a crawler excavator manufactured from 2015 to 2021. It has a weight of 6.6 tons and a track width of 400 mm. The tran…

JCB 65R-1 is a crawler excavator manufactured from 2015 to 2021. It has a weight of 6.6 tons and a track width of 400 mm. The transport dimensions are 5.71 meters in length, 2 meters in width, and 2.582 meters in height. The machine features a tear-out force of 47.6 kN, a dredging depth of 4.01 meters, and a maximum horizontal reach of 6.617 meters. Special equipment includes air conditioning and a blade.

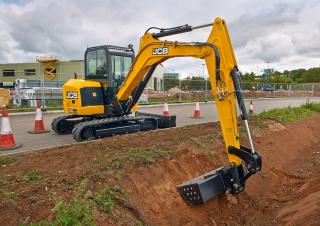

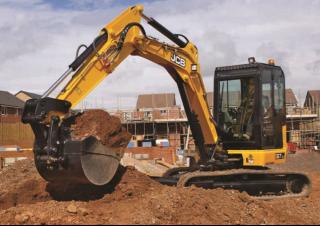

Crawler Excavators JCB 65R-1
Crawler Excavators JCB 65R-1
Crawler Excavators JCB 65R-1
Crawler Excavators JCB 65R-1

Visit JCB live at

Technical specs - 65R-1 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.6 t
Transport length
5.71 m
Transport width
2 m
Transport height
2.582 m
Track width
400 mm
Boom
SKA
Max. Reach horizontal
6.617 m
Dredging depth
4.01 m
Tear-out force
47.6 kN
Engine manuf.
Perkins
Engine type
404D-22
Engine power
36.9 kW
Displacement
2.179 l
Emission level
Stufe III A

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 65R-1 FAQ

When was the JCB 65R-1 manufactured?

The JCB 65R-1 was manufactured from 2015 to 2021.

How much does the JCB 65R-1 weigh?

The JCB 65R-1 weighs 6.6 tons.

What are the transport dimensions of the JCB 65R-1?

The JCB 65R-1 has a transport length of 5.71 meters, a transport width of 2 meters, and a transport height of 2.58 meters.

What is the track width of the JCB 65R-1 crawler excavator?

The JCB 65R-1 crawler excavator has a track width of 400 mm.

What are the excavation performance specifications of the JCB 65R-1 crawler excavator?

The JCB 65R-1 crawler excavator has a dredging depth of 4.01 meters, a maximum horizontal reach of 6.617 meters, and features a lateral articulated boom.

What is the tear-out force of the JCB 65R-1?

The JCB 65R-1 has a tear-out force of 47.6 kN.

How much is a JCB 65R-1 Crawler excavator (2015u20132021) worth?

The residual value of the JCB 65R-1 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
