150X LC JCB excavator specs & Dimensions (2021 - 2026)

JCB 150X LC is a Crawler Excavator manufactured since 2020, with a weight of 15.803 tons and a track width of 600 mm. It has a tra…

JCB 150X LC is a Crawler Excavator manufactured since 2020, with a weight of 15.803 tons and a track width of 600 mm. It has a transport length of 7.89 meters, a transport width of 2.59 meters, and a transport height of 2.91 meters. The dredging depth is 6.02 meters, and the maximum horizontal reach is 8.98 meters. The bucket width is 1.35 meters, with a bucket capacity ranging from 0.21 m³ to 0.89 m³. Special equipment includes air conditioning, a blade, and a diesel particulate filter.

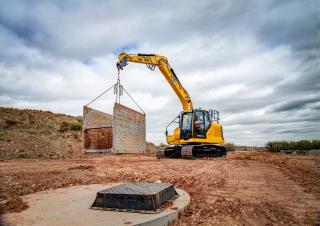

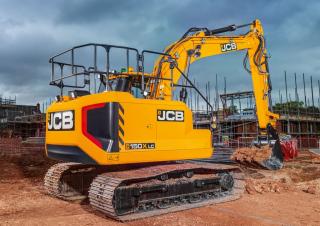

Crawler Excavators JCB 150X LC
Crawler Excavators JCB 150X LC
Crawler Excavators JCB 150X LC
Crawler Excavators JCB 150X LC
Crawler Excavators JCB 150X LC
Crawler Excavators JCB 150X LC

Visit JCB live at

Technical specs - 150X LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.803 t
Transport length
7.89 m
Transport width
2.59 m
Transport height
2.91 m
Bucket capacity
0.89 m³
Bucket capacity min.
0.21 m³
Bucket capacity max.
0.89 m³
Undercarriage
LC
Track width
600 mm
Boom
VA
Max. Reach horizontal
8.98 m
Dredging depth
6.02 m
Bucket width
1.35 m
Model series
X
Engine manuf.
JCB
Engine type
DieselMax
Engine power
81 kW
Displacement
4.8 l
Revolutions at max torque
1450 rpm
No. of cylinders
4
Emission level
V

More technical details, like: tear-out force, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB 150X LC FAQ

When was the JCB 150X LC manufactured?

The JCB 150X LC was first produced in 2021.

How much does the JCB 150X LC weigh?

The JCB 150X LC weighs 15.8 tons.

What are the transport dimensions of the JCB 150X LC crawler excavator?

The JCB 150X LC crawler excavator has a transport length of 7.89 meters, a transport width of 2.59 meters, and a transport height of 2.91 meters.

What are the undercarriage specifications of the JCB 150X LC?

The JCB 150X LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB 150X LC?

The JCB 150X LC has a dredging depth of 6.02 meters, a maximum horizontal reach of 8.98 meters, and features an adjustable boom.

What are the specifications of the primary work tool bucket on the JCB 150X LC crawler excavator?

The JCB 150X LC crawler excavator has a bucket with a capacity ranging from 0.21 to 0.89 cubic meters and a bucket width of 1.35 meters.

How much is a JCB 150X LC Crawler excavator (2021u20132025) worth?

The residual value of the JCB 150X LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
