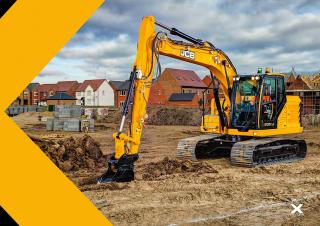

131X LC JCB excavator specs & Dimensions (2019 - 2026)

JCB 131X LC is a crawler excavator manufactured since 2019. It has a weight of 14.8 tons and a track width of 500 mm. The transpor…

JCB 131X LC is a crawler excavator manufactured since 2019. It has a weight of 14.8 tons and a track width of 500 mm. The transport dimensions are 7.6 meters in length, 2.49 meters in width, and 3 meters in height. The dredging depth is 5.16 meters, with a maximum horizontal reach of 8 meters. The bucket capacity is 0.89 cubic meters.

Crawler Excavators JCB 131X LC

Visit JCB live at

Technical specs - 131X LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.8 t
Transport length
7.6 m
Transport width
2.49 m
Transport height
3 m
Bucket capacity
0.89 m³
Undercarriage
LC
Track width
500 mm
Max. Reach horizontal
8 m
Dredging depth
5.16 m
Model series
X
Engine manuf.
JCB
Engine type
EcoMax
Engine power
55 kW
Displacement
4.4 l
Max. torque
400 Nm
No. of cylinders
4
Emission level
EU 3B / Tier 4 Final

More technical details, like: bucket capacity min., bucket capacity max., boom, tear-out force, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 131X LC FAQ

When was the JCB 131X LC manufactured?

The JCB 131X LC was first produced in 2019.

How much does the JCB 131X LC weigh?

The JCB 131X LC weighs 14.8 tons.

What are the transport dimensions of the JCB 131X LC crawler excavator?

The JCB 131X LC has a transport length of 7.6 meters, a transport width of 2.49 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the JCB 131X LC?

The JCB 131X LC has a long undercarriage and a track width of 500 mm.

What are the dredging depth and maximum horizontal reach of the JCB 131X LC?

The JCB 131X LC has a dredging depth of 5.16 meters and a maximum horizontal reach of 8 meters.

What is the bucket capacity of the JCB 131X LC?

The bucket capacity of the JCB 131X LC is 0.89 cubic meters.

How much is a JCB 131X LC Crawler excavator (2019u20132025) worth?

The residual value of the JCB 131X LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
