100C-2 JCB excavator specs & Dimensions (2019 - 2026)

Weight: 9.75t – Transport length: 6.86m – Transport width: 2.3m – Transport height: 2.706m – Track width: 450mm – Boom: MB…

Weight: 9.75t – Transport length: 6.86m – Transport width: 2.3m – Transport height: 2.706m – Track width: 450mm – Boom: MB

Check out detailed specifications, information and technical data for JCB 100C-2 excavator manufactured between 2019 - 2026. Get more in-depth insight with JCB 100C-2 digger specifications. See information, like: Weight: 9.75t – Transport length: 6.86m – Transport width: 2.3m – Transport height: 2.706m – Track width: 450mm – Boom: MB and more.

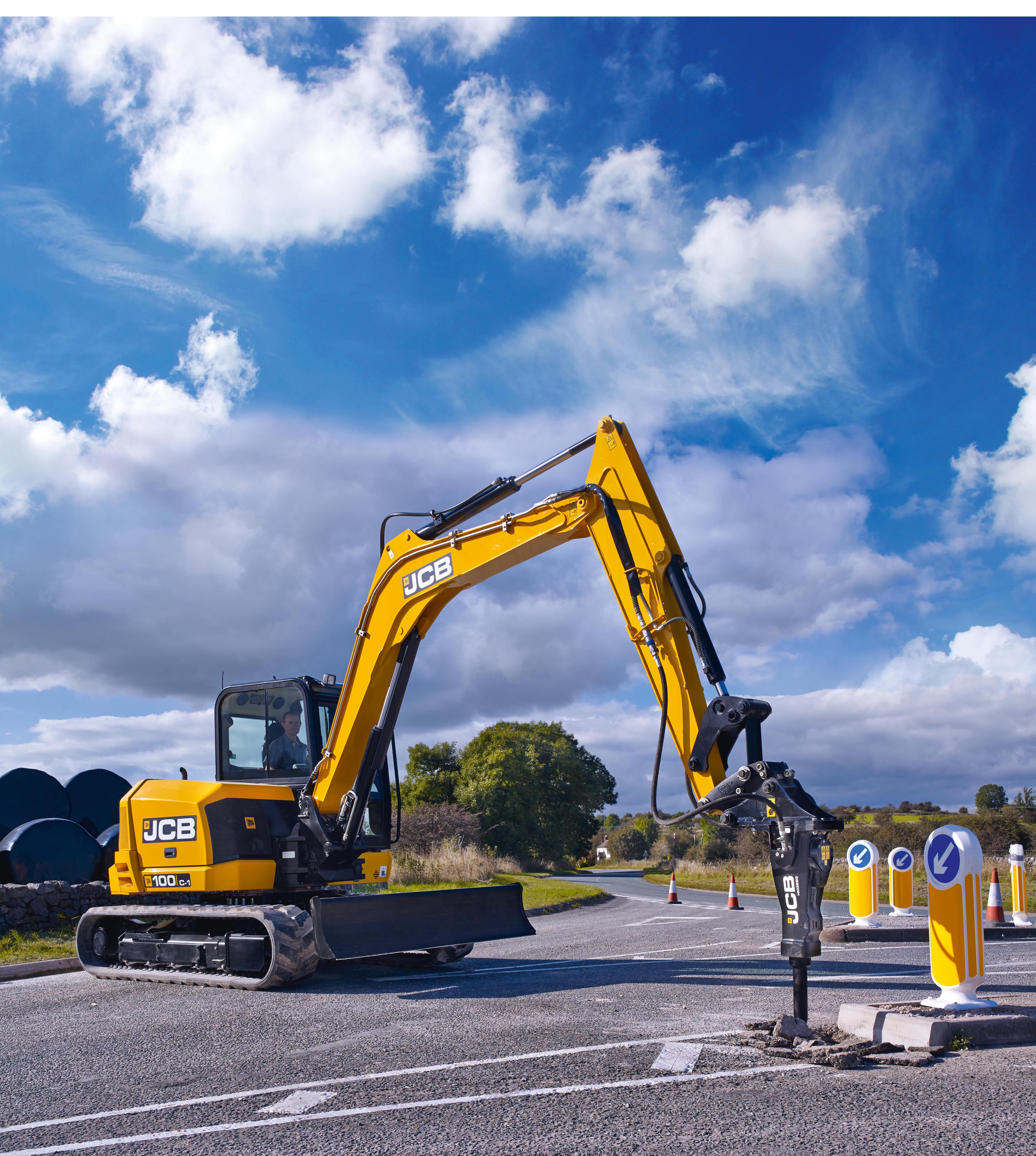

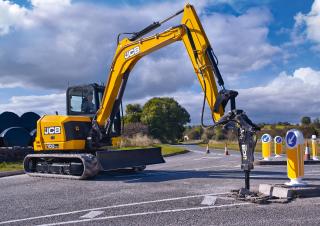

Crawler Excavators JCB 100C-2

Visit JCB live at

Technical specs - 100C-2 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.75 t
Transport length
6.86 m
Transport width
2.3 m
Transport height
2.706 m
Track width
450 mm
Boom
MB
Max. Reach horizontal
7.56 m
Dredging depth
5.09 m
Tear-out force
72.22 kN
Engine manuf.
Kohler
Engine type
KDI2504
Engine power
55 kW
Revolutions at max torque
1500 rpm
Max. torque
305/1500 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, model series, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

JCB 100C-2 FAQ

When was the JCB 100C-2 manufactured?

The JCB 100C-2 was first produced in 2019.

How much does the JCB 100C-2 weigh?

The JCB 100C-2 weighs 9.75 tons.

What are the transport dimensions of the JCB 100C-2 crawler excavator?

The JCB 100C-2 has a transport length of 6.86 meters, a width of 2.3 meters, and a height of 2.706 meters.

What is the track width of the JCB 100C-2's undercarriage?

The JCB 100C-2 has a track width of 450 mm.

What are the excavation performance specifications of the JCB 100C-2?

The JCB 100C-2 has a dredging depth of 5.09 meters, a maximum horizontal reach of 7.56 meters, and features a monobloc boom.

What is the tear-out force of the JCB 100C-2?

The JCB 100C-2 has a tear-out force of 72.22 kN.

How much is a JCB 100C-2 Crawler excavator (2019u20132025) worth?

The residual value of the JCB 100C-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
