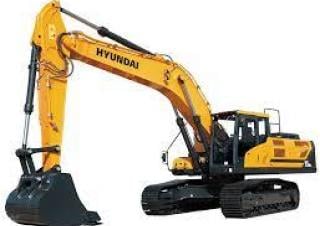

HX330L Hyundai excavator specs & Dimensions (2015 - 2020)

Hyundai HX330L is a Crawler Excavator manufactured from 2015 to 2020, with a weight of 33.5 tons. It features a track width of 600…

Hyundai HX330L is a Crawler Excavator manufactured from 2015 to 2020, with a weight of 33.5 tons. It features a track width of 600 mm, a transport length of 11.22 meters, a transport width of 3.28 meters, and a transport height of 3.38 meters. The excavator has a tear-out force of 155 kN, a dredging depth of 7.37 meters, and a maximum horizontal reach of 11.4 meters. It comes with a bucket width of 1.875 meters and a bucket capacity of 2.1 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, and an overload alert system.

Crawler Excavators Hyundai HX330L

Visit Hyundai live at

Technical specs - HX330L Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
33.5 t
Transport length
11.22 m
Transport width
3.28 m
Transport height
3.38 m
Bucket capacity
2.1 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.4 m
Dredging depth
7.37 m
Tear-out force
155 kN
Bucket width
1.875 m
Engine manuf.
Cummins
Engine type
QSL9
Engine power
224 kW
Displacement
8.9 l
Revolutions at max torque
1500 rpm
Max. torque
1425 Nm
No. of cylinders
6
Cylinder bore x stroke
114x145 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Hyundai HX330L FAQ

When was the Hyundai HX330L manufactured?

The Hyundai HX330L was manufactured from 2015 to 2020.

How much does the Hyundai HX330L weigh?

The Hyundai HX330L weighs 33.5 tons.

What are the transport dimensions of the Hyundai HX330L crawler excavator?

The Hyundai HX330L has a transport length of 11.22 meters, a transport width of 3.28 meters, and a transport height of 3.38 meters.

What are the undercarriage specifications of the Hyundai HX330L?

The Hyundai HX330L has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Hyundai HX330L?

The Hyundai HX330L has a dredging depth of 7.37 meters, a maximum horizontal reach of 11.4 meters, and features a Monobloc boom.

What is the tear-out force of the Hyundai HX330L?

The Hyundai HX330L has a tear-out force of 155 kN.

What are the bucket specifications of the Hyundai HX330L crawler excavator?

The Hyundai HX330L has a bucket capacity of 2.1 cubic meters and a bucket width of 1.875 meters.

How much is a Hyundai HX330L Crawler excavator (2015u20132020) worth?

The residual value of the Hyundai HX330L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
