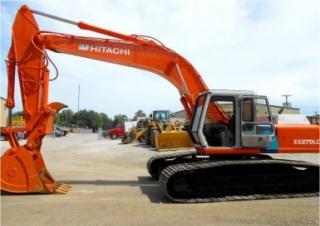

EX270 Hitachi excavator specs & Dimensions (1986 - 1991)

Hitachi EX270 is a crawler excavator manufactured from 1986 to 1991. It has a weight of 26.5 tons and a track width of 800 mm. The…

Hitachi EX270 is a crawler excavator manufactured from 1986 to 1991. It has a weight of 26.5 tons and a track width of 800 mm. The transport dimensions are 10.45 meters in length, 3.19 meters in width, and 3 meters in height. The machine features a tear-out force of 178 kN, a dredging depth of 7.87 meters, and a maximum horizontal reach of 11.15 meters. The bucket capacity is 1.62 cubic meters.

Crawler Excavators Hitachi EX270

Visit Hitachi live at

Technical specs - EX270 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26.5 t
Transport length
10.45 m
Transport width
3.19 m
Transport height
3 m
Bucket capacity
1.62 m³
Track width
800 mm
Max. Reach horizontal
11.15 m
Dredging depth
7.87 m
Tear-out force
178 kN
Engine manuf.
Hino
Engine type
H06CTi
Engine power
120 kW
Displacement
6.485 l
Revolutions at max torque
2100 rpm
Max. torque
588 Nm
No. of cylinders
6
Cylinder bore x stroke
108 x 113 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX270 FAQ

When was the Hitachi EX270 manufactured?

The Hitachi EX270 was manufactured from 1986 to 1991.

How much does the Hitachi EX270 weigh?

The Hitachi EX270 weighs 26.5 tons.

What are the transport dimensions of the Hitachi EX270?

The Hitachi EX270 has a transport length of 10.45 meters, a transport width of 3.19 meters, and a transport height of 3 meters.

What is the track width of the Hitachi EX270's undercarriage?

The Hitachi EX270 has a track width of 800 mm.

What are the dredging depth and maximum horizontal reach of the Hitachi EX270?

The Hitachi EX270 has a dredging depth of 7.87 meters and a maximum horizontal reach of 11.15 meters.

What is the tear-out force of the Hitachi EX270?

The Hitachi EX270 has a tear-out force of 178 kN.

What is the bucket capacity of the Hitachi EX270?

The bucket capacity of the Hitachi EX270 is 1.62 cubic meters.

How much is a Hitachi EX270 Crawler excavator (1986u20131991) worth?

The residual value of the Hitachi EX270 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hitachi EX270 overview

Engine

Hitachi's Total Control for Maximizing Performance

Hitachi's "Electronic Total control System" featuring E-P Control, OHS, FPS and Monitoring/alarm system achieves maximum job efficiency and reduces fuel consumption and noise.


Mode Selection

Hitachi's E-P Control (computer-aided Engine-Pump Control) system gives 3-mode selection. A microcomputer automatically controls engine and hydraulic output for maximum productivity and fuel savings.


Hydraulic and electronic system

Ohs

The advanced OHS (Optimum Hydraulic System) provides a high degree of independence. This enables quick and smooth operations.


Undercarriage

Simultaneous swing and straight-line travel

are made easy by the OHS which overcomes the natural machine tendency to curve during combined operations. This makes pipe positioning and laying faster and safer.


Simultaneous straight-line travel and boom/arm/bucket operations

are simple. The OHS overcomes curving during steep slope climbing, getting out of marshes and machine transport loading/unloading.


Cab

Advanced Cab

The new cab is totally human engineered to meet ISO standards. All-pressed, fully-independent rubber mounted construction achieves a quiet 70 db (A) (E-mode) noise level. The large bronze reinforced glass area assures good all-round visibility. Windows open wide to provide plenty of refreshing ventilation.
