EX215 Hitachi excavator specs & Dimensions (2021 - 2026)

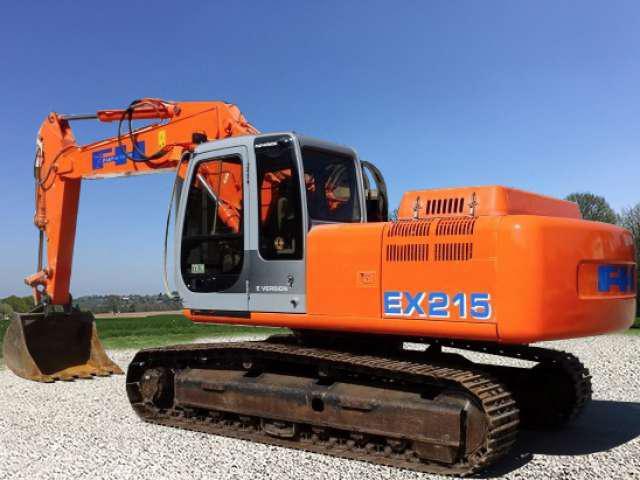

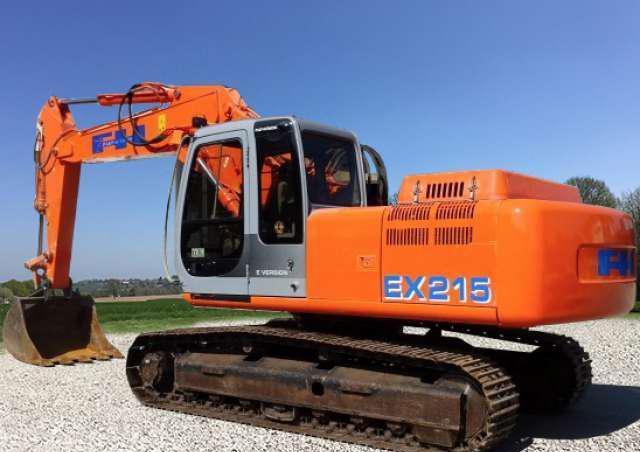

Hitachi EX215 is a crawler excavator manufactured since 2021. It has a weight of 21.25 tons and a track width of 600 mm. The trans…

Hitachi EX215 is a crawler excavator manufactured since 2021. It has a weight of 21.25 tons and a track width of 600 mm. The transport dimensions are 9.72 meters in length, 2.99 meters in width, and 2.85 meters in height. The maximum horizontal reach is 9.5 meters. The bucket width is 1.256 meters, with a bucket capacity ranging from 0.91 to 1 cubic meter.

Crawler Excavators Hitachi EX215

Visit Hitachi live at

Technical specs - EX215 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.25 t
Transport length
9.72 m
Transport width
2.99 m
Transport height
2.85 m
Bucket capacity min.
0.91 m³
Bucket capacity max.
1 m³
Track width
600 mm
Max. Reach horizontal
9.5 m
Bucket width
1.256 m
Model series
EX
Engine manuf.
Cummins
Engine type
6BT5.9C
Engine power
97.7 kW
Revolutions at max torque
1300 rpm
No. of cylinders
6

More technical details, like: bucket capacity, undercarriage, boom, dredging depth, tear-out force, dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX215 FAQ

When was the Hitachi EX215 manufactured?

The Hitachi EX215 was first produced in 2021.

How much does the Hitachi EX215 weigh?

The Hitachi EX215 weighs 21.25 tons.

What are the transport dimensions of the Hitachi EX215 crawler excavator?

The Hitachi EX215 has a transport length of 9.72 meters, a transport width of 2.99 meters, and a transport height of 2.85 meters.

What is the track width of the Hitachi EX215's undercarriage?

The Hitachi EX215 has a track width of 600 mm on its undercarriage.

What is the maximum horizontal reach of the Hitachi EX215 excavator?

The Hitachi EX215 excavator has a maximum horizontal reach of 9.5 meters.

What are the bucket specifications of the Hitachi EX215 crawler excavator?

The Hitachi EX215 has a bucket width of 1.256 meters, with a bucket capacity ranging from 0.91 to 1 cubic meters.

How much is a Hitachi EX215 Crawler excavator (2021u20132025) worth?

The residual value of the Hitachi EX215 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
