EX1200-6 Hitachi excavator specs & Dimensions (2009 - 2026)

Hitachi EX1200-6 is a crawler excavator manufactured since 2009, with a weight of 114 tons. It features a track width of 700 mm, a…

Hitachi EX1200-6 is a crawler excavator manufactured since 2009, with a weight of 114 tons. It features a track width of 700 mm, a transport width of 5 meters, and a transport height of 5 meters. The machine has a tear-out force of 709 kN and comes equipped with air conditioning.

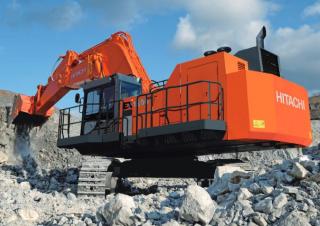

Crawler Excavators Hitachi EX1200-6
Crawler Excavators Hitachi EX1200-6
Crawler Excavators Hitachi EX1200-6
Crawler Excavators Hitachi EX1200-6

Visit Hitachi live at

Technical specs - EX1200-6 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
114 t
Transport width
5 m
Transport height
5 m
Bucket capacity
6.5 m³
Track width
700 mm
Max. Reach horizontal
11.5 m
Dredging depth
4.78 m
Tear-out force
709 kN
Bucket width
2.7 m
Model series
EX
Engine manuf.
Cummins
Engine type
QSK23C
Engine power
552 kW
Displacement
23.15 l
Emission level
Tier 2

More technical details, like: transport length, bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX1200-6 FAQ

When was the Hitachi EX1200-6 manufactured?

The Hitachi EX1200-6 was first produced in 2009.

How much does the Hitachi EX1200-6 weigh?

The Hitachi EX1200-6 weighs 114 tons.

What are the transport dimensions of the Hitachi EX1200-6?

The Hitachi EX1200-6 has a transport width of 5 meters and a transport height of 5 meters.

What is the track width of the Hitachi EX1200-6's undercarriage?

The Hitachi EX1200-6 has a track width of 700 mm on its undercarriage.

What are the excavation performance specifications of the Hitachi EX1200-6?

The Hitachi EX1200-6 has a dredging depth of 4.78 meters and a maximum horizontal reach of 11.5 meters.

What is the tear-out force of the Hitachi EX1200-6?

The Hitachi EX1200-6 has a tear-out force of 709 kN.

What are the specifications of the primary work tool bucket on the Hitachi EX1200-6?

The primary work tool bucket of the Hitachi EX1200-6 has a capacity of 6.5 cubic meters and a width of 2.7 meters.

How much is a Hitachi EX1200-6 Crawler excavator (2009u20132025) worth?

The residual value of the Hitachi EX1200-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
