ZX75US-5A Hitachi excavator specs & Dimensions (2021 - 2026)

Hitachi ZX75US-5A is a crawler excavator manufactured since 2021, with a weight of 8.68 tons. It features a track width of 450 mm,…

Hitachi ZX75US-5A is a crawler excavator manufactured since 2021, with a weight of 8.68 tons. It features a track width of 450 mm, a transport length of 6.37 meters, a transport width of 2.32 meters, and a transport height of 2.69 meters. The machine has a tear-out force of 38 kN, a dredging depth of 4.11 meters, and a maximum horizontal reach of 6.43 meters. The bucket width is 2.12 meters with a capacity of 0.28 cubic meters. Special equipment includes air conditioning and an overload alert system.

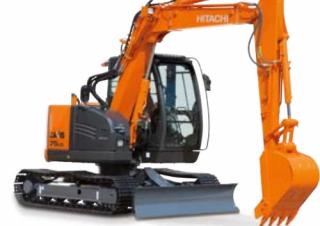

Crawler Excavators Hitachi ZX75US-5A
Crawler Excavators Hitachi ZX75US-5A
Crawler Excavators Hitachi ZX75US-5A
Crawler Excavators Hitachi ZX75US-5A

Visit Hitachi live at

Technical specs - ZX75US-5A Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.68 t
Transport length
6.37 m
Transport width
2.32 m
Transport height
2.69 m
Bucket capacity
0.28 m³
Track width
450 mm
Max. Reach horizontal
6.43 m
Dredging depth
4.11 m
Tear-out force
38 kN
Bucket width
2.12 m
Model series
ZAXIS
Engine manuf.
Yanmar
Engine type
4TNV94L
Engine power
34.1 kW
Displacement
3.053 l
Revolutions at max torque
1000 rpm
Max. torque
204.1 Nm
No. of cylinders
4
Cylinder bore x stroke
94x110 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi ZX75US-5A FAQ

When was the Hitachi ZX75US-5A manufactured?

The Hitachi ZX75US-5A was first produced in 2021.

How much does the Hitachi ZX75US-5A weigh?

The Hitachi ZX75US-5A weighs 8.68 tons.

What are the transport dimensions of the Hitachi ZX75US-5A crawler excavator?

The Hitachi ZX75US-5A has a transport length of 6.37 meters, a transport width of 2.32 meters, and a transport height of 2.69 meters.

What is the track width of the Hitachi ZX75US-5A crawler excavator?

The Hitachi ZX75US-5A crawler excavator has a track width of 450 mm.

What are the dredging depth and maximum horizontal reach of the Hitachi ZX75US-5A?

The Hitachi ZX75US-5A has a dredging depth of 4.11 meters and a maximum horizontal reach of 6.43 meters.

What are the power ratings of the Hitachi ZX75US-5A?

The source data does not provide power ratings for the Hitachi ZX75US-5A.

What are the bucket specifications of the Hitachi ZX75US-5A crawler excavator?

The Hitachi ZX75US-5A has a bucket capacity of 0.28 cubic meters and a bucket width of 2.12 meters.

How much is a Hitachi ZX75US-5A Crawler excavator (2021u20132025) worth?

The residual value of the Hitachi ZX75US-5A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hitachi ZX75US-5A overview

Hitachi ZX75US-5A features overview

Short Tail Swing and Ease of Control Boost Productivity in Tight Space

The ZAXIS 75US is a short rear-end swing type excavator for productive job in tight space. No more worrying about striking against surroundings. This increases productivity in confined areas and on narrow roads. The Hitachi hydraulic system, featuring excellent controllability, allows for quick response to varying job needs, like powerful excavation and smooth grading. The cab is full of new designs, including multifunction monitor and functional controls, for pleasant operation. The ZAXIS 75US is a fuel-thrifty machine too. The new electronically-controlled engine and new fuel-efficient hydraulics are adopted for less fuel consumption. The ZAXIS 75US will be your trusted partner when the going gets tough.


More Production with Less Fuel. Meeting Two Competing Needs

The ZAXIS 75US is a short rear-end swing type excavator for productive job in tight space. The upperstructure swings, rapidly or smooth, in response to changing job requirements through the advanced hydraulic technologies. The longer the operating hours, the higher the production.


Engine

9% Reduction in Fuel Consumption

99% Reduction in Fuel Consumption The new engine is teamed up with an electronic governor to save fuel. Electronic-control acceleration makes possible precision engine control and fuel saving. Fuel consumption comes down 9% from the conventional ZX75US-3. With a switch on the monitor, the operator can choose the ECO mode and the PWR mode. Select the ECO mode for fuel-efficient operation and the PWR mode for speedy, powerful operation.


Electric Fuel Refueling Pump (optional)

An optional electric fuel refueling pump is housed inside the right cover for easy refueling from a fuel drum.


Hydraulic and electronic system

Varied Jobs, Varied Options

The hose rupture valve (optional) is added to reduce oil leaks, and prevent the attachment from lowering, especially when a grapple or cutter is used, or when a front hose is punctured.


Upper Structure

Increased Front Speeds

The Hitachi hydraulic system has evolved even more to increase front speeds. Hydraulic lines and piping are streamlined to reduce resistance, increasing front speeds as follows: Arm roll-out speed: 28% up Arm roll-in speed: 14% up Boom lower speed: 16% up


Easy Cleaning

The radiator front is fitted with a dust-proof indoor net, which can swing out for quick cleaning. Air conditioner filters and air cleaner are also easy to clean. The X-beam track top is inclined steeply to let mud slide away smoothly.


Cab

ROPS-compliant Cab

The ROPS-compliant cab protects you from the potential risks of the job site. The Roll-over Protective Structure (ROPS) is designed to protect the operator in the unlikely event of the machine tipping or rolling over. When getting in the Hitachi cab, the operator will feel comfortable and confident. There are plenty of refinements and improvements in the cab. The seat and console are redesigned for easy operation. The operator does not feel confined through wide glass windows and door. A drink holder with hot and cool function, along with a lot more air outlets, are arranged to enhance operator comfort. A seat belt, pilot-controlled shutoff lever, swing parking brake, and travel parking brake are provided standard for safe operation. Additionally, the neutral engine start feature enhances safety, allowing the engine to start only when the shutoff lever is in its lock position.
