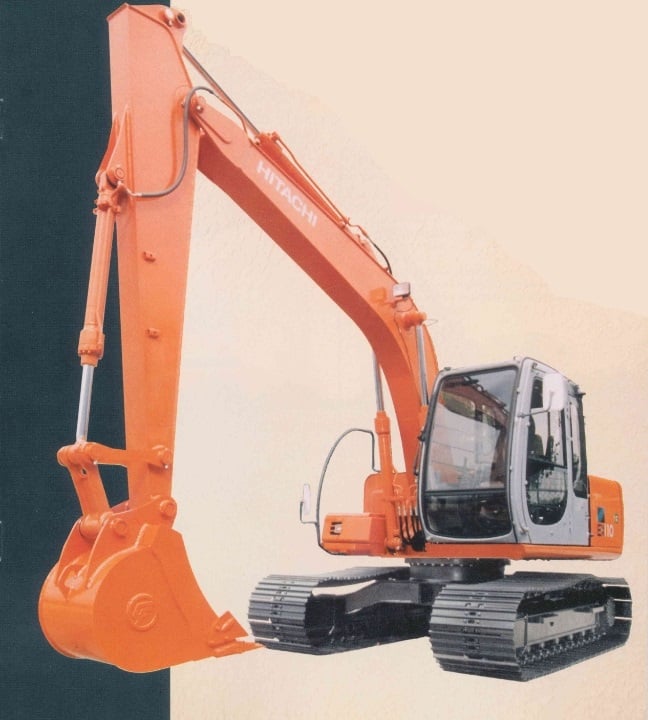

EX110 Hitachi excavator specs & Dimensions (1998 - 2003)

Putting Technology To Work

The EX110 is smoother, faster and more powerful than its predecessor, the EX100. It's very trailerable, easy to get into tight applications, yet extremely productive. The EX110 features the most advanced computerized horsepower and control system available: Hitachi's exclusive Dash-5 system. The controls are responsive; in fact, infinitely controllable. The machine's power and balance are exciting.

Features

The updated work modes provide power in the order of inherent priority to do the best job for the project at hand. The Hitachi EX110 has excellent multi-function features which allow multiple jobs such as travel, swing and boom raise all at the same time without any one function stopping. The Super EX110, as with all Hitachi excavator models, is built to maximize performance, reliability, and operator comfort through optimum design and quality components. The Isuzu engine is matched to the hydraulic pump for outstanding multiple function performance. The undercarriage, carbody and front attachment are all balanced and designed for maximum strength. All of this means that your Hitachi EX110 will work economically and productively for years and for thousands of hours at minimum operating costs.

Work Modes For Increased Performance

The four work modes have been enhanced from prior models. The General Purpose Mode is appropriate for general digging and truck loading. All circuits work together. The Grading Mode provides priority to the combined operation of boom raise, stick forward and bucket adjust while limiting control response so that the movement is smooth. The Precision Mode keeps the front attachment moving precisely and slowly. The Attachment Mode is designed to automatically match the oil flow requirements of selected attachments such as a hydraulic hammer. Additional piping is required (optional).

Outstanding Traction Force

The traction force has been increased to 19,600 lbf (8,900 kgf) for improved movement through mud and over obstacles.

Enhanced E-P Pump Control

A sophisticated micro-computer system guided by multiple actuators is exclusively standard on the EX110. Hitachi is renowned for the smooth operation of its excavators and this model is no exception. The new Dash-5 controls provide quick, accurate response to multi-function swing-lift-bucket curl operations.

Perfectly Matched Hydraulic System

Hitachi expertly matches the engine to the hydraulic pumps and control valves for the best response and longest life possible. The pumps are designed to work specifically with the Isuzu engine – regardless of rpm or work load.

Super Strong Piping

Hitachi is legendary for its strong, long-lasting hydraulic hose, piping and fittings. This provides outstanding reliability and cleanliness.

H/P and E Modes For Increased Efficiency

The Normal mode is for normal or average applications. The engine runs at an efficient maximum speed for longest life and general economy. The hydraulic pump runs at a baseline 100%. The H/P mode provides the full power of the EX110 on command. This function increases engine rpm by 6% when activated, thus providing 5% more horsepower when needed – 80 hp (59 kW). Engine rpm automatically increases when the arm-in function meets resistance and automatically switches back to normal rpm and 76 hp (57 kW) when resistance is overcome for fuel savings. The E mode provides 94% of full power while providing 15% more fuel efficiency. It is appropriate for light-duty work because it allows you to work longer before refueling.

Enhanced Cooling Protection

The EX110 features a 4.9 U.S. gallon (18.4 liter) radiator coolant tank, a tightly fitting fan shroud and a high capacity fan. The radiator fins are easily cleaned, and the coolant level is easily checked from the ground during normal inspection.

Round Hydraulic Tank

A round hydraulic tank provides superior circulation of the hydraulic oil so that it’s kept cleaner and more evenly cooled.

Hydraulic Filters

Hydraulic circuits use high quality hydraulic filters. A suction filter is incorporated in the suction line, and 10 micron full-flow filters in the return line and swing/travel motor drain lines.

Longer-Life Undercarriage

Hitachi undercarriages feature premium grade tracks with large track links fitted with struts for added durability. Pin seals prevent dirt in the bushings and reduce inner wear. The tracks feature heavy-duty track links, front idlers, upper/lower rollers and track center guard.

Operator's Cab

Independent roomy cab, 40" (1 005 mm) wide by 66" (1 665 mm) high, conforming to ISO Standards. Reinforced windows on 4 sides for excellent visibility. Front windows (upper and lower) are openable. Adjustable, reclining seat with armrests; movable with or without control levers.

Optional Equipment

Hose rupture valves Electric fuel refilling pump Swing motion alarm device with lamp Additional pump Piping kit for extra valve port Pre-cleaner Tropical cover One-point ripper for ripping hardpan Clamshell bucket for deep vertical excavations such as manholes, pilings, footings, etc. Slope-finishing blade for slope finishing jobs, including scraping up or down, compacting, leveling, grading, etc. Front glass lower guard Air conditioning Hot & Cool box.
