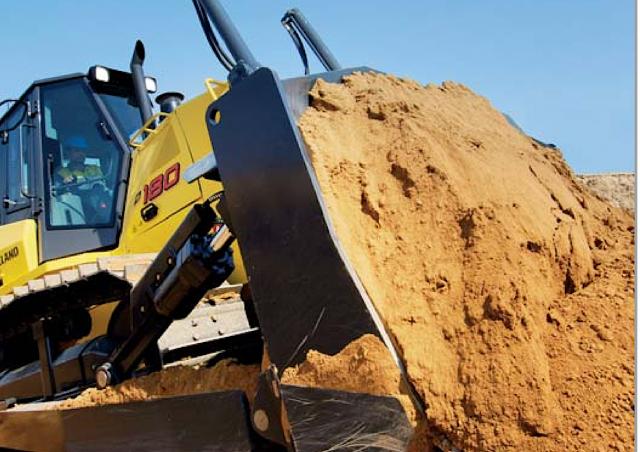

New Holland D180B LT Specifications & Technical Data (2008-2015)

Technical specs - D180B LT New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 20.53 t

Transport length: 5.815 m

Transport width: 4.087 m

Transport height: 3.24 m

Blade type: SU

Soil pressure: 0.623 kg/cm²

Track width: 610 mm

Travel speed: 10.9 km/h

Front blade width: 3.5 m

Model series: D

Engine manuf.: CNH

Engine type: 667TA

Engine power: 145 kW

Displacement: 6.7 l

Revolutions at max torque: 1400 rpm

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, engine manufacturer, engine model, emission rating...

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, transmission type, carrier rollers, track rollers, raised sprocket, shoe - width, shoe - type, number of shoes, service brake type, height - max, height - top of rops, ground clearance, width - over tracks, track length - on ground, length - no blade, blade, blade - width, blade - height, blade - dig depth, blade - lift clearance, blade - tilt, steering - differential, steering - clutches and brakes, fuel tank, blade - capacity, ground bearing pressure, implement pump - flow, implement pump - pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: Yes
Tilt device: Yes
Aircondition: Yes

Download datasheets (PDF)

New Holland D180B LT FAQ

When was the New Holland D180B LT manufactured?

The New Holland D180B LT was manufactured from 2008 to 2015.

How much does the New Holland D180B LT bulldozer weigh?

The New Holland D180B LT bulldozer weighs 20.53 tons.

What are the transport dimensions of the New Holland D180B LT bulldozer?

The New Holland D180B LT has a transport length of 5.82 meters, a transport width of 4.09 meters, and a transport height of 3.24 meters.

What is the travel speed of the New Holland D180B LT bulldozer?

The New Holland D180B LT bulldozer has a travel speed of 10.9 km/h.

What are the undercarriage specifications of the New Holland D180B LT bulldozer?

The New Holland D180B LT bulldozer has a track width of 610 mm and a soil pressure of 0.623 kg/cmu00b2.

What are the blade specifications of the New Holland D180B LT bulldozer?

The New Holland D180B LT bulldozer is equipped with a semi-U-blade that has a front blade width of 3.5 meters.

How much is a New Holland D180B LT Bulldozer (2008u20132015) worth?

The residual value of the New Holland D180B LT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
