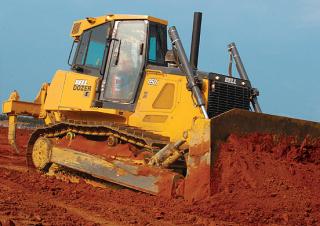

Bell 850J Specifications & Technical Data (2017-2023)

Rate this machine now!

Weight: 20.8t – Transport length: 5.377m – Transport width: 2.4m – Transport height: 3.18m – Blade type: B – Soil pressure: 52.5kg/cm²

Technical specs - 850J Bell


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 20.8 t
  • Transport length 5.377 m
  • Transport width 2.4 m
  • Transport height 3.18 m
  • Blade type B
  • Soil pressure 52.5 kg/cm²
  • Track width 610 mm
  • Travel speed 11 km/h
  • Front blade width 3.251 m
  • Model series J
  • Engine manuf. John Deere
  • Engine type  PowerTech Plus™ PVX 6068
  • Engine power 152 kW
  • Displacement 6 l
  • Max. torque 915 Nm
  • No. of cylinders 6
  • Emission level Tier 2

More technical details, like: average fuel consumption, fuel consumption range (min - max), reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

  • Diesel particulate filter
  • Rear ripper
  • Tilt device
  • Aircondition
