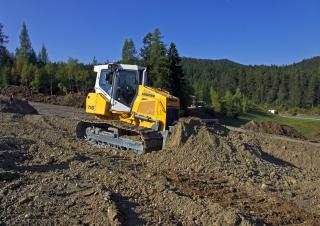

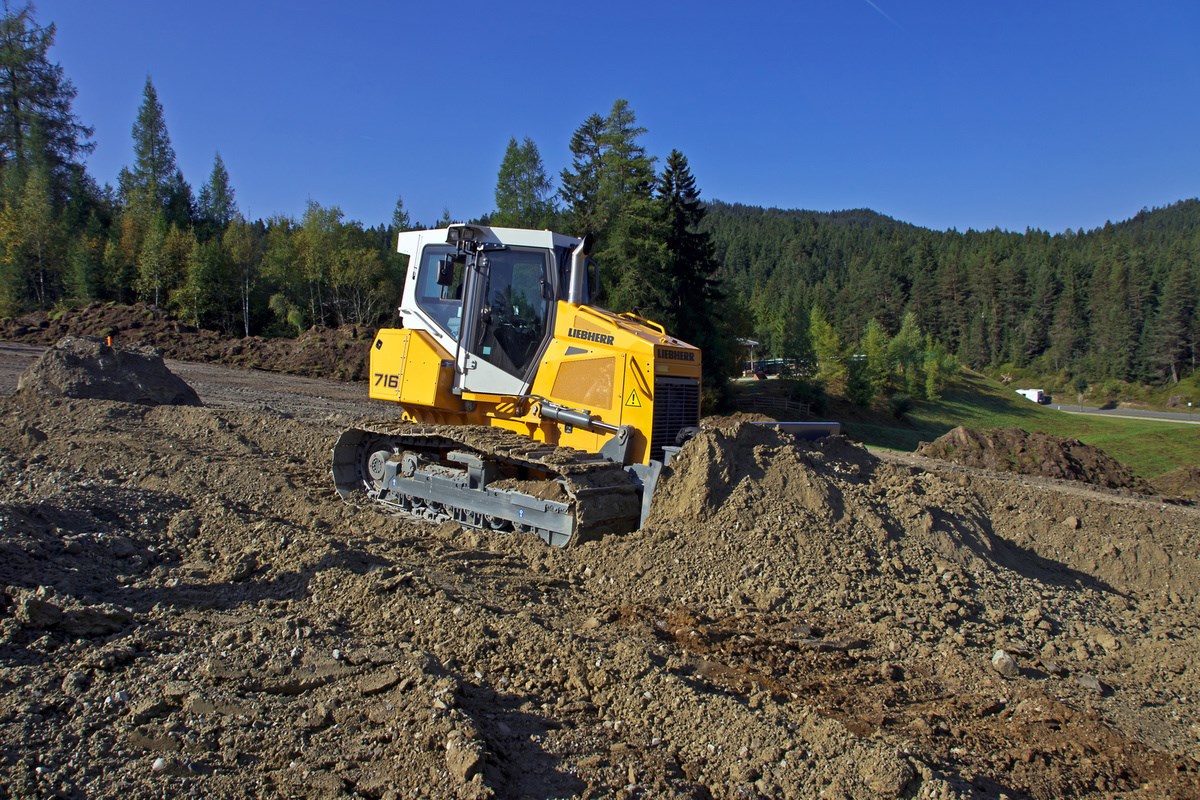

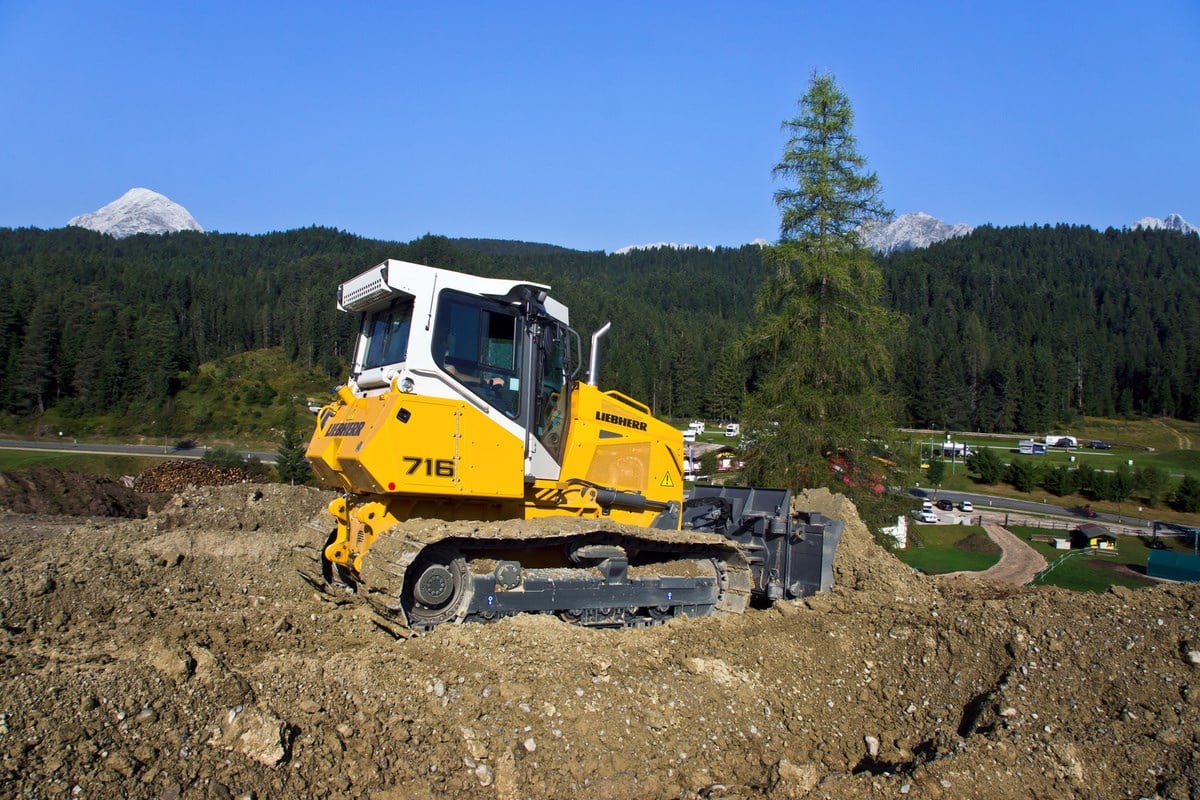

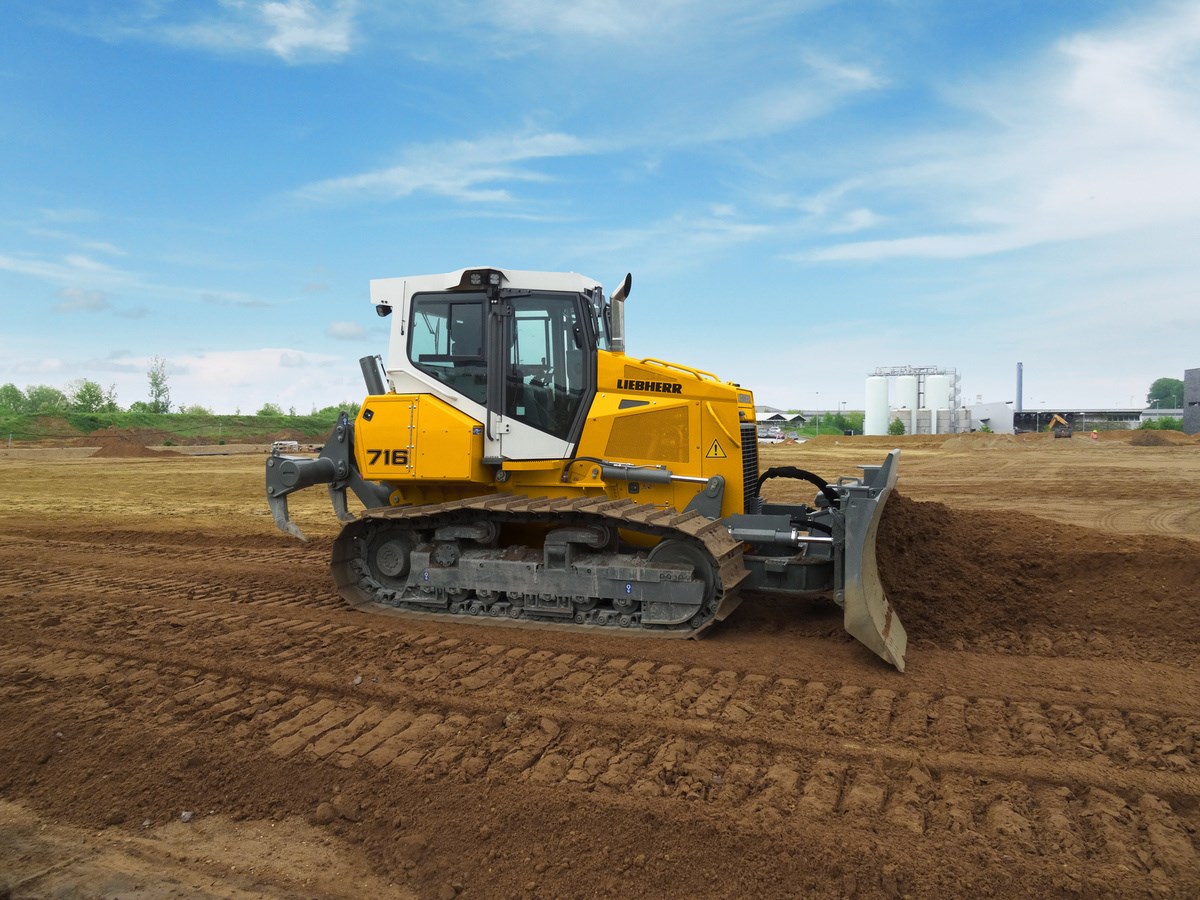

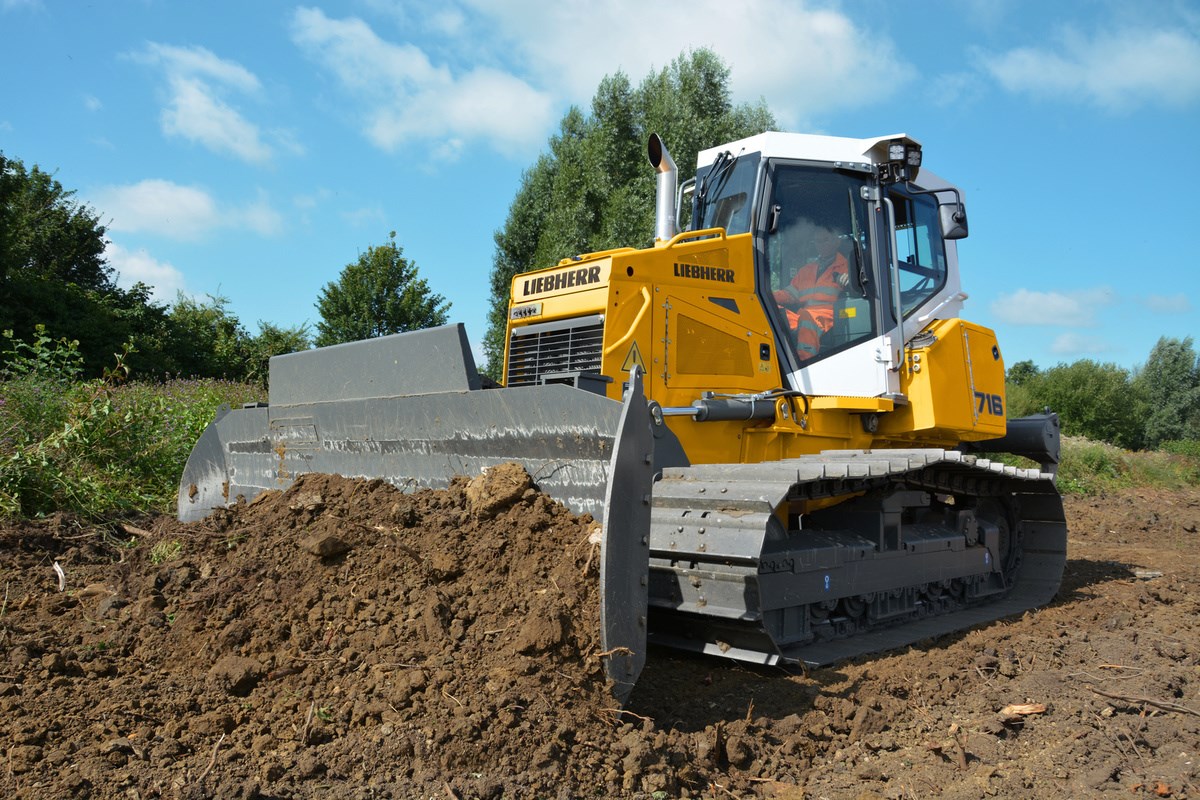

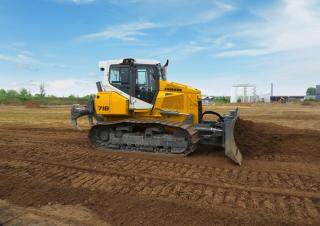

Liebherr PR 716 LGP Specifications & Technical Data (2016-2021)

Technical specs - PR 716 LGP Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 13.9 t

Transport length: 3.66 m

Transport width: 2.74 m

Transport height: 3.01 m

Blade type: PAT

Soil pressure: 0.36 kg/cm²

Track width: 762 mm

Travel speed: 10 km/h

Front blade width: 3.51 m

Model series: PR

Engine manuf.: Liebherr

Engine type: D924 A7

Engine power: 93 kW

Displacement: 4.6 l

Revolutions at max torque: 2100 rpm

No. of cylinders: 4

Emission level: IV

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, cylinder bore x stroke, undercarriage type, undercarriage system, traction control system, cab - type, rops, fops...

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, cylinder bore x stroke, undercarriage type, undercarriage system, traction control system, cab - type, rops, fops, rear view system available, platform, telematics available, platform, grade control available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, transmission type, speed mode - 1, carrier rollers, track rollers, raised sprocket, shoe - width, shoe - type, number of shoes, service brake type, height - max, height - top of rops, ground clearance, width - over tracks, track length - on ground, length - no blade, blade, blade - width, blade - height, blade - dig depth, blade - lift clearance, blade - tilt, fuel tank, blade - capacity, speed - forward maximum, speed - reverse maximum, ground bearing pressure, implement pump - flow, implement pump - pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: No
Tilt device: Yes
Aircondition: Yes

Download datasheets (PDF)

Liebherr PR 716 LGP FAQ

When was the Liebherr PR 716 LGP manufactured?

The Liebherr PR 716 LGP was manufactured from 2016 to 2021.

How much does the Liebherr PR 716 LGP weigh?

The Liebherr PR 716 LGP weighs 13.9 tons.

What are the transport dimensions of the Liebherr PR 716 LGP bulldozer?

The Liebherr PR 716 LGP bulldozer has a transport length of 3.66 meters, a transport width of 2.74 meters, and a transport height of 3.01 meters.

What is the travel speed of the Liebherr PR 716 LGP bulldozer?

The Liebherr PR 716 LGP bulldozer has a travel speed of 10 km/h.

What are the undercarriage specifications of the Liebherr PR 716 LGP bulldozer?

The Liebherr PR 716 LGP bulldozer has a track width of 762 mm and a soil pressure of 0.36 kg/cmu00b2.

What are the specifications of the primary work tool on the Liebherr PR 716 LGP bulldozer?

The Liebherr PR 716 LGP bulldozer is equipped with a 6-way blade that has a front blade width of 3.51 meters.

How much is a Liebherr PR 716 LGP Bulldozer (2016u20132021) worth?

The residual value of the Liebherr PR 716 LGP depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
