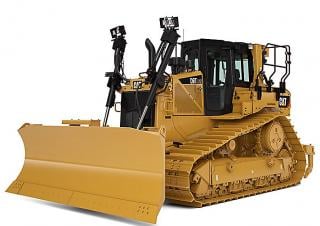

Caterpillar D6T Specifications & Technical Data (2019-2026)

Technical specs - D6T Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 19.43 t

Transport length: 3.66 m

Transport width: 2.64 m

Transport height: 3.19 m

Blade type: SU

Travel speed: 11.4 km/h

Reverse travel speed: 14.6 km/h

Front blade width: 3.26 m

Transmission type: LS

Model series: D

Engine manuf.: Caterpillar

Engine type: C9 Acert

Engine power: 138 kW

Displacement: 8.8 l

Cylinder bore x stroke: 112x149 mm

Emission level: Tier 3/ IIIA

More technical details, like: soil pressure, track width, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: Yes
Tilt device: No
Aircondition: Yes

Download specalog and datasheets (PDF)

D6T Caterpillar Specification for Latin America (EN)

Caterpillar D6T FAQ

When was the Caterpillar D6T manufactured?

The Caterpillar D6T was first produced in 2019.

How much does the Caterpillar D6T bulldozer weigh?

The Caterpillar D6T bulldozer weighs 19.43 tons.

What are the transport dimensions of the Caterpillar D6T bulldozer?

The Caterpillar D6T bulldozer has a transport length of 3.66 meters, a transport width of 2.64 meters, and a transport height of 3.19 meters.

What are the travel speeds of the Caterpillar D6T bulldozer?

The Caterpillar D6T bulldozer has a travel speed of 11.4 km/h and a reverse travel speed of 14.6 km/h.

What are the power ratings of the Caterpillar D6T?

There is no power rating information available for the Caterpillar D6T in the provided data.

What are the specifications of the primary work blade on the Caterpillar D6T?

The Caterpillar D6T is equipped with a semi-U-blade that has a front blade width of 3.26 meters.

How much is a Caterpillar D6T Bulldozer (2019u20132025) worth?

The residual value of the Caterpillar D6T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
