PV 60.2 Palazzani PV 60.2 Specifications & Technical Data (2009—2014)

The Palazzani PV 60.2 is a backhoe loader manufactured by Palazzani from 2009 to 2014. It has a weight of 6.2 tons and a transport…

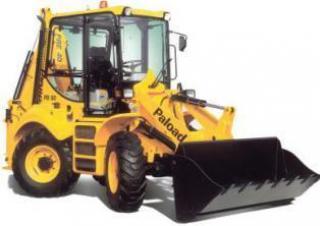

The Palazzani PV 60.2 is a backhoe loader manufactured by Palazzani from 2009 to 2014. It has a weight of 6.2 tons and a transport length of 5.33 meters. The bucket capacity is 0.8 cubic meters, with a tear-out force of 65 kilonewtons. It can dredge up to a depth of 4.2 meters and has a bucket width of 2 meters. The maximum discharge height is 4.5 meters, and it has a maximum reach horizontal of 4.7 meters. The transport width is 2 meters, and the transport height is 3.1 meters. It is equipped with special equipment including a clamshell and outrigger stabilizers.

PV 60.2

Years of manufacture: 2009—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - PV 60.2 Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.2 t

Standard tyres: 14.5x20

Bucket width: 2 m

Bucket capacity: 0.8 m³

Drive: A

Transport length: 5.33 m

Transport width: 2 m

Transport height: 3.1 m

Tear-out force: 65 kN

Max. Reach horizontal: 4.7 m

Dredging depth: 4.2 m

Max. discharge height: 4.5 m

Model series: PV

Engine manuf.: Perkins

Engine type: 1104D-44T

Engine power: 75 kW

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, reach from slew pivot - non-extending dipper, loading height - non-extending dipper, dump height - general purpose, fuel tank, shovel capacity - standard general purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: Yes
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

Palazzani PV 60.2 FAQ

When was the Palazzani PV 60.2 manufactured?

The Palazzani PV 60.2 was manufactured from 2009 to 2014.

How much does the Palazzani PV 60.2 backhoe loader weigh?

The Palazzani PV 60.2 backhoe loader weighs 6.2 tons.

What are the transport dimensions of the Palazzani PV 60.2 backhoe loader?

The Palazzani PV 60.2 has a transport length of 5.33 meters, a transport width of 2 meters, and a transport height of 3.1 meters.

What are the undercarriage specifications of the Palazzani PV 60.2 backhoe loader?

The Palazzani PV 60.2 has an all-wheel drive system and is equipped with standard tyres sized 14.5x20.

What are the excavation performance specifications of the Palazzani PV 60.2 backhoe loader?

The Palazzani PV 60.2 has a dredging depth of 4.2 meters and a maximum horizontal reach of 4.7 meters.

What is the tear-out force of the Palazzani PV 60.2 backhoe loader?

The Palazzani PV 60.2 backhoe loader has a tear-out force of 65 kN.

What is the maximum discharge height for material handling of the Palazzani PV 60.2?

The Palazzani PV 60.2 has a maximum discharge height of 4.5 meters for material handling.

What are the specifications of the primary work tool on the Palazzani PV 60.2 backhoe loader?

The primary work tool of the Palazzani PV 60.2 has a bucket capacity of 0.8 cubic meters and a bucket width of 2 meters.
