PB 50.2 Palazzani PB 50.2 Specifications & Technical Data (2006—2017)

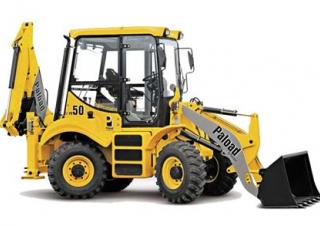

The Palazzani PB 50.2 is a backhoe loader manufactured by Palazzani from 2006 to 2017. It has a weight of 5.5 tons and a transport…

The Palazzani PB 50.2 is a backhoe loader manufactured by Palazzani from 2006 to 2017. It has a weight of 5.5 tons and a transport length of 5.08 meters. The bucket capacity is 0.75 cubic meters, with a tear-out force of 50.37 kilonewtons. It can dredge up to a depth of 3.65 meters and has a bucket width of 1.9 meters. The maximum discharge height is 2.9 meters, and it has a maximum reach horizontal of 4.25 meters. The transport width and height are both 1.9 and 3.08 meters respectively. This construction machine is equipped with special equipment including a clamshell and outrigger stabilizers.

Backhoe Loaders Palazzani PB 50.2
Backhoe Loaders Palazzani PB 50.2
Backhoe Loaders Palazzani PB 50.2
Backhoe Loaders Palazzani PB 50.2

Visit Palazzani live at

Technical specs - PB 50.2 Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.5 t
Standard tyres
12.5 R18
Bucket width
1.9 m
Bucket capacity
0.75 m³
Drive
A
Transport length
5.08 m
Transport width
1.9 m
Transport height
3.08 m
Tear-out force
50.37 kN
Max. Reach horizontal
4.25 m
Dredging depth
3.65 m
Max. discharge height
2.9 m
Model series
PB
Engine manuf.
Perkins
Engine type
804V-33T
Engine power
55 kW
Displacement
3.331 l
Revolutions at max torque
2600 rpm

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration...

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, reach from slew pivot - non-extending dipper, loading height - non-extending dipper, dump height - general purpose, fuel tank, shovel capacity - standard general purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Palazzani PB 50.2 FAQ

When was the Palazzani PB 50.2 manufactured?

The Palazzani PB 50.2 was manufactured from 2006 to 2017.

How much does the Palazzani PB 50.2 weigh?

The Palazzani PB 50.2 weighs 5.5 tons.

What are the transport dimensions of the Palazzani PB 50.2 backhoe loader?

The Palazzani PB 50.2 has a transport length of 5.08 meters, a transport width of 1.9 meters, and a transport height of 3.08 meters.

What are the undercarriage specifications of the Palazzani PB 50.2 backhoe loader?

The Palazzani PB 50.2 features an all-wheel drive system and is equipped with standard 12.5 R18 tyres.

What are the dredging depth and maximum horizontal reach of the Palazzani PB 50.2 backhoe loader?

The Palazzani PB 50.2 has a dredging depth of 3.65 meters and a maximum horizontal reach of 4.25 meters.

What are the power ratings of the Palazzani PB 50.2 backhoe loader?

No power rating information is available for the Palazzani PB 50.2 backhoe loader in the provided data.

What is the maximum discharge height of the Palazzani PB 50.2 backhoe loader?

The Palazzani PB 50.2 backhoe loader has a maximum discharge height of 2.9 meters.

What are the bucket specifications of the Palazzani PB 50.2 backhoe loader?

The Palazzani PB 50.2 has a bucket capacity of 0.75 cubic meters and a bucket width of 1.9 meters.

How much is a Palazzani PB 50.2 Backhoe loader (2006u20132017) worth?

The residual value of the Palazzani PB 50.2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
