545 Case 545 Specifications & Technical Data (1995—1999)

Model rating
1,00 / 10

The Case 545 Backhoe Loader, manufactured by Case from 1995 to 1999, is a construction machine with a weight of 4.7 tons. It has a…

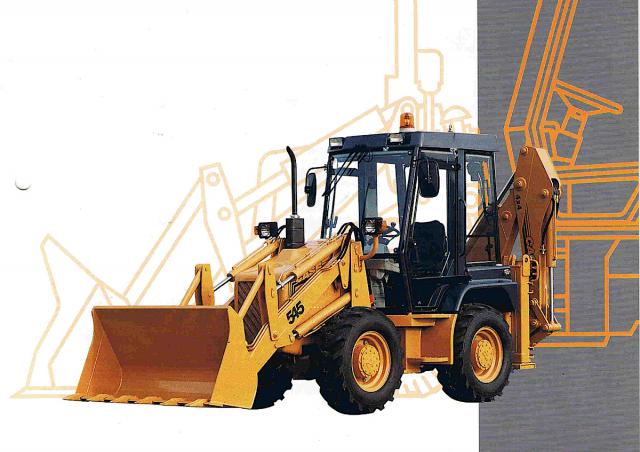

The Case 545 Backhoe Loader, manufactured by Case from 1995 to 1999, is a construction machine with a weight of 4.7 tons. It has a transport length of 4.67 meters, a bucket capacity of 0.6 cubic meters, a transport width of 1.6 meters, and a transport height of 2.46 meters.

Backhoe Loaders Case 545

Technical specs - 545 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.7 t
Standard tyres
12.0-18
Bucket capacity
0.6 m³
Drive
A
Transport length
4.67 m
Transport width
1.6 m
Transport height
2.46 m
Engine manuf.
Perkins
Engine type
504-2 T
Engine power
39 kW

More technical details, like: bucket width, bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket width, bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Case 545 FAQ

When was the Case 545 backhoe loader manufactured?

The Case 545 backhoe loader was manufactured from 1995 to 1999.

What is the weight of the Case 545 backhoe loader?

The Case 545 backhoe loader weighs 4.7 tons.

What are the transport dimensions of the Case 545 backhoe loader?

The Case 545 backhoe loader has a transport length of 4.67 meters, a transport width of 1.6 meters, and a transport height of 2.46 meters.

What are the undercarriage specifications of the Case 545 backhoe loader?

The Case 545 backhoe loader features an all-wheel drive system and standard tyres sized 12.0-18.

What is the bucket capacity of the Case 545 backhoe loader?

The Case 545 backhoe loader has a bucket capacity of 0.6 cubic meters.
