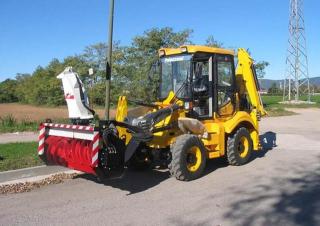

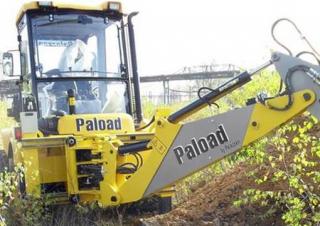

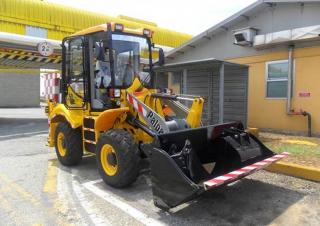

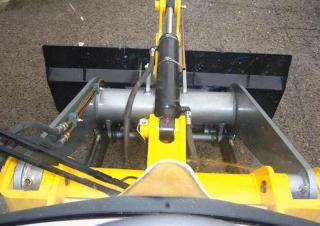

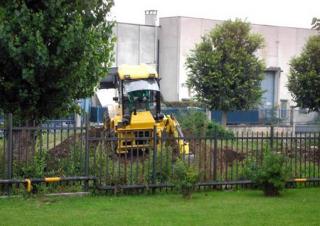

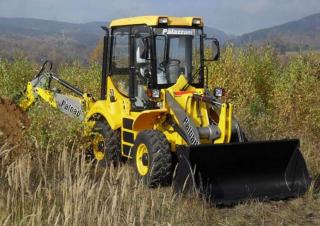

PB 50 Palazzani PB 50 Specifications & Technical Data (2006—2017)

The Palazzani PB 50 is a backhoe loader manufactured by Palazzani from 2006 to 2017. It has a weight of 5.5 tons and a transport l…

The Palazzani PB 50 is a backhoe loader manufactured by Palazzani from 2006 to 2017. It has a weight of 5.5 tons and a transport length of 5.08 meters. The bucket capacity is 0.75 cubic meters, with a tear-out force of 51.4 kilonewtons. It can dredge up to a depth of 3.65 meters and has a bucket width of 1.9 meters. The maximum discharge height is 4.25 meters, and it has a maximum reach horizontal of 4.35 meters. The transport width and height are both 1.9 meters and 2.83 meters respectively. This construction machine is equipped with special equipment including a clamshell and outrigger stabilizers.

PB 50

Years of manufacture: 2006—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - PB 50 Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 5.5 t

Standard tyres: 365/70 R18

Bucket width: 1.9 m

Bucket capacity: 0.75 m³

Drive: A

Transport length: 5.08 m

Transport width: 1.9 m

Transport height: 2.83 m

Tear-out force: 51.4 kN

Max. Reach horizontal: 4.35 m

Dredging depth: 3.65 m

Max. discharge height: 4.25 m

Model series: PB

Engine manuf.: Perkins

Engine type: 804C-33T

Engine power: 55 kW

Displacement: 3.3 l

Revolutions at max torque: 2600 rpm

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: Yes
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

Palazzani PB 50 FAQ

When was the Palazzani PB 50 manufactured?

The Palazzani PB 50 was manufactured from 2006 to 2017.

How much does the Palazzani PB 50 weigh?

The Palazzani PB 50 weighs 5.5 tons.

What are the transport dimensions of the Palazzani PB 50 backhoe loader?

The Palazzani PB 50 has a transport length of 5.08 meters, a transport width of 1.9 meters, and a transport height of 2.83 meters.

What are the undercarriage specifications of the Palazzani PB 50 backhoe loader?

The Palazzani PB 50 features an all-wheel drive system and comes equipped with standard tyres sized 365/70 R18.

What are the dredging depth and maximum horizontal reach of the Palazzani PB 50 backhoe loader?

The Palazzani PB 50 has a dredging depth of 3.65 meters and a maximum horizontal reach of 4.35 meters.

What is the tear-out force of the Palazzani PB 50 backhoe loader?

The Palazzani PB 50 backhoe loader has a tear-out force of 51.4 kN.

What is the material handling capacity of the Palazzani PB 50 in terms of maximum discharge height?

The Palazzani PB 50 has a maximum discharge height of 4.25 meters.

What are the specifications of the primary work tool bucket on the Palazzani PB 50?

The primary work tool bucket of the Palazzani PB 50 has a capacity of 0.75 cubic meters and a width of 1.9 meters.

How much is a Palazzani PB 50 Backhoe loader (2006u20132017) worth?

The residual value of the Palazzani PB 50 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
