TA 350 Terex TA 350 Specifications & Technical Data (2010—2011)

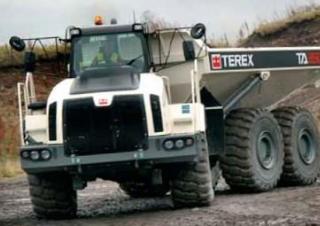

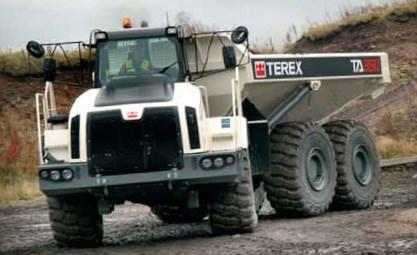

Manufactured by Terex, this is the TA 350 articulated dump truck. Find and download detailed specs and data sheets for this machin…

Manufactured by Terex, this is the TA 350 articulated dump truck. Find and download detailed specs and data sheets for this machine here.

This articulated dump truck is built to provide up to 298kW or 399 horse power, delivered from its powerful MTU engine to the 30.4t TA 350 machine. This Terex articulated dump truck belongs to the biggest machine segment in the articulated dump trucks category. The model's dimensions are 10.944m x 3.206m x 3.888m.

The TA 350 is manufactured and distributed with Aircondition. Bin heating, Diesel particulate filter and Tailgate are not provided on this model as of 2011. There are more detailed specifications and machine descriptions available in the original Terex TA 350 specs data sheet. You can download it for free in German on LECTURA Specs.

This model can be acquired for a list price between €390000 and €496000. Production of the TA 350 stopped in 2011. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 3 other articulated dump trucks, which range from 22.2t up to 30.8t are produced by Terex. Of these, TA 400, TA 250 and also TA 300 are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Terex TA 350 specs data sheet on LECTURA Specs today!

TA 350

Years of manufacture: 2010—2011

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TA 350 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 30.4 t

Standard tyres: 26.5 R 25

Dump capacity: 21 m³

Travel speed: 53.9 km/h

Net load: 34 t

Transport length: 10.944 m

Transport width: 3.206 m

Transport height: 3.888 m

Turning radius outside: 9.19 m

Loading height: 2.97 m

Model series: TA

Engine manuf.: MTU

Engine type: Serie 60

Engine power: 298 kW

Displacement: 14 l

Revolutions at max torque: 1200 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, transmission manufacturer, transmission model, final drive, tyre - size, front suspension - type, front suspension, rear suspension - type, rear suspension, service brake - type, length - overall, height - over cab, height - max, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, hoist - type, hoist - angle, articulation angle, turning radius - outside, turning radius - inside, fuel tank, heaped capacity, cycle time - raise, unladen axle load - front, unladen axle load - rear, laden axle load - front, laden axle load - rear, speed - forward maximum, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: No
Tailgate: No
Aircondition: Yes

Download datasheets (PDF)

TA 350 Terex Specification for Europe (DE)

Terex TA 350 FAQ

When was the Terex TA 350 manufactured?

The Terex TA 350 was manufactured from 2010 to 2011.

How much does the Terex TA 350 weigh?

The Terex TA 350 weighs 30.4 tons.

What are the transport dimensions of the Terex TA 350 articulated dump truck?

The Terex TA 350 has a transport length of 10.94 meters, a transport width of 3.21 meters, and a transport height of 3.89 meters.

What is the travel speed of the Terex TA 350 articulated dump truck?

The Terex TA 350 articulated dump truck has a travel speed of 53.9 km/h.

What are the undercarriage specifications of the Terex TA 350 articulated dump truck?

The Terex TA 350 articulated dump truck is equipped with standard tyres sized 26.5 R 25.

What is the turning radius of the Terex TA 350 articulated dump truck?

The Terex TA 350 has an outside turning radius of 9.19 meters.

What is the material handling capacity of the Terex TA 350 articulated dump truck?

The Terex TA 350 articulated dump truck has a net load capacity of 34 tons, a dump capacity of 21 cubic meters, and a loading height of 2.97 meters.
