TA 400 Terex TA 400 Specifications & Technical Data (2010—2017)

Model rating: 10,00 / 10

Terex is the manufacturer of the articulated dump truck model TA 400. Find and download detailed specs and data sheets for this ma…

Terex is the manufacturer of the articulated dump truck model TA 400. Find and download detailed specs and data sheets for this machine here.

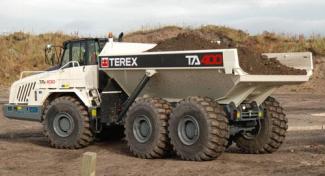

The Terex TA 400 is a 30.8t machine with Scania engine which powers this model with up to 331kW or 443 horse power. The TA 400 is categorised in the biggest machine segment in the articulated dump trucks category. The model's dimensions are 11.055m x 3.36m x 3.945m.

The TA 400 is manufactured and distributed with Aircondition. It has been sold without air Diesel particulate filter, Tailgate and Central lubrication as of 2017. There are more detailed specifications and machine descriptions available in the original Terex TA 400 specs data sheet. You can download it for free in English, Russian and German on LECTURA Specs.

This model can be acquired for a list price between €466000 and €593000. Production of the TA 400 continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Terex models of this type on LECTURA Specs are the TA 250 and TA 300, and 2 other articulated dump trucks, which currently range from 22.2t up to 22.5t are also available. This TA 400 articulated dump truck, which has been in production between 2010 and 2017 ranks in the LECTURA index at #4. Want more detailed specifications? Download the latest Terex TA 400 specs data sheet on LECTURA Specs today!

TA 400

Years of manufacture: 2010—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TA 400 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 30.8 t

Standard tyres: 29.5 R 25

Dump capacity: 23.3 m³

Travel speed: 60 km/h

Net load: 38 t

Transport length: 11.055 m

Transport width: 3.36 m

Transport height: 3.945 m

Turning radius outside: 9.19 m

Loading height: 3.14 m

Model series: TA

Engine manuf.: Scania

Engine type: DC 13

Engine power: 331 kW

Displacement: 12.7 l

Revolutions at max torque: 2100 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, transmission manufacturer, transmission model, final drive, tyre - size, tyre - type, front suspension - type, front suspension, rear suspension - type, rear suspension, service brake - type, length - overall, height - over cab, height - max, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, hoist - type, hoist - angle, articulation angle, turning radius - outside, fuel tank, heaped capacity, cycle time - raise, unladen axle load - front, unladen axle load - centre, unladen axle load - rear, unladen axle load - centre + rear, laden axle load - front, laden axle load - centre, laden axle load - rear, laden axle load - centre + rear, front - unladen, rear - unladen, front - laden, rear - laden, speed - forward maximum, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: No
Tailgate: No
Aircondition: Yes

Download datasheets (PDF)

Terex TA 400 FAQ

When was the Terex TA 400 manufactured?

The Terex TA 400 was manufactured from 2010 to 2017.

How much does the Terex TA 400 weigh?

The Terex TA 400 weighs 30.8 tons.

What are the transport dimensions of the Terex TA 400 articulated dump truck?

The Terex TA 400 has a transport length of 11.06 meters, a transport width of 3.36 meters, and a transport height of 3.95 meters.

What is the travel speed of the Terex TA 400 articulated dump truck?

The Terex TA 400 has a travel speed of 60 km/h.

What are the undercarriage specifications of the Terex TA 400 articulated dump truck?

The Terex TA 400 articulated dump truck is equipped with standard tyres sized 29.5 R 25.

What is the turning radius of the Terex TA 400 articulated dump truck?

The Terex TA 400 has an outside turning radius of 9.19 meters.

What is the material handling capacity of the Terex TA 400 articulated dump truck?

The Terex TA 400 has a net load capacity of 38 tons, a dump capacity of 23.3 cubic meters, and a loading height of 3.14 meters.

How much is a Terex TA 400 Articulated dump truck (2010u20132017) worth?

The residual value of the Terex TA 400 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
