TA 300 Terex TA 300 Specifications & Technical Data (2010—2017)

The TA 300 articulated dump truck model is manufactured by Terex. Find and download detailed specs and data sheets for this machin…

The TA 300 articulated dump truck model is manufactured by Terex. Find and download detailed specs and data sheets for this machine here.

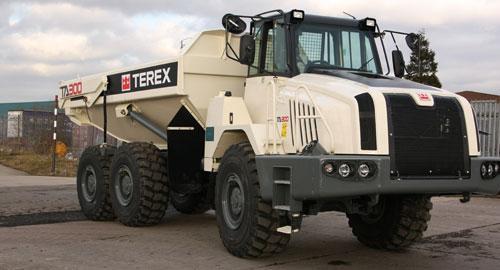

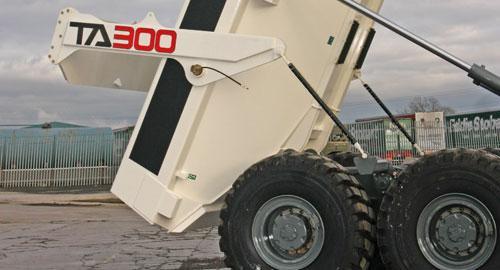

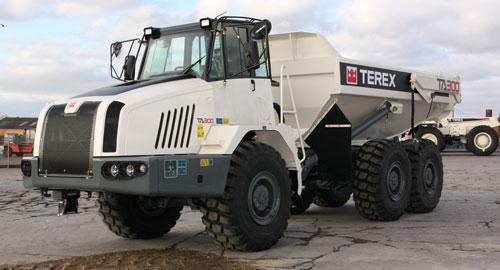

The Terex TA 300 is a 22.5t machine with Scania engine which powers this model with up to 276kW or 370 horse power. This Terex articulated dump truck belongs to the medium sized machine segment in the articulated dump trucks category. The TA 300’s size is 2.895m x 9.755m x 3.45m.

The TA 300 is manufactured and distributed with Aircondition. It has been sold without air Central lubrication, Diesel particulate filter and Bin heating as of 2017. There are more detailed specifications and machine descriptions available in the original Terex TA 300 specs data sheet. Specification sheet is available for a free download in German, English and Russian - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €345000 and €439000. Production of the TA 300 continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Terex currently produces 2 other articulated dump trucks, which range from 22.2t up to 30.8t - the most visited on LECTURA Specs are TA 400, TA 250. Ranked in the LECTURA index at #5, this TA 300 articulated dump truck has models that date from 2010 to 2017. We can see currently about 2 models of the TA 300 articulated dump truck with an average age of 5 years and average price of €152500. Want more detailed specifications? Download the latest Terex TA 300 specs data sheet on LECTURA Specs today!

TA 300

Years of manufacture: 2010—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TA 300 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 22.5 t

Standard tyres: 23.5 R 25

Dump capacity: 17.5 m³

Travel speed: 50.4 km/h

Net load: 28 t

Transport length: 9.755 m

Transport width: 2.895 m

Transport height: 3.45 m

Turning radius outside: 8.47 m

Loading height: 2.9 m

Model series: TA

Engine manuf.: Scania

Engine type: DC 9

Engine power: 276 kW

Displacement: 9.3 l

Revolutions at max torque: 1300 rpm

Max. torque: 1873 Nm

No. of cylinders: 5

Cylinder bore x stroke: 130x140 mm

Emission level: IV

More technical details, like: dimension lxwxh, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, transmission manufacturer, transmission model, final drive, tyre - size, tyre - type, front suspension - type, front suspension, rear suspension - type, rear suspension, service brake - type, length - overall, height - over cab, height - max, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, hoist - type, hoist - angle, articulation angle, turning radius - outside, fuel tank, heaped capacity, cycle time - raise, unladen axle load - front, unladen axle load - centre, unladen axle load - rear, unladen axle load - centre + rear, laden axle load - front, laden axle load - centre, laden axle load - rear, laden axle load - centre + rear, front - unladen, rear - unladen, front - laden, rear - laden, speed - forward maximum, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: No
Tailgate: No
Aircondition: Yes

Download datasheets (PDF)

Terex TA 300 FAQ

When was the Terex TA 300 manufactured?

The Terex TA 300 was manufactured from 2010 to 2017.

How much does the Terex TA 300 weigh?

The Terex TA 300 weighs 22.5 tons.

What are the transport dimensions of the Terex TA 300 articulated dump truck?

The Terex TA 300 has a transport length of 9.76 meters, a transport width of 2.9 meters, and a transport height of 3.45 meters.

What is the travel speed of the Terex TA 300 articulated dump truck?

The Terex TA 300 articulated dump truck has a travel speed of 50.4 km/h.

What are the undercarriage specifications of the Terex TA 300 articulated dump truck?

The Terex TA 300 articulated dump truck is equipped with standard tyres sized 23.5 R 25.

What is the turning radius of the Terex TA 300 articulated dump truck?

The Terex TA 300 has an outside turning radius of 8.47 meters.

What is the material handling capacity of the Terex TA 300 articulated dump truck?

The Terex TA 300 has a net load capacity of 28 tons, a dump capacity of 17.5 cubic meters, and a loading height of 2.9 meters.

How much is a Terex TA 300 Articulated dump truck (2010u20132017) worth?

The residual value of the Terex TA 300 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
