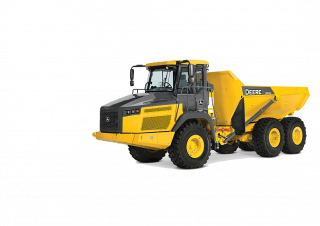

260E John Deere Construction 260E Specifications & Technical Data (2017—2026)
Technical specs - 260E John Deere Construction
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 22.49 t
- Standard tyres
- 23.5 R25
- Transport length
- 9.74 m
- Transport width
- 2.87 m
- Transport height
- 3.66 m
- Model series
- E
- Engine manuf.
- John Deere
- Engine type
- PowerTech PSS 6090
- Engine power
- 239 kW
- Displacement
- 9 l
- Revolutions at max torque
- 1900 rpm
- Max. torque
- 1543 Nm
- No. of cylinders
- 6
- Emission level
- Teir 4/EU IV
More technical details, like: dump capacity, travel speed, net load, turning radius outside, loading height, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
No
Download datasheets (PDF)
