TA 30-7 Terex TA 30-7 Specifications & Technical Data (2006—2010)

The TA 30-7 articulated dump truck model is manufactured by Terex. Find and download detailed specs and data sheets for this machi…

The TA 30-7 articulated dump truck model is manufactured by Terex. Find and download detailed specs and data sheets for this machine here.

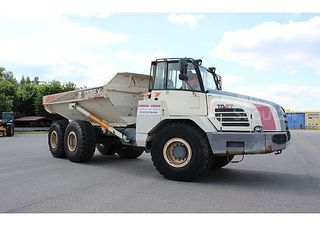

This articulated dump truck is built to provide up to 287kW or 384 horse power, delivered from its powerful Cummins engine to the 22.5t TA 30-7 machine. This Terex articulated dump truck belongs to the medium sized machine segment in the articulated dump trucks category. The model's dimensions are 9.76m x 2.9m x 3.45m.

The Terex TA 30-7 has been equipped and sold with Aircondition. It does not include Tailgate, Diesel particulate filter and Central lubrication. There are more detailed specifications and machine descriptions available in the original Terex TA 30-7 specs data sheet.

This model can be acquired for a list price between €274000 and €349000. Production of the TA 30-7 stopped in 2010. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Terex currently produces 3 other articulated dump trucks, which range from 22.2t up to 30.8t - the most visited on LECTURA Specs are TA 250, TA 300, TA 400. Want more detailed specifications? Download the latest Terex TA 30-7 specs data sheet on LECTURA Specs today!

TA 30-7

Years of manufacture: 2006—2010

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TA 30-7 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 22.5 t

Standard tyres: 23.5 R 25

Dump capacity: 17.5 m³

Travel speed: 50.4 km/h

Net load: 28 t

Transport length: 9.76 m

Transport width: 2.9 m

Transport height: 3.45 m

Turning radius outside: 8.47 m

Loading height: 2.9 m

Model series: TA

Engine manuf.: Cummins

Engine type: QSM11

Engine power: 287 kW

Displacement: 10.8 l

Revolutions at max torque: 1400 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, transmission manufacturer, final drive, tyre - size, tyre - type, front suspension - type, front suspension, rear suspension - type, rear suspension, service brake - type, length - overall, height - over cab, height - max, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, hoist - type, hoist - angle, articulation angle, turning radius - outside, turning radius - inside, fuel tank, heaped capacity, cycle time - raise, unladen axle load - front, unladen axle load - centre, unladen axle load - rear, unladen axle load - centre + rear, laden axle load - front, laden axle load - centre, laden axle load - rear, laden axle load - centre + rear, speed - forward maximum, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: No
Tailgate: No
Aircondition: Yes

Terex TA 30-7 FAQ

When was the Terex TA 30-7 manufactured?

The Terex TA 30-7 was manufactured from 2006 to 2010.

How much does the Terex TA 30-7 weigh?

The Terex TA 30-7 weighs 22.5 tons.

What are the transport dimensions of the Terex TA 30-7 articulated dump truck?

The Terex TA 30-7 has a transport length of 9.76 meters, a transport width of 2.9 meters, and a transport height of 3.45 meters.

What is the travel speed of the Terex TA 30-7 articulated dump truck?

The Terex TA 30-7 has a travel speed of 50.4 km/h.

What is the standard tyre size of the Terex TA 30-7 articulated dump truck?

The Terex TA 30-7 articulated dump truck has standard tyres sized 23.5 R 25.

What is the turning radius of the Terex TA 30-7 articulated dump truck?

The Terex TA 30-7 has an outside turning radius of 8.47 meters.

What is the material handling capacity of the Terex TA 30-7 articulated dump truck?

The Terex TA 30-7 has a net load capacity of 28 tons, a dump capacity of 17.5 cubic meters, and a loading height of 2.9 meters.

How much is a Terex TA 30-7 Articulated dump truck (2006u20132010) worth?

The residual value of the Terex TA 30-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
