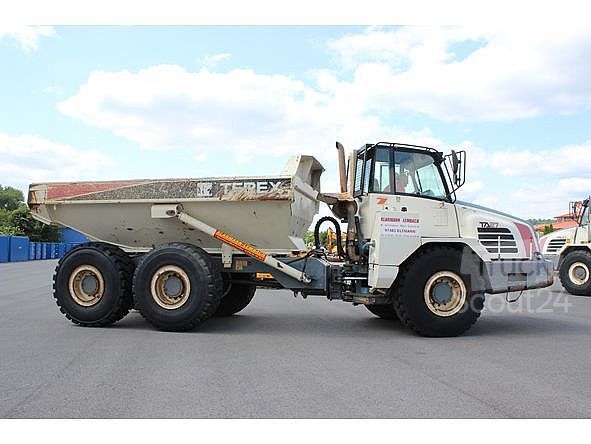

TA 27-7 Terex TA 27-7 Specifications & Technical Data (2008—2010)

The TA 27-7 articulated dump truck model is manufactured by Terex. Find and download detailed specs and data sheets for this machi…

The TA 27-7 articulated dump truck model is manufactured by Terex. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Cummins engine, this TA 27-7 22.2t machine can provide 272kW or 364 horse power for the articulated dump truck. The TA 27-7 is categorised in the medium sized machine segment in the articulated dump trucks category. The model's dimensions are 9.76m x 2.9m x 3.45m.

The Terex TA 27-7 has been equipped and sold with Aircondition. Central lubrication, Tailgate and Bin heating are not provided on this model as of 2010. There are more detailed specifications and machine descriptions available in the original Terex TA 27-7 specs data sheet.

The production stopped in 2010, where this TA 27-7 was available at a new list price between €243000 and €309000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 3 other articulated dump trucks, which range from 22.2t up to 30.8t are produced by Terex. Of these, TA 250, TA 400 and also TA 300 are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Terex TA 27-7 specs data sheet on LECTURA Specs today!

TA 27-7

Years of manufacture: 2008—2010

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TA 27-7 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 22.2 t

Standard tyres: 23.5 R 25

Dump capacity: 15.5 m³

Travel speed: 50.4 km/h

Net load: 25 t

Transport length: 9.76 m

Transport width: 2.9 m

Transport height: 3.45 m

Turning radius outside: 8.47 m

Loading height: 2.74 m

Model series: TA

Engine manuf.: Cummins

Engine type: QSM11

Engine power: 272 kW

Displacement: 10.8 l

Revolutions at max torque: 1400 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, transmission manufacturer, transmission model, final drive, tyre - size, tyre - type, front suspension - type, front suspension, rear suspension - type, rear suspension, service brake - type, length - overall, height - over cab, height - max, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, hoist - type, hoist - angle, articulation angle, turning radius - outside, turning radius - inside, fuel tank, heaped capacity, cycle time - raise, unladen axle load - front, unladen axle load - centre, unladen axle load - rear, unladen axle load - centre + rear, laden axle load - front, laden axle load - centre, laden axle load - rear, laden axle load - centre + rear, speed - forward maximum, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: No
Tailgate: No
Aircondition: Yes

Terex TA 27-7 FAQ

When was the Terex TA 27-7 manufactured?

The Terex TA 27-7 was manufactured from 2008 to 2010.

How much does the Terex TA 27-7 weigh?

The Terex TA 27-7 weighs 22.2 tons.

What are the transport dimensions of the Terex TA 27-7 articulated dump truck?

The Terex TA 27-7 has a transport length of 9.76 meters, a transport width of 2.9 meters, and a transport height of 3.45 meters.

What is the travel speed of the Terex TA 27-7 articulated dump truck?

The Terex TA 27-7 has a travel speed of 50.4 km/h.

What is the standard tyre size of the Terex TA 27-7 articulated dump truck?

The Terex TA 27-7 articulated dump truck has standard tyres sized 23.5 R 25.

What is the turning radius of the Terex TA 27-7 articulated dump truck?

The Terex TA 27-7 has an outside turning radius of 8.47 meters.

What is the material handling capacity of the Terex TA 27-7 articulated dump truck?

The Terex TA 27-7 has a net load capacity of 25 tons, a dump capacity of 15.5 cubic meters, and a loading height of 2.74 meters.

How much is a Terex TA 27-7 Articulated dump truck (2008u20132010) worth?

The residual value of the Terex TA 27-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
