4100 Multi Basis Steyr 4100 Multi Basis Specifications & Technical Data (2016—2021)

The Steyr 4100 Multi Basis is a 4-wheel drive tractor manufactured by Steyr from 2016 to 2021. It has a weight of 4.39 tons and is…

The Steyr 4100 Multi Basis is a 4-wheel drive tractor manufactured by Steyr from 2016 to 2021. It has a weight of 4.39 tons and is powered by an engine with a capacity of 73 kW. The tractor has a transport length of 4.403 meters and can travel at a speed of 40 km/h. It has a transport width of 2.1 meters and a transport height of 2.74 meters. The tractor is equipped with special equipment such as air conditioning and a cabin.

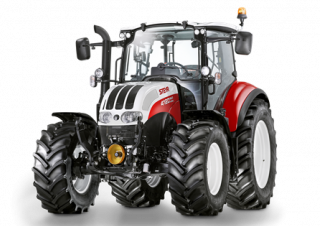

4WD Tractors Steyr 4100 Multi Basis
4WD Tractors Steyr 4100 Multi Basis
4WD Tractors Steyr 4100 Multi Basis
4WD Tractors Steyr 4100 Multi Basis
4WD Tractors Steyr 4100 Multi Basis
4WD Tractors Steyr 4100 Multi Basis

Technical specs - 4100 Multi Basis Steyr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
73 kW
Model series
Multi
Back tyres
540/65 R34
Front tyres
440/65 R24
Transport length
4.403 m
Transport width
2.1 m
Transport height
2.74 m
Travel speed
40 km/h
Transmission type
LS
Weight
4.39 t
Steering
h
Engine manuf.
k.A.
Engine type
k.A.
Displacement
3.4 l
Revolutions at max torque
2200 rpm
Max. torque
430/1500 Nm
No. of cylinders
4
Emission level
IV

More technical details, like: transmission, control unit, three point category, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
Yes

Download datasheets (PDF)

Steyr 4100 Multi Basis FAQ

When was the Steyr 4100 Multi Basis manufactured?

The Steyr 4100 Multi Basis was manufactured from 2016 to 2021.

What is the weight of the Steyr 4100 Multi Basis?

The Steyr 4100 Multi Basis has a weight of 4.39 tonnes.

What are the physical dimensions of the Steyr 4100 Multi Basis tractor?

The Steyr 4100 Multi Basis tractor has a transport length of 4.4 meters, a transport width of 2.1 meters, and a transport height of 2.74 meters.

What is the engine power of the Steyr 4100 Multi Basis?

The Steyr 4100 Multi Basis has an engine power of 73 kW.

What is the travel speed of the Steyr 4100 Multi Basis?

The Steyr 4100 Multi Basis has a travel speed of 40 km/h.

What type of transmission does the Steyr 4100 Multi Basis have?

The Steyr 4100 Multi Basis is equipped with a Powershift transmission.

What type of steering does the Steyr 4100 Multi Basis have?

The Steyr 4100 Multi Basis has hydraulic steering.

What are the wheel and tyre specifications of the Steyr 4100 Multi Basis?

The Steyr 4100 Multi Basis has front tyres sized 440/65 R24 and back tyres sized 540/65 R34.

How much is a Steyr 4100 Multi Basis 4WD Tractor (2016u20132021) worth?

The residual value of the Steyr 4100 Multi Basis depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
