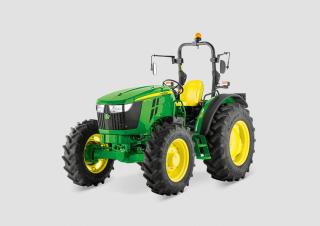

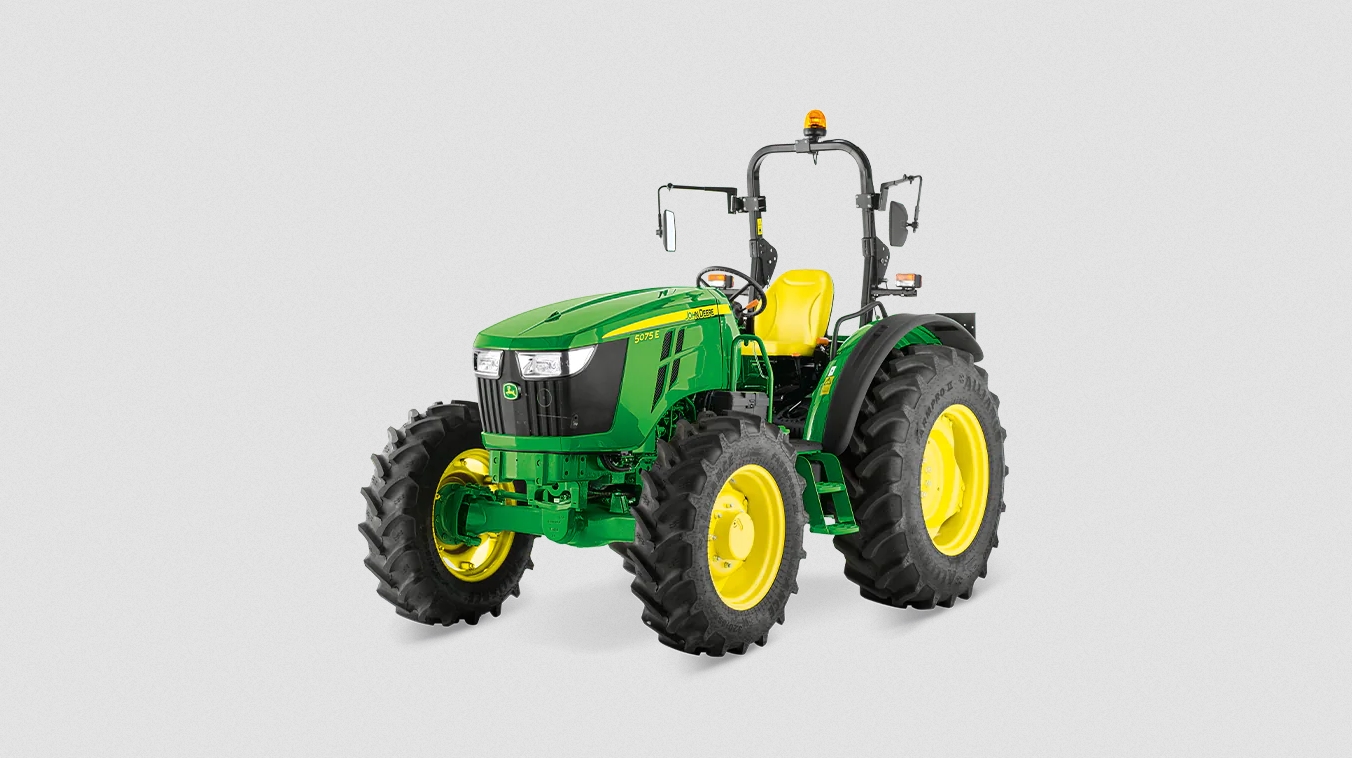

John Deere 5075E Specifications & Technical Data (2020-2024)

Rate this machine now!

The John Deere 5075E is a 4-wheel drive tractor manufactured by John Deere since 2020. It has a weight of 3.32 tons and is powered... Read more

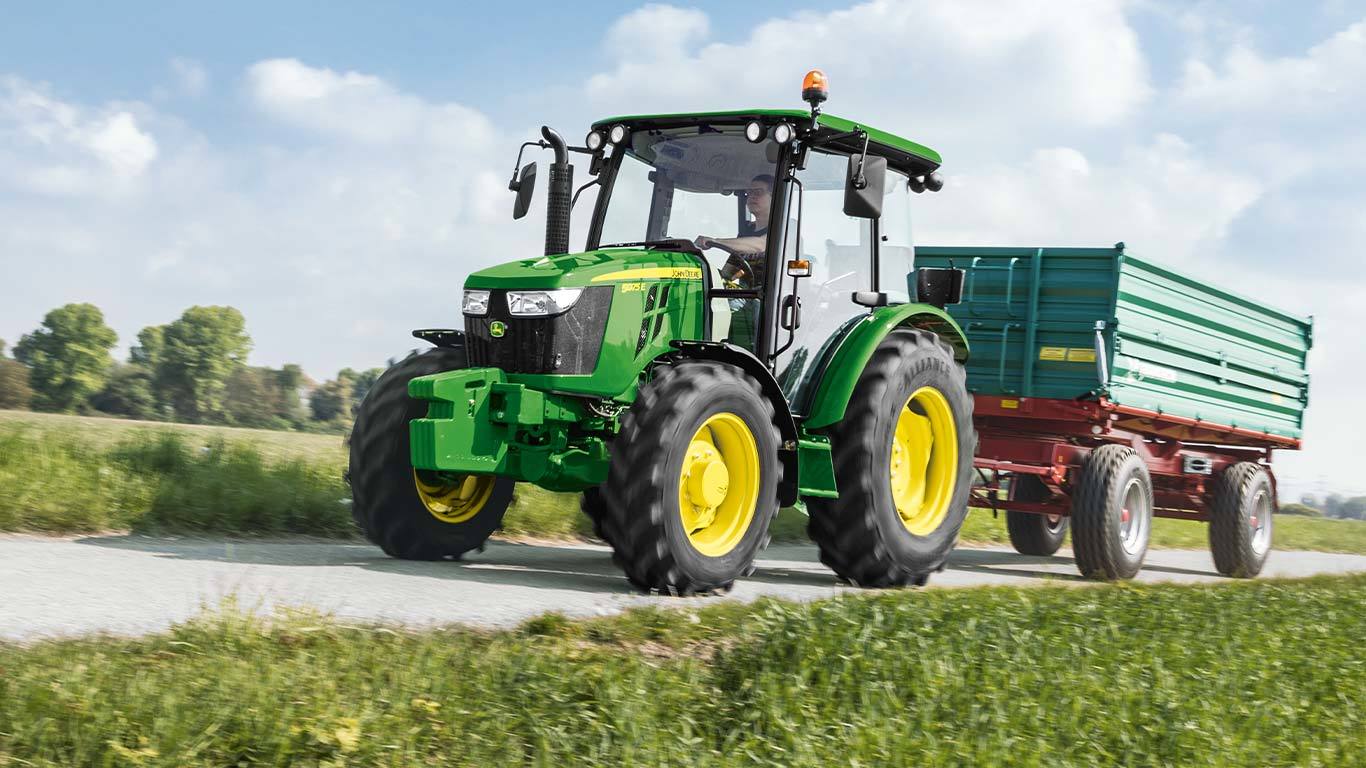

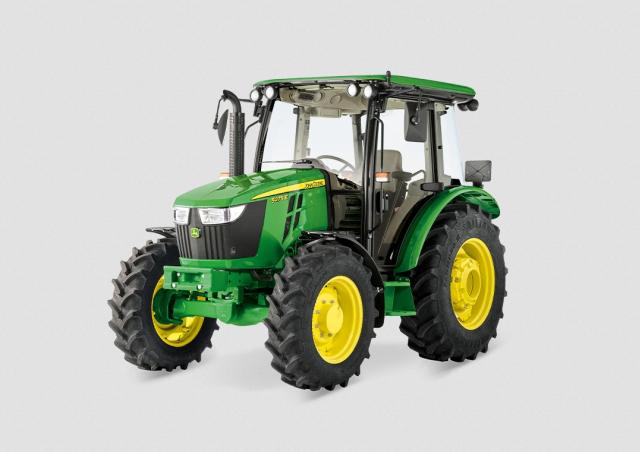

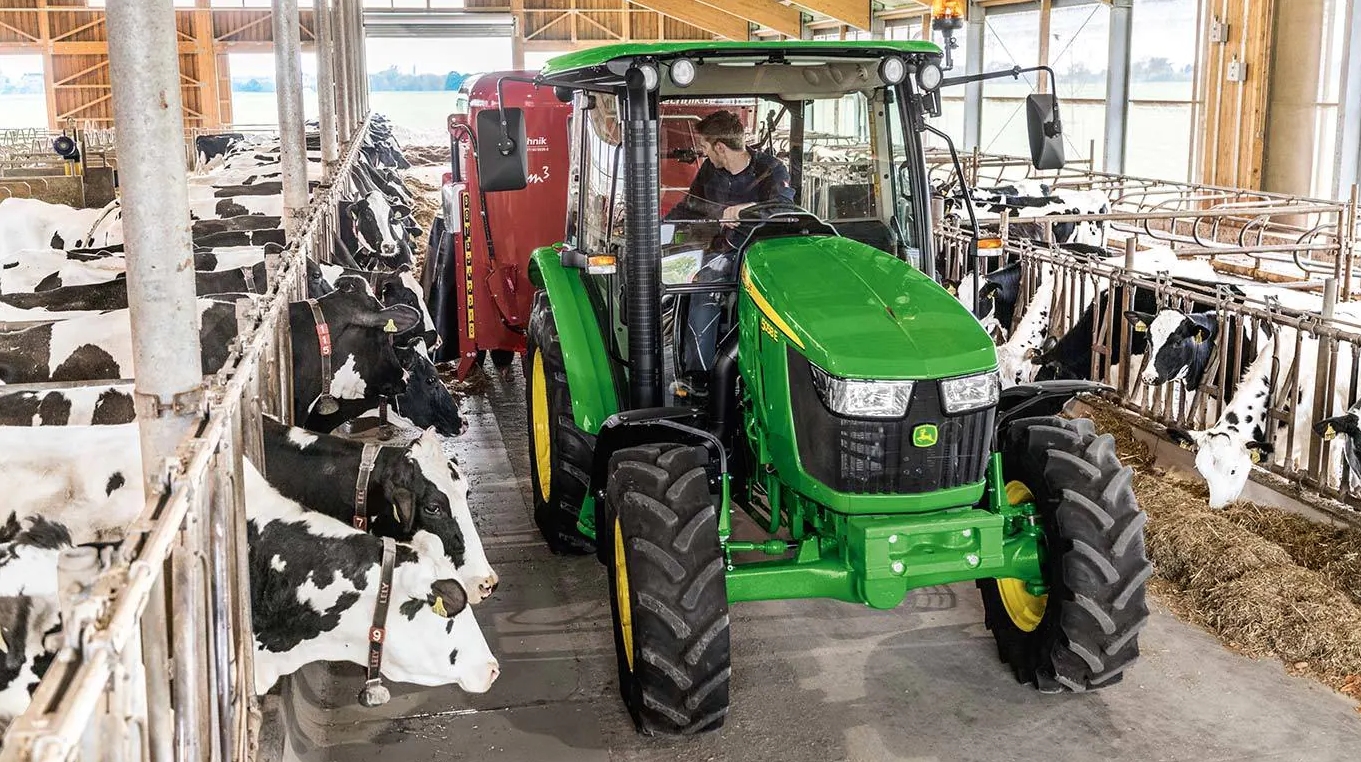

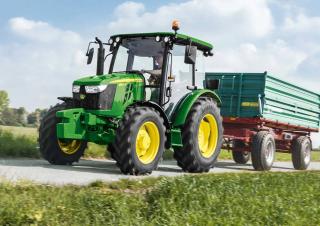

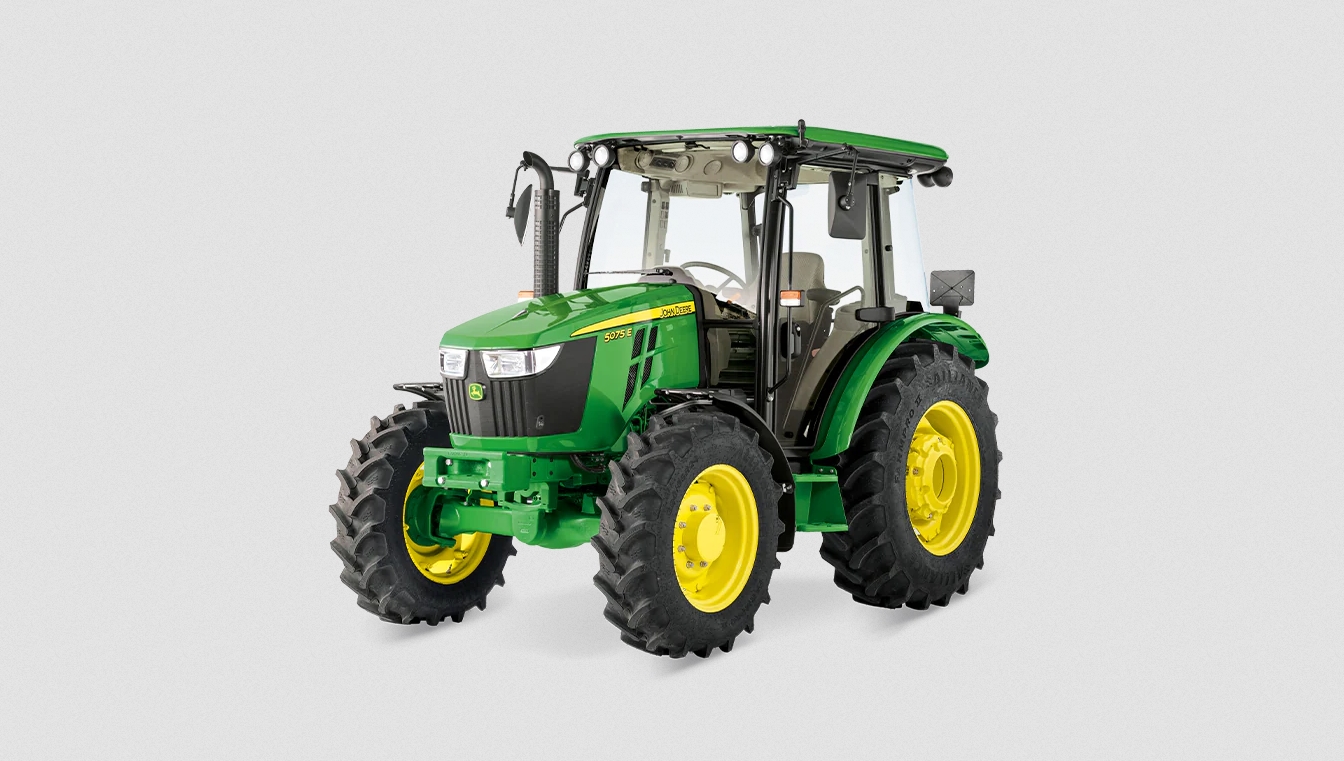

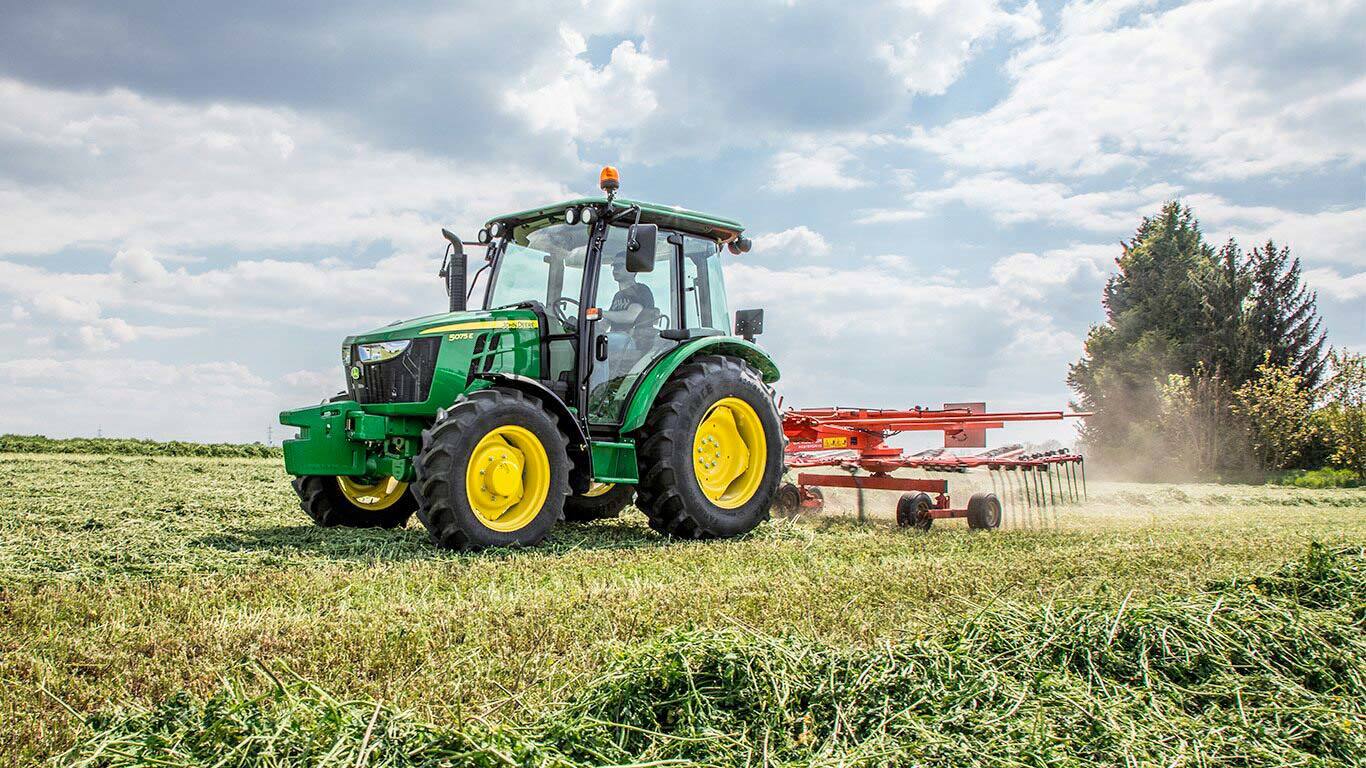

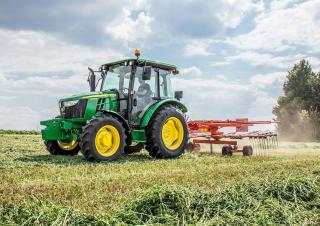

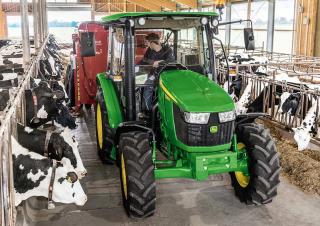

The John Deere 5075E is a 4-wheel drive tractor manufactured by John Deere since 2020. It has a weight of 3.32 tons and is powered by an engine with a capacity of 55 kW. The tractor has a transport length of 3.64 meters and can travel at a speed of 35 km/h. It has a transport width of 2.03 meters and a transport height of 2.46 meters. The tractor is equipped with special equipment such as air conditioning and a cabin.

Technical specs - 5075E John Deere


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Engine power 55 kW
  • Model series 5E
  • Back tyres 420/85 R30
  • Front tyres 320/85 R24
  • Transport length 3.64 m
  • Transport width 2.03 m
  • Transport height 2.46 m
  • Travel speed 35 km/h
  • Transmission 12/12
  • Transmission type m
  • Weight 3.32 t
  • Control unit -/2 ew/dw
  • Steering h
  • three point category 2
  • Engine manuf. John Deere
  • Engine type k.A.
  • Displacement 2.9 l
  • Revolutions at max torque 2100 rpm
  • No. of cylinders 3
  • Emission level V

is a 0 for the size specification so that means, that no information is available.

Special equipment

  • Cabin
  • Front hydraulics
  • Front PTO
  • Air brakes
  • ISO Bus
  • Aircondition
