    Kubota M 7060 Specifications & Technical Data (2013-2016)

    Rate this machine now!

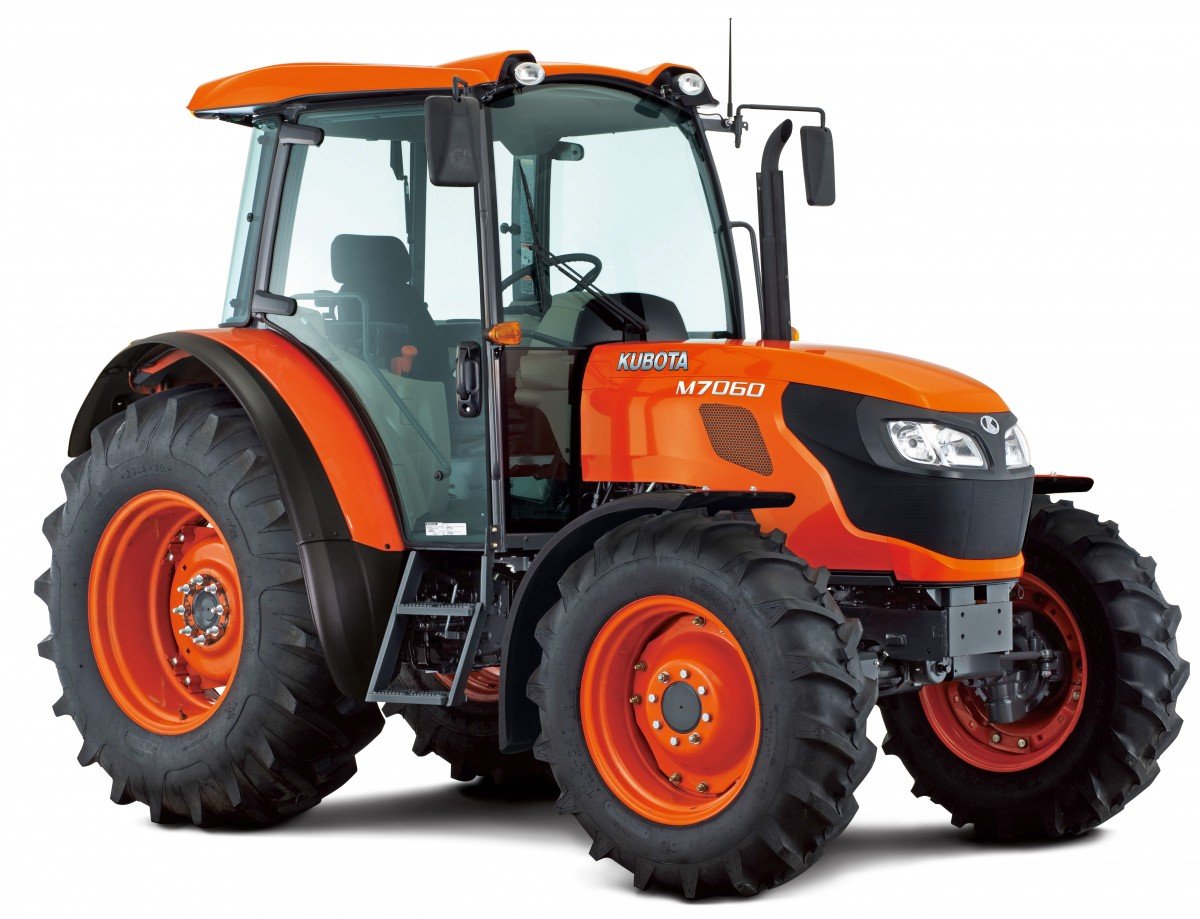

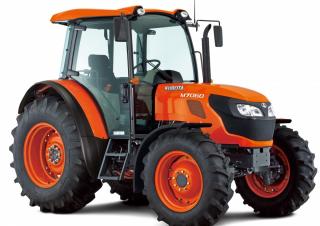

    Manufactured by Kubota, this is the M 7060 4wd tractor. Find and download detailed specs and data sheets for this machine here. ... Read more

    Manufactured by Kubota, this is the M 7060 4wd tractor. Find and download detailed specs and data sheets for this machine here.

    Equipped with a powerful Kubota engine, this M 7060 2.8t machine can provide 54.6kW or 73 horse power for the 4wd tractor. The Kubota M 7060 can be grouped in the smallest machine segment in the 4wd tractors category. The model's dimensions are 3.68m x 1.92m x 2.55m.

    The M 7060 is manufactured and distributed with Cabin and Aircondition. Front hydraulics, Front PTO and ISO Bus are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Kubota M 7060 specs data sheet. Specification sheet is available for a free download in English - providing the machine descriptions and more detailed specs about this particular model.

    This model can be acquired for a list price between €34000 and €43000. Production of the M 7060 continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    Kubota currently produces 35 other 4wd tractors, which range from 48.5kW up to 170kW - the most visited on LECTURA Specs are M 130 X, M 7151, M 7171. Ranked in the LECTURA index at #67, this M 7060 4wd tractor has models that date from 2013 to 2017. Want more detailed specifications? Download the latest Kubota M 7060 specs data sheet on LECTURA Specs today!

    Technical specs - M 7060 Kubota


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.


    Standard tires (ag) Front: 7.5-16.
    Rear: 16.9-30 (2WD)
    Front: 9.5-24.
    Rear: 16.9-30 (4WD)


    Engine (net) 71 hp
    52.9 kW
    PTO (claimed) 64 hp
    47.7 kW


    Name Kubota 3.3L 4-cyl diesel
    ROPS Fuel tank 18.5 gal
    70.0 L
    Cab Fuel tank 23.8 gal
    90.1 L


    Chassis 4x2 2WD
    4x4 MFWD 4WD
    Steering hydrostatic power
    Brakes wet disc
    hydraulic wet disc (12-speed)
    Cab: Two-post foldable ROPS.
    Optional Ultra Grand Cab with air-conditioning.
    Optional air-ride seat and AM/FM/CD/MP3 sound system.
    Transmissions 8-speed power shuttle


    Valves 1 to 3
    Pump flow 11 gpm 41.6 lpm (8-speed)
    16.2 gpm 61.3 lpm (12-speed)

    Tractor hitch:

    Rear Type II/I
    Control position control and top-link draft sensing
    Rear lift (at 24"/610mm) 3307 lbs
    1500 kg
    Rear Arms telescopic lower link ends

    Power Take-off (PTO):

    Rear PTO independent
    Clutch electro-hydraulic
    Rear RPM 540 (1.375)
    540/540E (1.375)


    2WD Wheelbase 84.4 inches
    214 cm
    4WD Wheelbase 83.1 inches
    211 cm
    2WD Length 142.7 inches
    362 cm
    4WD Length 138 inches
    350 cm
    Width 73 inches
    185 cm (min)
    Height (ROPS) 97.2 inches
    246 cm
    Height (cab) 101 inches
    256 cm
    Clearance (front axle) 18.1 inches
    45 cm
    Rear axle Flange
    Front tread 55.9 to 71.7 inches
    141 to 182 cm (2WD)
    Front tread 55.9/59.8 inches
    141/151 cm(4WD)
    Rear tread 55.9 to 67.7 inches
    141 to 171 cm
    Weight 5027 lbs 2280 kg (4WD ROPS)
    5248 lbs 2380 kg (2WD Cab)
    5380 lbs 2440 kg (4WD Cab)

    is a 0 for the size specification so that means, that no information is available.

    Special equipment

    • Cabin
    • Front hydraulics
    • Front PTO
    • Air brakes
    • ISO Bus
    • Aircondition
