Iron³ 190 DCR SAME Iron³ 190 DCR Specifications & Technical Data (2010—2013)

The SAME Iron³ 190 DCR is a 4-wheel drive tractor manufactured by SAME from 2010 to 2013. It has a weight of 6.75 tons and is powe…

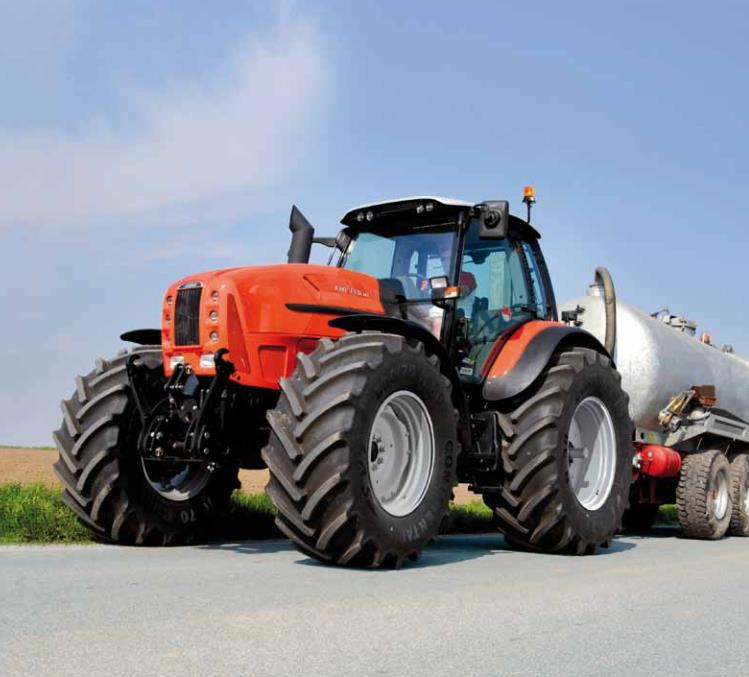

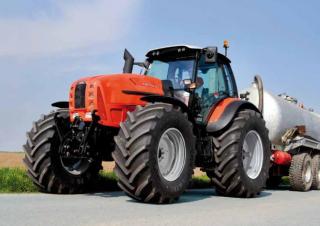

The SAME Iron³ 190 DCR is a 4-wheel drive tractor manufactured by SAME from 2010 to 2013. It has a weight of 6.75 tons and is powered by an engine with a capacity of 139 kW. The tractor has a transport length of 4.81 meters and can travel at a speed of 40 km/h. It has a transport width of 2.72 meters and a transport height of 3.13 meters. The tractor is equipped with special equipment such as air brakes, air conditioning, a cabin, and an ISO Bus.

Iron³ 190 DCR

Years of manufacture: 2010—2013

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Iron³ 190 DCR SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 139 kW

Model series: Iron

Back tyres: 650/65 R 42

Front tyres: 540/65 R 34

Transport length: 4.81 m

Transport width: 2.72 m

Transport height: 3.13 m

Travel speed: 40 km/h

Transmission: 27/27

Weight: 6.75 t

Control unit: -/4 ew/dw

Engine manuf.: Deutz

Engine type: TCD2013 L06

More technical details, like: transmission type, steering, three point category, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin: Yes
Front hydraulics: No
Front PTO: No
Air brakes: Yes
ISO Bus: Yes
Aircondition: Yes

Download datasheets (PDF)

Iron³ 190 DCR SAME Specification for Europe (EN)

SAME Iron³ 190 DCR FAQ

When was the SAME Ironu00b3 190 DCR manufactured?

The SAME Ironu00b3 190 DCR was manufactured from 2010 to 2013.

What is the weight of the SAME Ironu00b3 190 DCR?

The SAME Ironu00b3 190 DCR weighs 6.75 tonnes.

What are the physical dimensions of the SAME Ironu00b3 190 DCR tractor?

The SAME Ironu00b3 190 DCR has a transport length of 4.81 meters, a transport width of 2.72 meters, and a transport height of 3.13 meters.

What is the engine power of the SAME Ironu00b3 190 DCR?

The SAME Ironu00b3 190 DCR has an engine power of 139 kW.

What is the travel speed of the SAME Ironu00b3 190 DCR?

The SAME Ironu00b3 190 DCR has a travel speed of 40 km/h.

What are the transmission speeds for the SAME Ironu00b3 190 DCR?

The SAME Ironu00b3 190 DCR has a transmission with 27 forward speeds and 27 reverse speeds.

What are the wheel and tyre specifications of the SAME Ironu00b3 190 DCR?

The SAME Ironu00b3 190 DCR has front tyres sized 540/65 R 34 and back tyres sized 650/65 R 42.

How much is a SAME Ironu00b3 190 DCR 4WD Tractor (2010u20132013) worth?

The residual value of the SAME Ironu00b3 190 DCR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
