Iron 170 Continuo DCR SAME Iron 170 Continuo DCR Specifications & Technical Data (2009—2012)

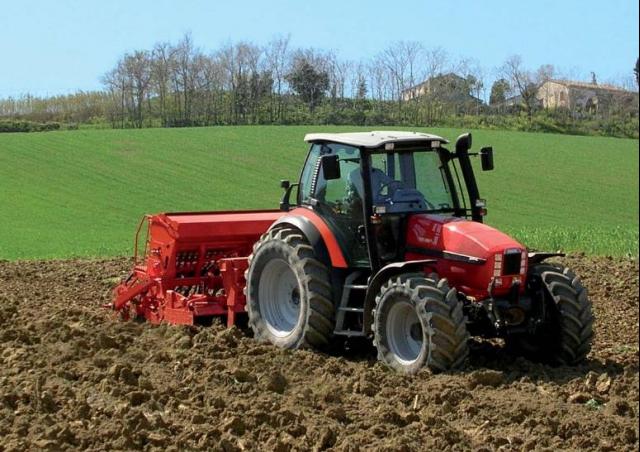

The SAME Iron 170 Continuo DCR is a 4 wheel drive tractor manufactured by SAME from 2009 to 2012. It has a weight of 6.525 tons an…

The SAME Iron 170 Continuo DCR is a 4 wheel drive tractor manufactured by SAME from 2009 to 2012. It has a weight of 6.525 tons and is powered by an engine with a power output of 135 kW. The tractor has a transport length of 4.75 meters and a travel speed of 50 km/h. It has a transport width of 2.48 meters and a transport height of 2.99 meters. The special equipment included with this tractor is air brakes, air conditioning, a cabin, and an ISO Bus.

4WD Tractors SAME Iron 170 Continuo DCR

Technical specs - Iron 170 Continuo DCR SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
135 kW
Model series
Iron
Back tyres
650/65 R 38
Front tyres
540/65 R 28
Transport length
4.75 m
Transport width
2.48 m
Transport height
2.99 m
Travel speed
50 km/h
Transmission type
stfl.
Weight
6.525 t
Control unit
-/4 ew/dw
Engine manuf.
Deutz
Engine type
TCD2012 L06 2V

More technical details, like: transmission, steering, three point category, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
Yes
ISO Bus
Yes
Aircondition
Yes

Download datasheets (PDF)

SAME Iron 170 Continuo DCR FAQ

When was the SAME Iron 170 Continuo DCR manufactured?

The SAME Iron 170 Continuo DCR was manufactured from 2009 to 2012.

What is the weight of the SAME Iron 170 Continuo DCR?

The SAME Iron 170 Continuo DCR weighs 6.53 tonnes.

What are the physical dimensions of the SAME Iron 170 Continuo DCR?

The SAME Iron 170 Continuo DCR has a transport length of 4.75 meters, a transport width of 2.48 meters, and a transport height of 2.99 meters.

What is the engine power of the SAME Iron 170 Continuo DCR?

The SAME Iron 170 Continuo DCR has an engine power of 135 kW.

What is the travel speed of the SAME Iron 170 Continuo DCR?

The SAME Iron 170 Continuo DCR has a travel speed of 50 km/h.

What type of transmission does the SAME Iron 170 Continuo DCR have?

The SAME Iron 170 Continuo DCR is equipped with a continuously variable transmission (CVT).

What are the wheel and tyre specifications for the SAME Iron 170 Continuo DCR?

The SAME Iron 170 Continuo DCR has front tyres sized 540/65 R 28 and back tyres sized 650/65 R 38.

How much is a SAME Iron 170 Continuo DCR 4WD Tractor (2009u20132012) worth?

The residual value of the SAME Iron 170 Continuo DCR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
