Frutteto 105 SAME Frutteto 105 Specifications & Technical Data (2017—2023)

The SAME Frutteto 105 is a 4-wheel drive tractor manufactured by SAME since 2017. It has a weight of 3.125 tons and is powered by …

The SAME Frutteto 105 is a 4-wheel drive tractor manufactured by SAME since 2017. It has a weight of 3.125 tons and is powered by an engine with a capacity of 75 kW. The tractor has a transport length of 3.94 meters and can travel at a speed of 40 km/h. It has a transport width of 1.62 meters and a transport height of 2.35 meters. The tractor is equipped with 2 control units.

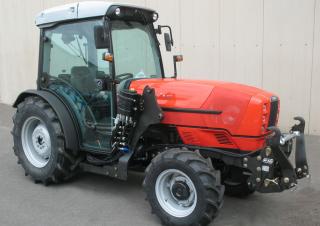

4WD Tractors SAME Frutteto 105
4WD Tractors SAME Frutteto 105
4WD Tractors SAME Frutteto 105
4WD Tractors SAME Frutteto 105
4WD Tractors SAME Frutteto 105
4WD Tractors SAME Frutteto 105

Technical specs - Frutteto 105 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
75 kW
Model series
Fruttero
Back tyres
360/70 R24
Front tyres
280/70 R16
Transport length
3.94 m
Transport width
1.62 m
Transport height
2.35 m
Travel speed
40 km/h
Transmission
30/15
Transmission type
m
Weight
3.125 t
Control unit
2 ew/dw
Steering
h
three point category
2
Engine manuf.
SDF
Engine type
FARMotion
Displacement
3.849 l
Revolutions at max torque
2200 rpm
No. of cylinders
4
Emission level
III B (Tier 4 i)

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Download datasheets (PDF)

SAME Frutteto 105 FAQ

When was the SAME Frutteto 105 manufactured and what is its model series?

The SAME Frutteto 105 has been produced since 2017 and belongs to the Fruttero model series.

What is the weight of the SAME Frutteto 105?

The SAME Frutteto 105 has a weight of 3.13 tonnes.

What are the transport dimensions of the SAME Frutteto 105?

The SAME Frutteto 105 has a transport length of 3.94 meters, a transport width of 1.62 meters, and a transport height of 2.35 meters.

What is the engine power of the SAME Frutteto 105?

The SAME Frutteto 105 has an engine power of 75 kW.

What is the travel speed of the SAME Frutteto 105?

The SAME Frutteto 105 has a travel speed of 40 km/h.

What are the drivetrain and transmission specifications of the SAME Frutteto 105?

The SAME Frutteto 105 has a mechanical transmission with 30 forward speeds and 15 reverse speeds.

What type of steering system does the SAME Frutteto 105 have?

The SAME Frutteto 105 has a hydraulic steering system.

What are the wheel and tyre specifications of the SAME Frutteto 105?

The SAME Frutteto 105 has back tyres sized 360/70 R24 and front tyres sized 280/70 R16.

What is the three-point hitch category of the SAME Frutteto 105?

The SAME Frutteto 105 has a category 2 three-point hitch.

How much is a SAME Frutteto 105 4WD Tractor (2017u20132025) worth?

The residual value of the SAME Frutteto 105 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
