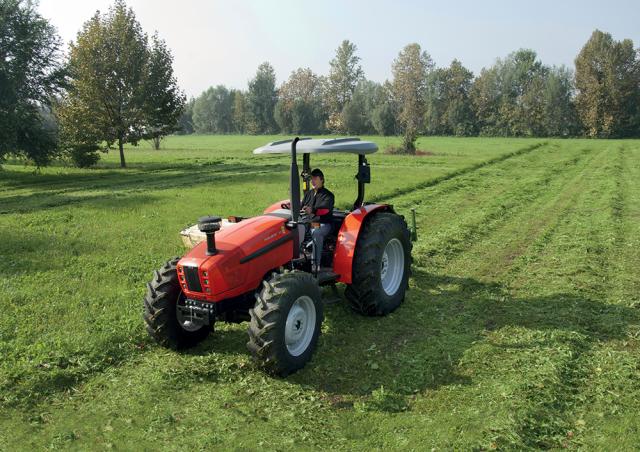

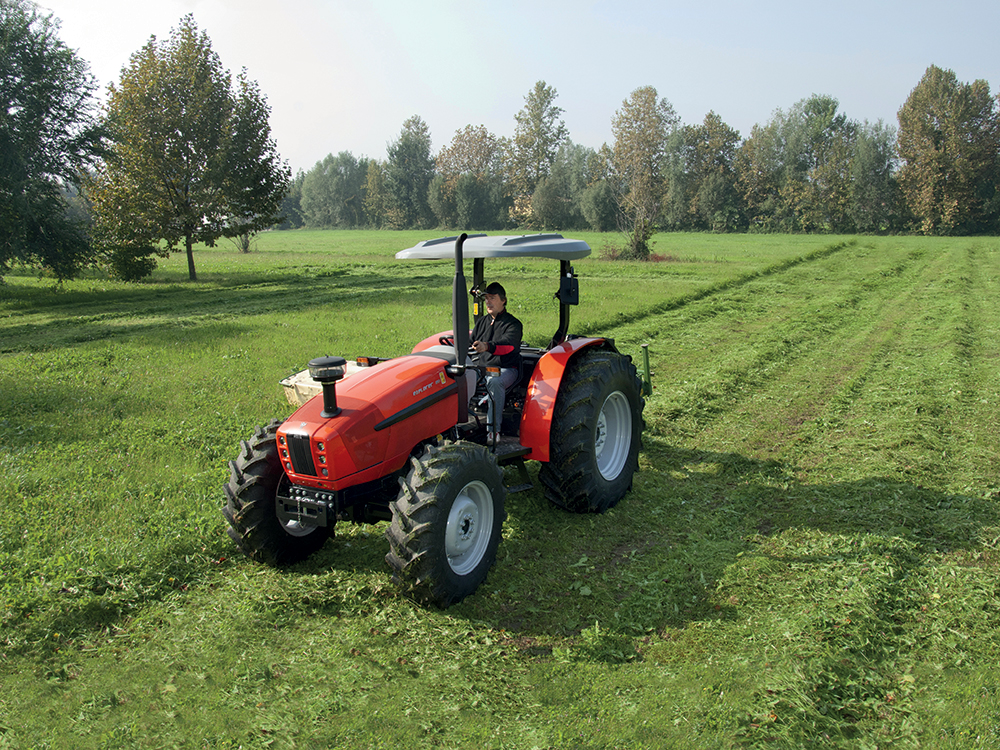

    SAME Explorer 90 Specifications & Technical Data (2020-2021)

    Rate this machine now!

    Engine power: 65kW – Back tyres: 16.9 R34 – Front tyres: 14.9 R24 – Transport length: 4.1m – Transport width: 2.341m – Transport height: 2.6m

    Technical specs - Explorer 90 SAME

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Engine power 65 kW
    Back tyres 16.9 R34
    Front tyres 14.9 R24
    Transport length 4.1 m
    Transport width 2.341 m
    Transport height 2.6 m
    Travel speed 40 km/h
    Transmission 20/20
    Transmission type m
    Weight 3.62 t
    Control unit -/1 ew/dw
    Steering h
    Engine manuf. SDF
    Engine type 1000.4 WTI
    Engine power 88 HP
    Displacement 4 l
    Revolutions at max torque 2300 rpm
    No. of cylinders 4
    Emission level III A
    three point category ###
    Dimension lxwxh ###
    Max. torque ###
    Cylinder bore x stroke ###
    Weight ###

    is a 0 for the size specification so that means, that no information is available.

    Explorer 90 SAME - Special equipment

    • Cabin
    • Front hydraulics
    • Front PTO
    • Air brakes
    • ISO Bus
    • Aircondition
