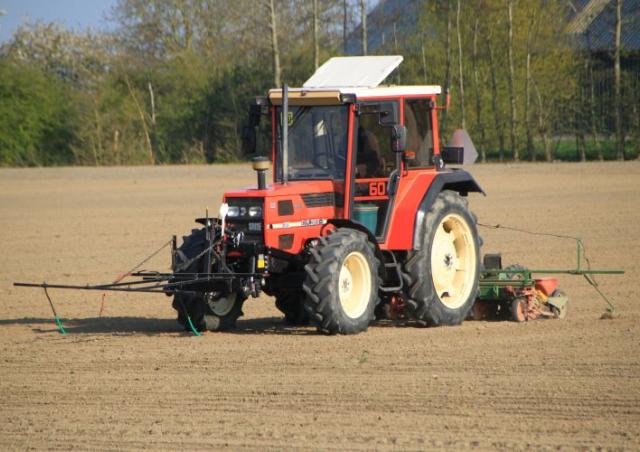

Explorer 60 SAME Explorer 60 Specifications & Technical Data (1986—1990)

Engine power: 44.7kW – Back tyres: 14.9-30 – Front tyres: 11.2-24 – Transport length: 3.83m – Transport height: 2.51m – Transmission: 12/12

4WD Tractors SAME Explorer 60

Technical specs - Explorer 60 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
44.7 kW
Back tyres
14.9-30
Front tyres
11.2-24
Transport length
3.83 m
Transport height
2.51 m
Transmission
12/12
Transmission type
m
Weight
2.96 t
three point category
2
Engine manuf.
SAME
Engine type
1000 3-A
Displacement
3 l
No. of cylinders
3
Cylinder bore x stroke
105x116 mm

More technical details, like: model series, transport width, travel speed, control unit, steering, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

SAME Explorer 60 FAQ

When was the SAME Explorer 60 manufactured?

The SAME Explorer 60 was manufactured from 1986 to 1990.

What is the weight of the SAME Explorer 60?

The SAME Explorer 60 has a weight of 2.96 tonnes.

What are the physical dimensions of the SAME Explorer 60?

The SAME Explorer 60 has a transport length of 3.83 meters and a transport height of 2.51 meters.

What is the engine power of the SAME Explorer 60?

The SAME Explorer 60 has an engine power of 44.7 kW.

What type of transmission does the SAME Explorer 60 have?

The SAME Explorer 60 is equipped with a mechanical transmission.

What are the wheel and tyre specifications of the SAME Explorer 60?

The SAME Explorer 60 has front tyres sized 11.2-24 and back tyres sized 14.9-30.

What is the three-point hitch category of the SAME Explorer 60?

The SAME Explorer 60 has a category 2 three-point hitch.

How much is a SAME Explorer 60 4WD Tractor (1986u20131990) worth?

The residual value of the SAME Explorer 60 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
