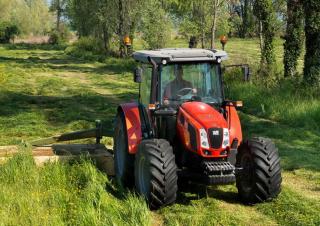

Explorer 120 HD SAME Explorer 120 HD Specifications & Technical Data (2017—2025)

Another step forward in the evolution of a legend.

With the new Explorer range, SAME is writing a new chapter in the history of this Italian legend. It is a history that has been continuously evolving for more than 30 years, consolidating, generation after generation, that unique relationship between man and machine that has always represented the true strength of the Explorer. Today the Explorer is a different tractor to how it was in the past; for it is precisely this relationship which has made it possible, as is our tradition, to develop new engines, provide new levels of comfort and new technical solutions that are able to better meet the needs of farmers. Not only those of today, but also those of tomorrow.

SAME Explorer. Another approach to agriculture since 1983.

Innovation, initiative, high-tech: Explorer has been pioneering a new approach to conceiving the tractor since 1983, back when design solutions were introduced in the medium-low power range that were absolutely innovative at the time. Starting with a blank sheet of paper, SAME designed a different type of tractor, based on extremely modern technology that until then had never been used for that power range. They were completely new machines designed for satisfying specific needs, in terms of both performance and comfort. All of the main tractor components were redesigned based on the progress of agricultural mechanisation to support a new approach to farming.

Explorer 90-100-110 MD. Maximum versatility.

The perfect weight distribution across the two axles is the feature that distinguishes these three models of the Explorer range the most. It is precisely this feature that helps guarantee absolute superior traction control. Their robustness makes them ideal for varied work applications including minimum tillage or seed drilling. They have become true wild cards able to guarantee high levels of performance in almost any operational role.

Explorer 110-120 HD. The strength of solidity.

The Explorer HD tractors are imposing machines with a very robust structure that makes it possible to exert high levels of force in terms of traction and lifting. They are ideal for performing all work in open fields, from ploughing and crop protection operations to harvesting. Superior versatility makes this range ideal both for medium to large farms that require multifunctional equipment and for work provided by farming contractors – from plant protection treatments and fertilisation through to combined jobs.

Everything under control

The control and therefore the productivity of FARMotion engines are always working at the optimum level thanks to the electronic control unit that manages them continuously. Its action guarantees a ready response in any situation and operation that is always smooth and regular for the full benefit of a constant rotation speed of the PTO. Through its dedicated sensors, the engine ECU monitors all of the operating parameters, optimising the injection process. All of this with the maximum simplicity of use: By using the hand throttle lever and speed memory buttons, the driver can set and fix two engine speeds suitable for specific jobs and recall them at any time whenever needed. This advantage is appreciated immediately, because the operator can manage the tractor better, dedicating greater attention to other manoeuvres.

PTO performance

The best result for working in the field with PTO driven implements is guaranteed with the availability of four different standardised speeds (540/540ECO/1000/1000ECO), in addition to the ground speed PTO. For a gradual and progressive start, the PTO is electronically engaged via a modulated multiplate wet clutch. Thanks to the Auto PTO function (only available when the electronic hitch is installed), it is also possible to program its stop and subsequent reactivation based on the up or down position of the rear three-point linkage. In addition, the PTO can also be activated remotely using a dedicated button located on the rear mudguard. For combined jobs, the front 1000 speed PTO is also available, which is actuated directly by means of modulated multiplate wet clutch with electrohydraulic engagement.

Stop&Go system

The Stop&Go system amplifies the capabilities of the reverse shuttle to offer a superior level of manoeuvrability to the operator, especially when the tractor needs to be stopped at irregular intervals. For example, when working with a loader in limited space, when coupling implements or when starting slopes. In these situations, the Stop&Go system allows the operator to perform the manoeuvres simply by using the brake, without having to press the clutch pedal. In practical terms, depressing the brake pedals stops the tractor while the system waits for a signal from the reverse shuttle at the same time. When the brake pedal is released, the Stop&Go system re-activates the shuttle, guaranteeing a progressive and modulated engagement of the hydraulic clutch, resulting in a gradual and progressive movement of the tractor. All of this results in efficient manoeuvres, as well as greater safety, reliability and higher operational comfort.

Explorer Range Overview

The new Explorer range represents the sublime expression of versatility and adaptability. Dedicated to the modern farmer, each of its versions offers numerous configurations and options for the transmission, hydraulic system and axles, always with maximum comfort and with the highest safety standards for the operator. The accessories are also at the highest level of quality and make the Explorer even more efficient and productive. The SDD steering system, for example, reduces the number of steering wheels turns by half when manoeuvring, while the much-appreciated Stop&Go system provides simplified manoeuvring for a number of applications. Additionally, 60ECO technology optimises the performance of the hydraulic system, and the hydraulic parking brake considerably increases the level of safety.

Hydraulic PowerShuttle

In order to save a considerable amount of time when manoeuvring, the hydraulic PowerShuttle is managed by an electronic control unit which allows the direction to always be changed even under load in a fluid way. This provides maximum protection to the mechanical components involved. To guarantee the complete safety of operations, the reverse shuttle's control lever has a "neutral" position and a drive consent mechanism. Lastly, a modulation wheel has been integrated into the lever of the hydraulic reverse shuttle to modulate the response, making it more or less reactive depending on the application.

SDD Steering System

The innovative SDD (Steering Double Displacement) steering system guarantees superior driving comfort and helps the driver manoeuvre faster. A dedicated button is used to increase the steering pump flow rate, which reduces the number of steering wheel turns by half.

The new hydraulic parking brake

locks the tractor in a safe and efficient manner on all gradients. For total safety, this system can be used in the event of an emergency to stop the vehicle progressively.

Explorer 80-90 LD

Thanks to its three-cylinder engine that guarantees a short wheelbase and an optimal turning circle, the 80-90 LD Explorers provide excellent manoeuvrability and an efficient power/weight ratio. These features make them particularly suited for hay-making, trimming and sowing. Thanks to the hydraulic reverse shuttle and a respectable permissible maximum load, the Explorer LD three-cylinder versions are able to manoeuvre optimally in barns and in the narrowest of spaces. Its reduced weight provides a valuable contribution towards not only limiting the harmful compacting of the ground (an indispensable requirement for modern farming) but also for providing excellent "buoyancy" on very soft ground.

Front axle and steering wheel

When developing the new Explorer, no compromises were made in terms of components. In both the 2WD and 4WD versions, the front axle guarantees superior ground clearance as well as the possibility of regulating the track width in order to work without problems even with root crops. The optimal weight distribution guarantees ideal stability and traction for operations such as sowing. The different permissible maximum loads offered with the various models make the Explorer ideal for all kinds of farming work. The front axle reaches steering angles of 55° (4WD axle) and 60° on the 2WD axle. For maximum traction efficiency, both front and rear differential locks along with the 4WD engagement are activated electro-hydraulically.

Four-wheel braking

Four-wheel braking is guaranteed by multiplate rear brakes, which act on each side of the rear differential output shaft, as well as by hydraulically controlled internal front brakes. The latter are particularly useful in challenging terrain, where their braking capacity represents an important advantage as it is possible to brake with all the wheels without having to engage the front wheel drive.
