Explorer 100 MD SAME Explorer 100 MD Specifications & Technical Data (2015—2019)

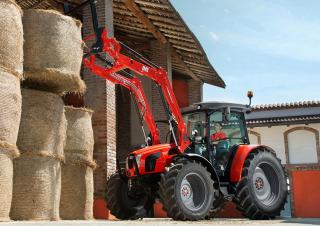

The SAME Explorer 100 MD is a 4-wheel drive tractor manufactured by SAME from 2015 to 2019. It has a weight of 3.92 tons and is po…

The SAME Explorer 100 MD is a 4-wheel drive tractor manufactured by SAME from 2015 to 2019. It has a weight of 3.92 tons and is powered by an engine with a capacity of 71 kW. The tractor has a transport length of 4.426 meters and can travel at a speed of 40 km/h. It has a transport width of 2.273 meters and a transport height of 2.702 meters. The tractor is equipped with a cabin and has 0 control units.

4WD Tractors SAME Explorer 100 MD

Technical specs - Explorer 100 MD SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
71 kW
Model series
Explorer
Back tyres
16.9 R34
Front tyres
14.9 R24
Transport length
4.426 m
Transport width
2.273 m
Transport height
2.702 m
Travel speed
40 km/h
Transmission
10/10
Transmission type
m
Weight
3.92 t
Control unit
-/1 ew/dw
Steering
h
Engine manuf.
SDF
Engine type
FARMotion
Displacement
3.849 l
Revolutions at max torque
2200 rpm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: three point category, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Download datasheets (PDF)

SAME Explorer 100 MD FAQ

When was the SAME Explorer 100 MD manufactured?

The SAME Explorer 100 MD was manufactured from 2015 to 2019.

What is the weight of the SAME Explorer 100 MD?

The SAME Explorer 100 MD has a weight of 3.92 tonnes.

What are the physical dimensions of the SAME Explorer 100 MD?

The SAME Explorer 100 MD has a transport length of 4.43 meters, a transport width of 2.27 meters, and a transport height of 2.7 meters.

What is the engine power of the SAME Explorer 100 MD?

The SAME Explorer 100 MD has an engine power of 71 kW.

What is the travel speed of the SAME Explorer 100 MD?

The SAME Explorer 100 MD has a travel speed of 40 km/h.

What type of transmission does the SAME Explorer 100 MD have?

The SAME Explorer 100 MD is equipped with a mechanical transmission.

What type of steering does the SAME Explorer 100 MD have?

The SAME Explorer 100 MD is equipped with hydraulic steering.

What are the wheel and tyre specifications of the SAME Explorer 100 MD?

The SAME Explorer 100 MD has front tyres sized 14.9 R24 and back tyres sized 16.9 R34.

How much is a SAME Explorer 100 MD 4WD Tractor (2015u20132019) worth?

The residual value of the SAME Explorer 100 MD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
