Explorer 100 SAME Explorer 100 Specifications & Technical Data (2022—2026)

The SAME Explorer 100 is a 4 wheel drive tractor manufactured by SAME since 2022. It has a weight of 3.2 tons and is powered by an…

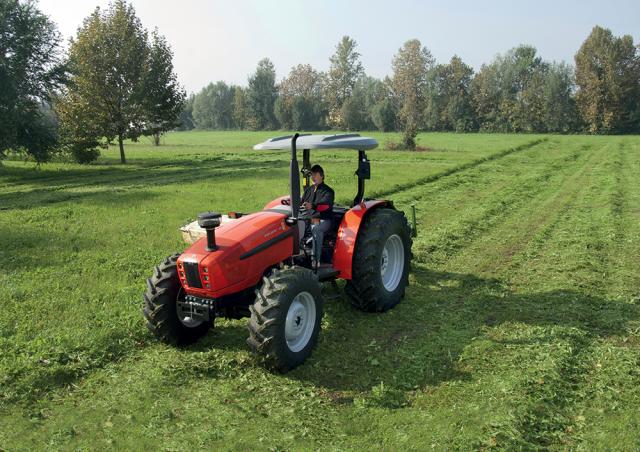

The SAME Explorer 100 is a 4 wheel drive tractor manufactured by SAME since 2022. It has a weight of 3.2 tons and is powered by an engine with a power output of 70 kW. The tractor has a transport length of 4.075 meters and can travel at a speed of 40 km/h. It has a transport width of 2.25 meters and a transport height of 2.469 meters.

4WD Tractors SAME Explorer 100

Technical specs - Explorer 100 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
70 kW
Model series
Explorer
Back tyres
18.4 R30
Transport length
4.075 m
Transport width
2.25 m
Transport height
2.469 m
Travel speed
40 km/h
Transmission type
h
Weight
3.2 t
Steering
m
Engine manuf.
SDF
Engine type
1000.4 WT
Displacement
4 l
Revolutions at max torque
1400 rpm
Max. torque
377 Nm
No. of cylinders
4
Emission level
Tier 2

More technical details, like: front tyres, transmission, control unit, three point category, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Download datasheets (PDF)

SAME Explorer 100 FAQ

What is the manufacturing period of the SAME Explorer 100?

The SAME Explorer 100, part of the Explorer series, was first produced in 2022.

What is the weight of the SAME Explorer 100?

The SAME Explorer 100 has a weight of 3.2 tonnes.

What are the physical dimensions of the SAME Explorer 100?

The SAME Explorer 100 has a transport length of 4.08 meters, a transport width of 2.25 meters, and a transport height of 2.47 meters.

What is the engine power of the SAME Explorer 100?

The SAME Explorer 100 has an engine power of 70 kW.

What is the travel speed of the SAME Explorer 100?

The SAME Explorer 100 has a travel speed of 40 km/h.

What type of transmission does the SAME Explorer 100 have?

The SAME Explorer 100 is equipped with a hydrostatic power shift transmission.

What type of steering does the SAME Explorer 100 have?

The SAME Explorer 100 has mechanical steering.

What are the wheel and tyre specifications of the SAME Explorer 100?

The SAME Explorer 100 is equipped with back tyres sized 18.4 R30.

How much is a SAME Explorer 100 4WD Tractor (2022u20132025) worth?

The residual value of the SAME Explorer 100 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
