Dorado 90 SAME Dorado 90 Specifications & Technical Data (2019—2024)

The SAME Dorado 90 is a 4 wheel drive tractor manufactured by SAME since 2019. It has a weight of 3.3 tons and is powered by an en…

The SAME Dorado 90 is a 4 wheel drive tractor manufactured by SAME since 2019. It has a weight of 3.3 tons and is powered by an engine with a power output of 65 kW. The tractor has a transport length of 4.257 meters and can travel at a speed of 40 km/h. It has a transport width of 2.18 meters and a transport height of 2.59 meters. The tractor is equipped with a cabin as special equipment.

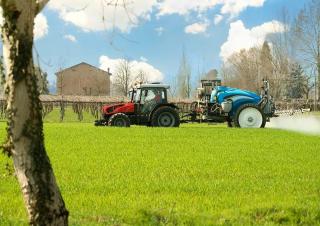

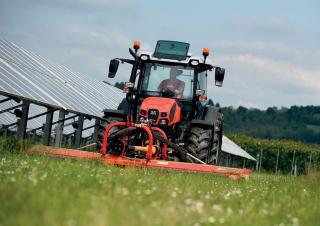

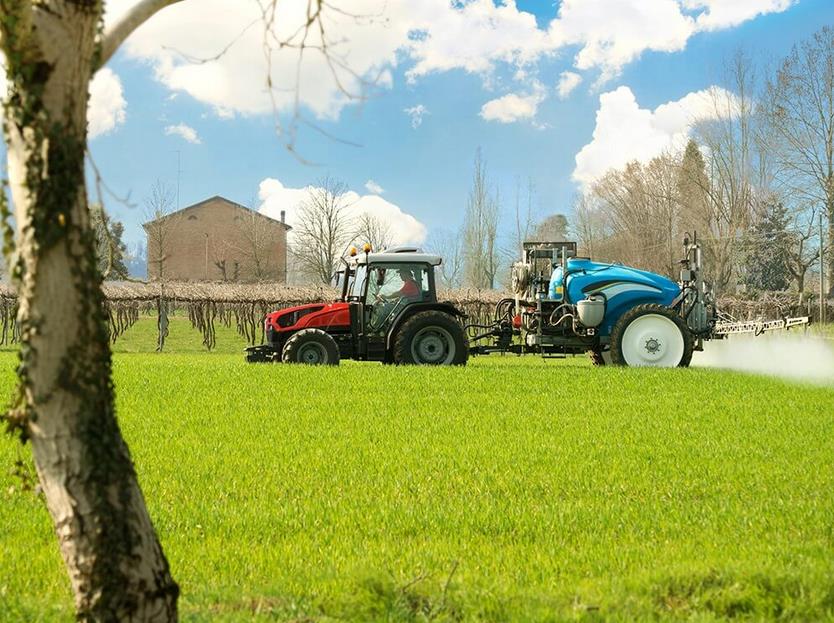

4WD Tractors SAME Dorado 90
4WD Tractors SAME Dorado 90
4WD Tractors SAME Dorado 90
4WD Tractors SAME Dorado 90
4WD Tractors SAME Dorado 90
4WD Tractors SAME Dorado 90
4WD Tractors SAME Dorado 90
4WD Tractors SAME Dorado 90
4WD Tractors SAME Dorado 90
4WD Tractors SAME Dorado 90
4WD Tractors SAME Dorado 90
4WD Tractors SAME Dorado 90

Technical specs - Dorado 90 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
65 kW
Model series
Dorado
Back tyres
480/70 R30
Front tyres
320/70 R24
Transport length
4.257 m
Transport width
2.18 m
Transport height
2.59 m
Travel speed
40 km/h
Transmission
45/45
Transmission type
m
Weight
3.3 t
Control unit
-/3 ew/dw
Steering
h
three point category
2
Engine manuf.
SDF
Engine type
FARMotion
Displacement
2.887 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
Tier 4 i

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Download datasheets (PDF)

SAME Dorado 90 FAQ

When was the SAME Dorado 90 first produced?

The SAME Dorado 90, part of the Dorado series, was first produced in 2019.

What is the weight of the SAME Dorado 90?

The SAME Dorado 90 has a weight of 3.3 tonnes.

What are the physical dimensions of the SAME Dorado 90 tractor?

The SAME Dorado 90 tractor has a transport length of 4.26 meters, a transport width of 2.18 meters, and a transport height of 2.59 meters.

What is the engine power of the SAME Dorado 90?

The SAME Dorado 90 has an engine power of 65 kW.

What is the travel speed of the SAME Dorado 90?

The SAME Dorado 90 has a travel speed of 40 km/h.

What are the drivetrain and propulsion system specifications of the SAME Dorado 90?

The SAME Dorado 90 has a mechanical transmission with 45 forward speeds and 45 reverse speeds.

What type of steering does the SAME Dorado 90 have for maneuverability?

The SAME Dorado 90 is equipped with hydraulic steering for maneuverability.

What are the wheel and tyre specifications of the SAME Dorado 90?

The SAME Dorado 90 has front tyres sized 320/70 R24 and back tyres sized 480/70 R30.

What is the three-point hitch category of the SAME Dorado 90?

The SAME Dorado 90 has a category 2 three-point hitch.

How much is a SAME Dorado 90 4WD Tractor (2019u20132025) worth?

The residual value of the SAME Dorado 90 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
