Dorado 100.4 SAME Dorado 100.4 Specifications & Technical Data (2019—2025)

The SAME Dorado 100.4 is a 4 wheel drive tractor manufactured by SAME since 2019. It has a weight of 3.3 tons and is powered by an…

The SAME Dorado 100.4 is a 4 wheel drive tractor manufactured by SAME since 2019. It has a weight of 3.3 tons and is powered by an engine with a power output of 75 kW. The tractor has a transport length of 4.257 meters and can travel at a speed of 40 km/h. It has a transport width of 2.238 meters and a transport height of 2.59 meters. The tractor is equipped with a cabin as special equipment.

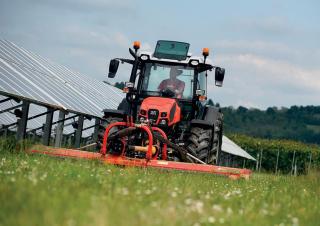

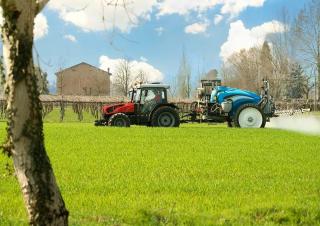

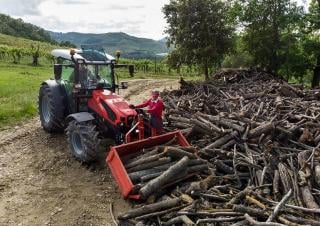

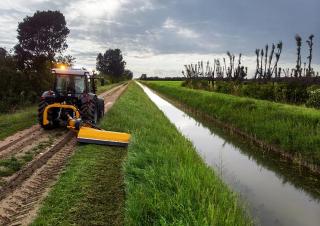

4WD Tractors SAME Dorado 100.4

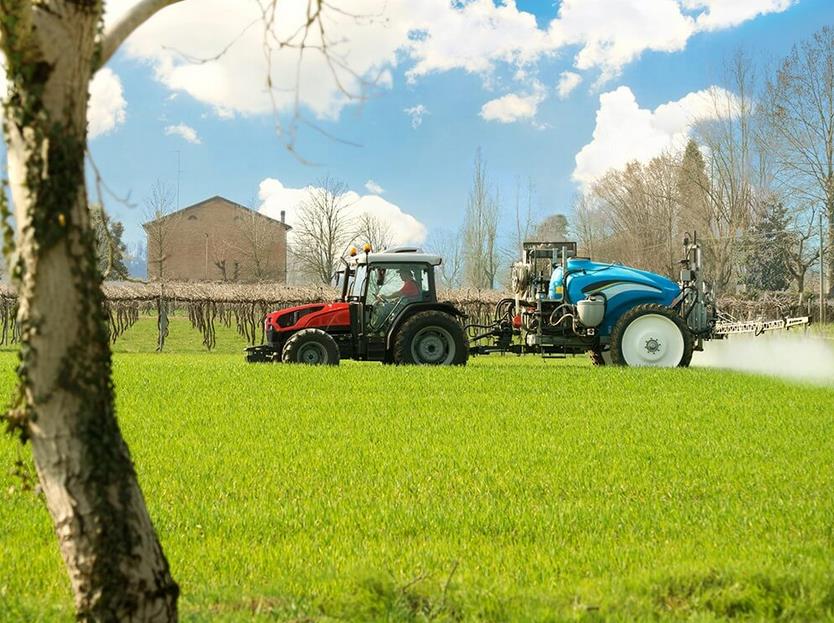

4WD Tractors SAME Dorado 100.4

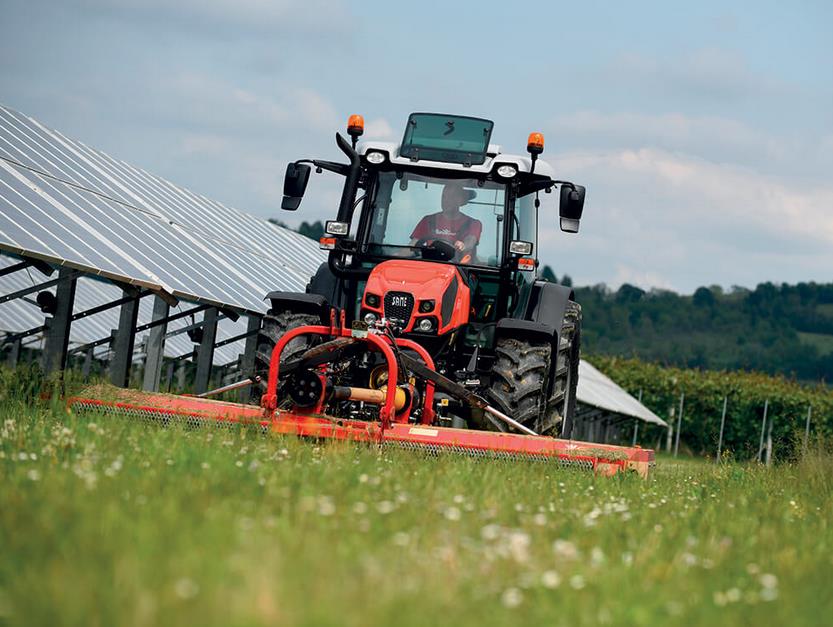

4WD Tractors SAME Dorado 100.4
4WD Tractors SAME Dorado 100.4
4WD Tractors SAME Dorado 100.4
4WD Tractors SAME Dorado 100.4
4WD Tractors SAME Dorado 100.4
4WD Tractors SAME Dorado 100.4
4WD Tractors SAME Dorado 100.4
4WD Tractors SAME Dorado 100.4
4WD Tractors SAME Dorado 100.4
4WD Tractors SAME Dorado 100.4

Technical specs - Dorado 100.4 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
75 kW
Model series
Dorado
Back tyres
480/70 R30
Front tyres
320/70 R24
Transport length
4.26 m
Transport width
2.24 m
Transport height
2.59 m
Travel speed
40 km/h
Transmission
30/15
Transmission type
m
Weight
3.3 t
Control unit
-/3 ew/dw
Steering
h
Engine manuf.
SDF
Engine type
FARMotion
Displacement
3.849 l
Revolutions at max torque
2200 rpm
No. of cylinders
4
Emission level
III B (Tier 4 i)

More technical details, like: three point category, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Download datasheets (PDF)

SAME Dorado 100.4 FAQ

When was the SAME Dorado 100.4 first produced?

The SAME Dorado 100.4 was first produced in 2019.

What is the weight of the SAME Dorado 100.4?

The SAME Dorado 100.4 has a weight of 3.3 tonnes.

What are the physical dimensions of the SAME Dorado 100.4 during transport?

The SAME Dorado 100.4 has a transport length of 4.26 meters, a transport width of 2.24 meters, and a transport height of 2.59 meters.

What is the engine power of the SAME Dorado 100.4?

The SAME Dorado 100.4 has an engine power of 75 kW.

What is the travel speed of the SAME Dorado 100.4?

The SAME Dorado 100.4 has a travel speed of 40 km/h.

What are the drivetrain and propulsion system specifications of the SAME Dorado 100.4?

The SAME Dorado 100.4 has a mechanical transmission with 30 forward speeds and 15 reverse speeds.

What type of steering system does the SAME Dorado 100.4 have?

The SAME Dorado 100.4 has a hydraulic steering system.

What are the wheel and tyre specifications of the SAME Dorado 100.4?

The SAME Dorado 100.4 has front tyres sized 320/70 R24 and back tyres sized 480/70 R30.

How much is a SAME Dorado 100.4 4WD Tractor (2019u20132025) worth?

The residual value of the SAME Dorado 100.4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
