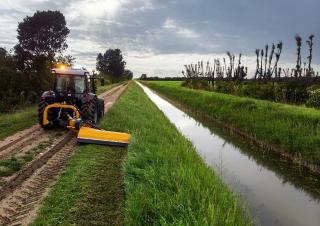

Dorado 100.4 SAME Dorado 100.4 Specifications & Technical Data (2019—2025)

All-electronic engine management

All models have electronic engine management: an advanced feature in which the fuel supply is always correct, depending on engine speed and load, thus optimising consumption. With the aid of specific sensors, the electronic control unit monitors all operating parameters, constantly setting them to the optimal values via injection management. Optimum fuel delivery is ensured to provide consistent performance. Thanks to this system, the rated engine speed is 2.200 rpm, with constant torque. All this allows optimum power availability with very low consumption. This device lets the driver set, store and recall minimum and maximum engine speeds to simplify headland turning operations.

Powershift

Versatility and efficiency are the two main characteristics of the SAME Dorado, thanks to the transmission that can offer up to 3 ranges (with supercreeper) and 5 gears with 3 Powershift speeds, for a total of 45 forward and 45 reverse speeds. For a more traditional specification, you can opt for an easy-to-use and just as functional mechanical gearbox. With the Powershift gearbox, the driver has the possibility to change speed quickly, without pressing the clutch pedal, optimising ground speed for the job at hand: in this way, the transmission loading can be reduced, maintaining optimum engine speed. For even greater comfort, a button on gear lever lets the driver shift gears smoothly and progressively without pressing the clutch pedal.

Straightforward and efficient management of all implements

The Dorado offers a comprehensive range of implements to be able to do any job. For this reason, the hydraulic system has been designed and implemented for application of all tasks with ease and precision. The hydraulic system includes a specific 54 L/min pump for the robust rear lift and for the 6-way auxiliary valves, allowing any hydraulically controlled and adjusted implement to be used to its full potential. The auxiliary valves have a flow regulator, providing further possibilities of use and optimum flow output. The hydrostatic steering, on the other hand, has an independent pump ensuring smooth handling, even at low engine speeds, a situation typical when doing general farm jobs around the yard.

Electronic hitch Power and precision

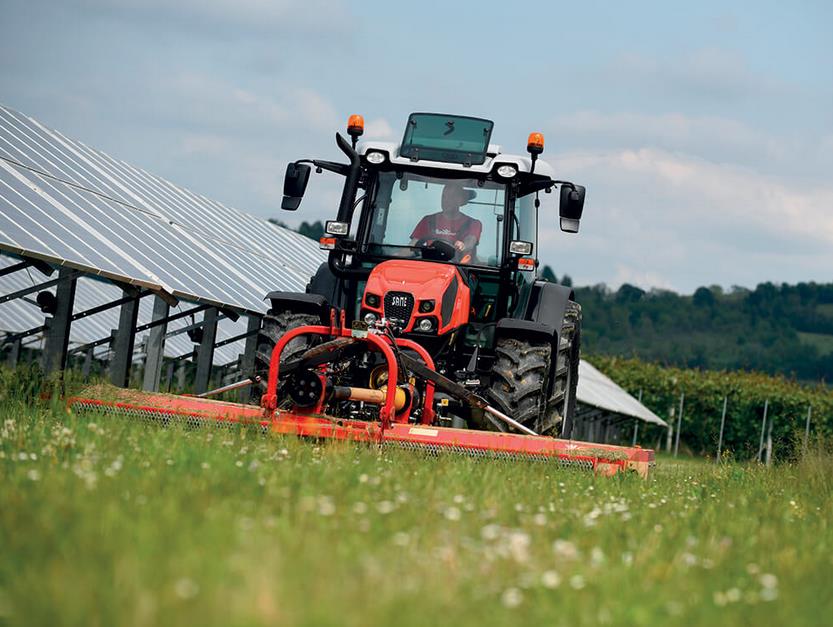

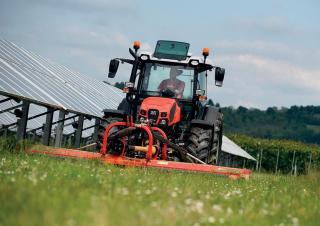

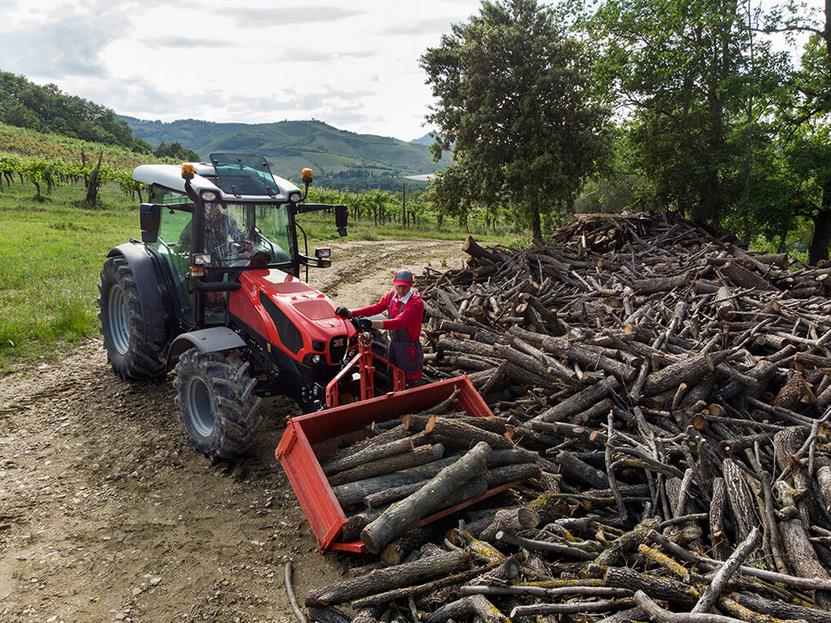

For high precision jobs, the electronic rear hitch can control implements with extreme accuracy and precision. The electronic rear lift is also available with an auto PTO, which automatically engages and disengages when the implement is lowered or raised. With a particularly robust design, the rear hitch of the Dorado has a lifting capacity of 3,000 kg, which can be increased to 3,600 kg by adding additional lift rams. The button for proportionally controlling raising and lowering of the linkage arms facilitates implement coupling. For those requiring front-mounted implements, these tractors may also be equipped with a front linkage (with a load capacity of 1,750 Kg) and a 1,000 rpm front PTO: an attachment which will further extend the capabilities of the Dorado. It can also be used for carrying front ballast for the tractor.

Top class comfort.

The Dorado offers a driving seat which can perfectly adapt to the driver’s characteristics, ensuring automotive-level comfort. The air suspension seat with seat belt adapts perfectly to the weight and height of the driver, who has ample manoeuvring space. The superior comfort of the flat platform suspended on silent blocks, suspended pedals for the hydraulic clutch and brakes, and lateral gear shift levers further alleviate fatigue, as does the layout of the controls on the console to the right of the driver. The special curvature of the windows, together with the narrow and tapered hood, ensure greater driving comfort and optimum visibility in all directions.

The right climate for working productively.

The Dorado offers an additional level of comfort, thanks to the reduced in-cab noise levels and pressurised cab, also with air conditioning. With the high-visibility roof, the air conditioning system is situated in the rear part under the roof, whilst the air distribution vents are also positioned towards the floor, with 4 adjustable vents, in addition to the 4 vents in the upper part of the roof. Over the entire glass area, demisting and defrosting is particularly effective. For applications with front implements, the high-visibility roof is also available which, in addition to ensuring complete visibility of the extremity of the loader, ensures improved distribution of air in the cab.

Dorado comfort means, above all, utmost safety

Comfort for Dorado also means utmost safety. The Dorado incorporates an integral hydrostatic braking system on all four wheels, implemented with wet disc brakes, also on two-wheel drive versions. The system ensures safe and effective stopping of the tractor at high speed and with heavy loads. The soft and light hydrostatic control requires only minimal pedal pressure. Finally, for total safety even when at rest on sloping ground, the Dorado has a completely independent parking brake, using wet discs to lock the transmission. The SAME Dorado is a revolutionary tractor concept, versatile and fully adaptable to the needs of those who use it. The ideal answer for those seeking a reliable and versatile partner.

Dorado Classic

The Dorado range has been further extended in the medium-low power segment with a simple, reliable and economical tractor such as the Dorado Classic. This tractor plays a leading role, not only for small farms as the main working tractor, but also in medium-sized ones to complement the larger models. This extraordinary versatility is what makes Dorado tractors ideal all-rounders for any task on the farm.

Constant adherence and safety

Even in hilly and very challenging terrain conditions, SAME Dorado Classic tractors keep on working with sure-footed safety. The sufficient ground clearance, correct weight distribution and effective front-wheel drive (engaged via a lever on the left side of the seat), with wet disc brakes, ensure productivity and short stopping distances, even with heavy mounted implements. In addition to 4-wheel braking, the differential lock (100% front and rear) ensures maximum traction even in the most adverse conditions. The hydrostatic steering has a completely independent pump, capable of ensuring light steering even at low engine speeds.
