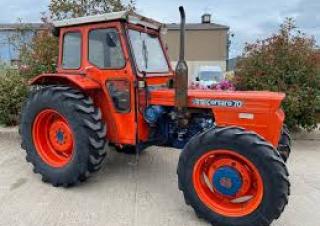

Corsaro 70 SAME Corsaro 70 Specifications & Technical Data (1972—1980)

Engine power: 51kW – Back tyres: 14.9/13-30 – Front tyres: 9.5/9-24 – Transport length: 3.92m – Transport width: 1.87m – Transport height: 2.39m

4WD Tractors SAME Corsaro 70

Technical specs - Corsaro 70 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
51 kW
Back tyres
14.9/13-30
Front tyres
9.5/9-24
Transport length
3.92 m
Transport width
1.87 m
Transport height
2.39 m
Travel speed
23.3 km/h
Transmission
8/4
Transmission type
m
Weight
2.93 t
three point category
2
Engine manuf.
SAME
Engine type
984 P
Displacement
3.6 l
Cylinder bore x stroke
98x120 mm

More technical details, like: model series, control unit, steering, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

SAME Corsaro 70 FAQ

When was the SAME Corsaro 70 manufactured?

The SAME Corsaro 70 was manufactured from 1972 to 1980.

What is the weight of the SAME Corsaro 70?

The SAME Corsaro 70 has a weight of 2.93 tonnes.

What are the physical transport dimensions of the SAME Corsaro 70?

The SAME Corsaro 70 has a transport length of 3.92 meters, a transport width of 1.87 meters, and a transport height of 2.39 meters.

What is the engine power of the SAME Corsaro 70?

The SAME Corsaro 70 has an engine power of 51 kW.

What is the travel speed of the SAME Corsaro 70?

The SAME Corsaro 70 has a travel speed of 23.3 km/h.

What type of transmission does the SAME Corsaro 70 have?

The SAME Corsaro 70 is equipped with a mechanical transmission.

What are the wheel and tyre specifications of the SAME Corsaro 70?

The SAME Corsaro 70 is equipped with front tyres sized 9.5/9-24 and back tyres sized 14.9/13-30.

What is the three-point hitch category of the SAME Corsaro 70?

The SAME Corsaro 70 has a category 2 three-point hitch.

How much is a SAME Corsaro 70 4WD Tractor (1972u20131980) worth?

The residual value of the SAME Corsaro 70 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
